M45 Position Linéaire et Force

LINEAR POSITION AND FORCE - M45

SYSTEMES INNOVANTS

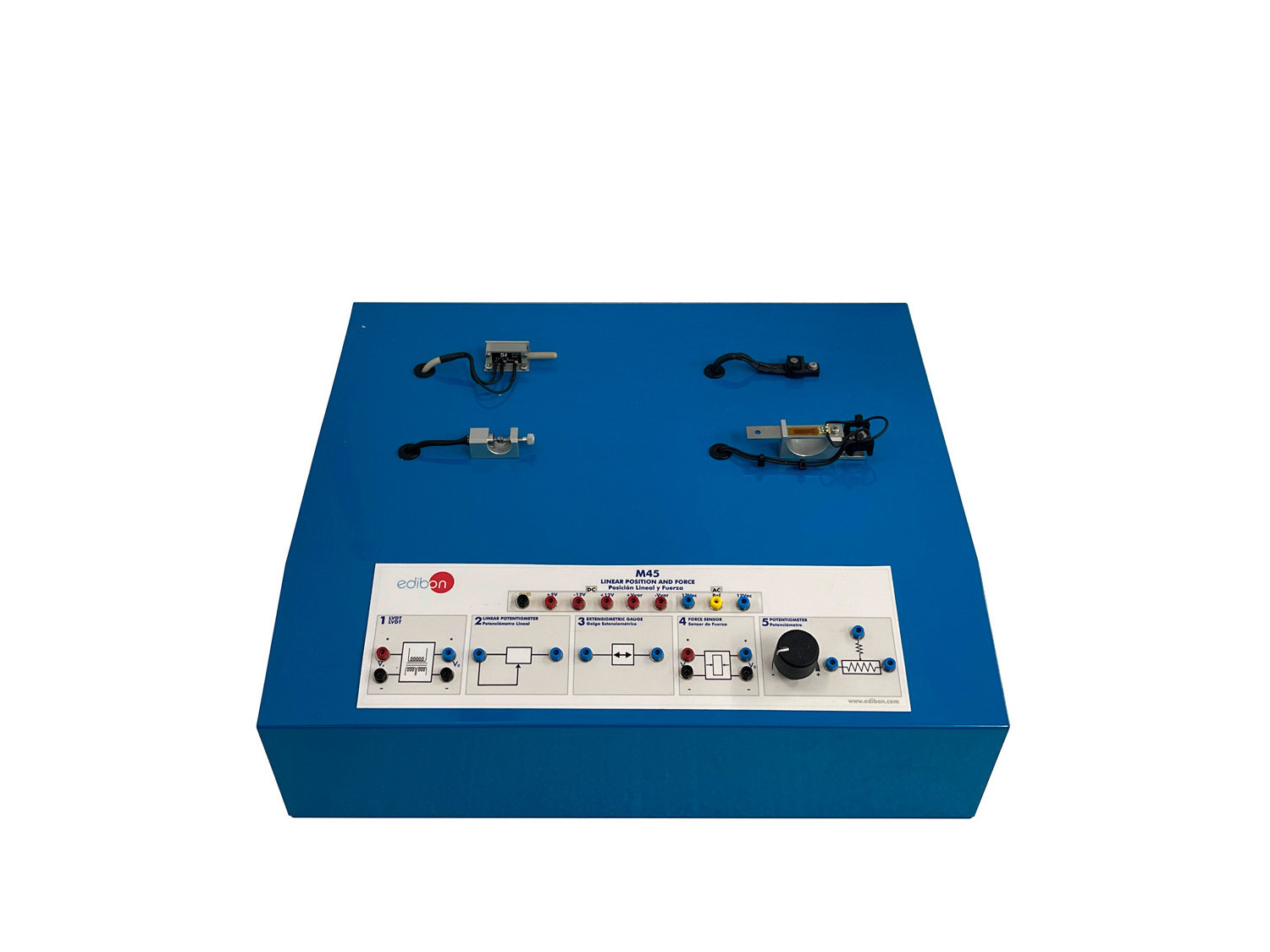

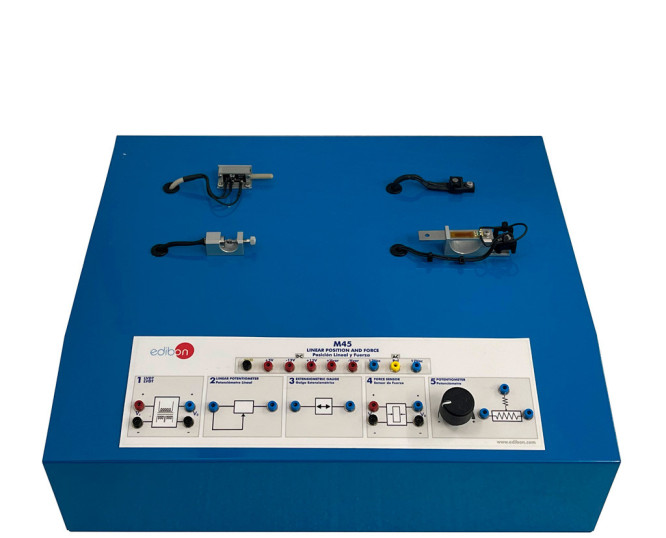

With Linear Position and Force Unit, "M45", designed by EDIBON, it is possible to study the use and applications of transducers, sensors and measurement systems. That is to say, it shows the techniques to measure several physical magnitudes, such as position, displacement, force, etc., using linear position transducers. This unit allows to perform different practices related to linear position and force sensors.

Voir description générale

NOUVELLES LIÉES

Description Générale

Linear Variable Displacement Transducers (LVDT) provide a certain amount of voltage output relative to the parameters being measured, for example force, for signal conditioning.

With Linear Position and Force Unit, "M45", designed by EDIBON, it is possible to study the use and applications of transducers, sensors and measurement systems. That is to say, it shows the techniques to measure several physical magnitudes, such as position, displacement, force, etc., using linear position transducers. This unit allows to perform different practices related to linear position and force sensors.

Des exercices et pratiques guidées

EXERCICES GUIDÉS INCLUS DANS LE MANUEL

  1. Force sensor.
  2. Linear position sensor.
  3. Displacement measurement by LVDT.
  4. Strain measurement by strain gauges.
  5. Potentiometer.

PLUS D'EXERCICES PRATIQUES À EFFECTUER AVEC CETTE ÉQUIPEMENT

  1. Several other exercises can be done and designed by the user.
