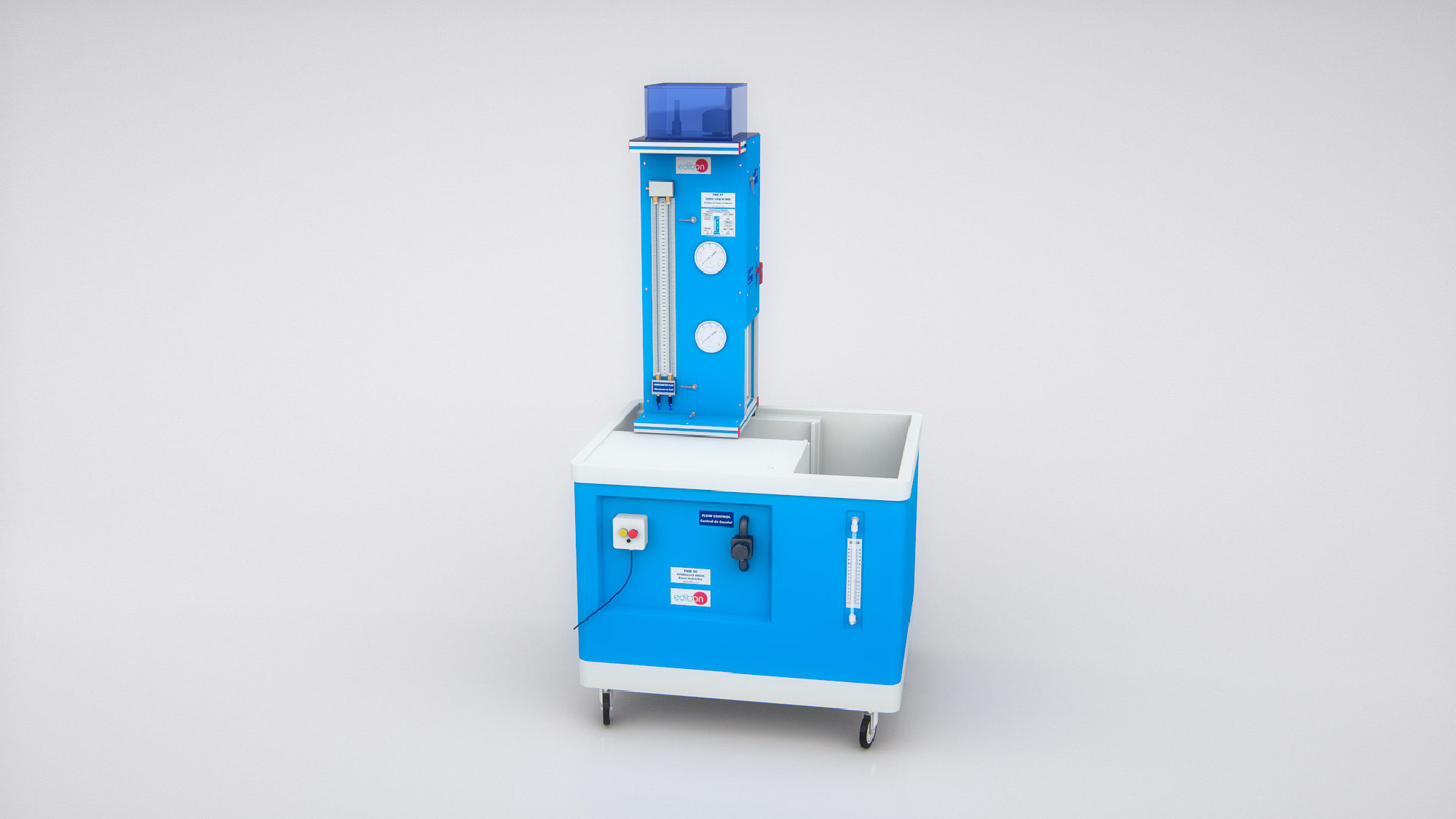

FME07 Unit with service unit FME00

ENERGY LOSSES IN PIPES - FME07
ENERGY LOSSES IN PIPES - FME07

SYSTEMES INNOVANTS

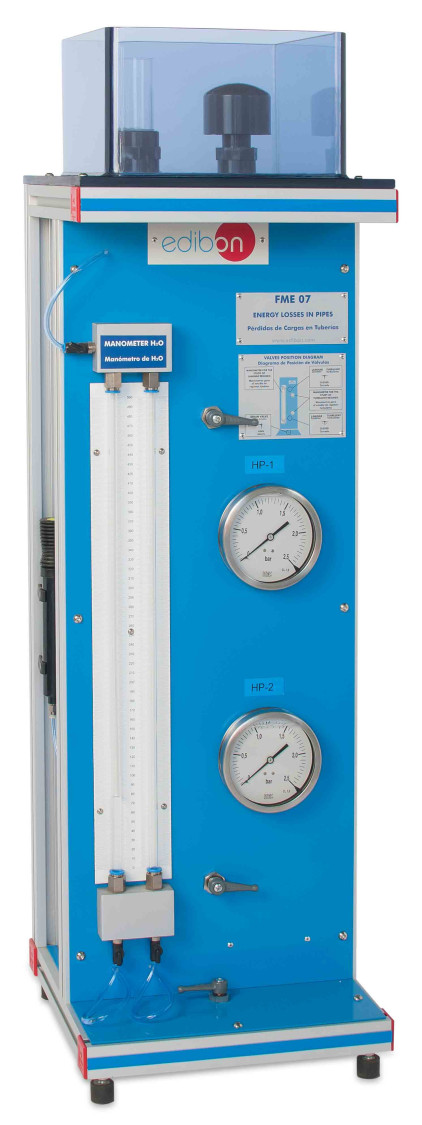

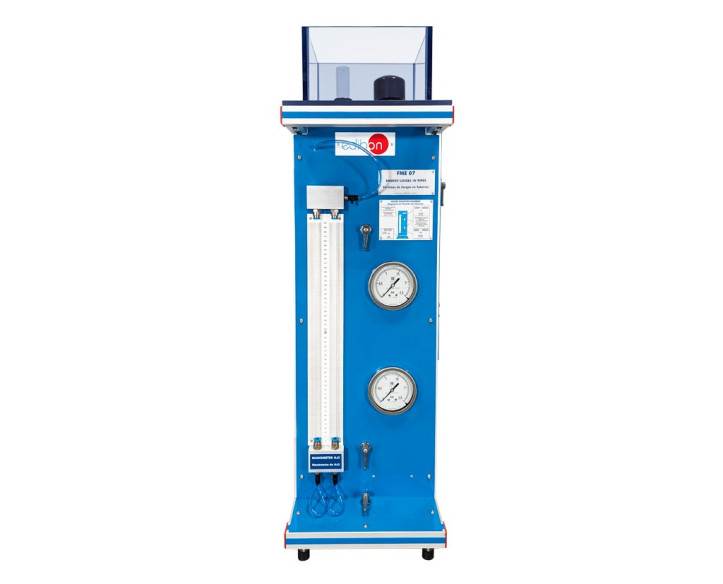

With the Energy Losses in Pipes, "FME07", designed by EDIBON, the user will be able to measure the head losses generated in a pipeline for different flow rates in both laminar and turbulent regimes.

Voir description générale

NOUVELLES LIÉES

Description Générale

With the Energy Losses in Pipes, "FME07", designed by EDIBON, the user will be able to measure the head losses generated in a pipeline for different flow rates in both laminar and turbulent regimes.

The unit consists of the following elements, used in combination with the Hydraulics Bench (FME00) or the Basic Hydraulic Feed System (FME00/B):

  • Pipe with quick connector to be coupled to the water outlet’s mouthpiece at the Hydraulics Bench (FME00) or the Basic Hydraulic Feed System (FME00/B).
  • 6 mm external/4 mm inner diameter metallic test pipe.
  • One water column differential manometer.
  • Constant height tank.
  • Two Bourdon type manometers.

Des exercices et pratiques guidées

EXERCICES GUIDÉS INCLUS DANS LE MANUEL

  1. Energy loss in pipes for a turbulent regime.
  2. Determination of the energy loss in a turbulent regime.
  3. Determination of the number of Reynolds for a turbulent regime.
  4. Energy loss in pipes for a laminar regimen.
  5. Determination of the energy loss factor f for a pipe in laminar regime.
  6. Determination of Reynolds number for the laminar regime.
  7. Determination of the kinematic viscosity of water.
