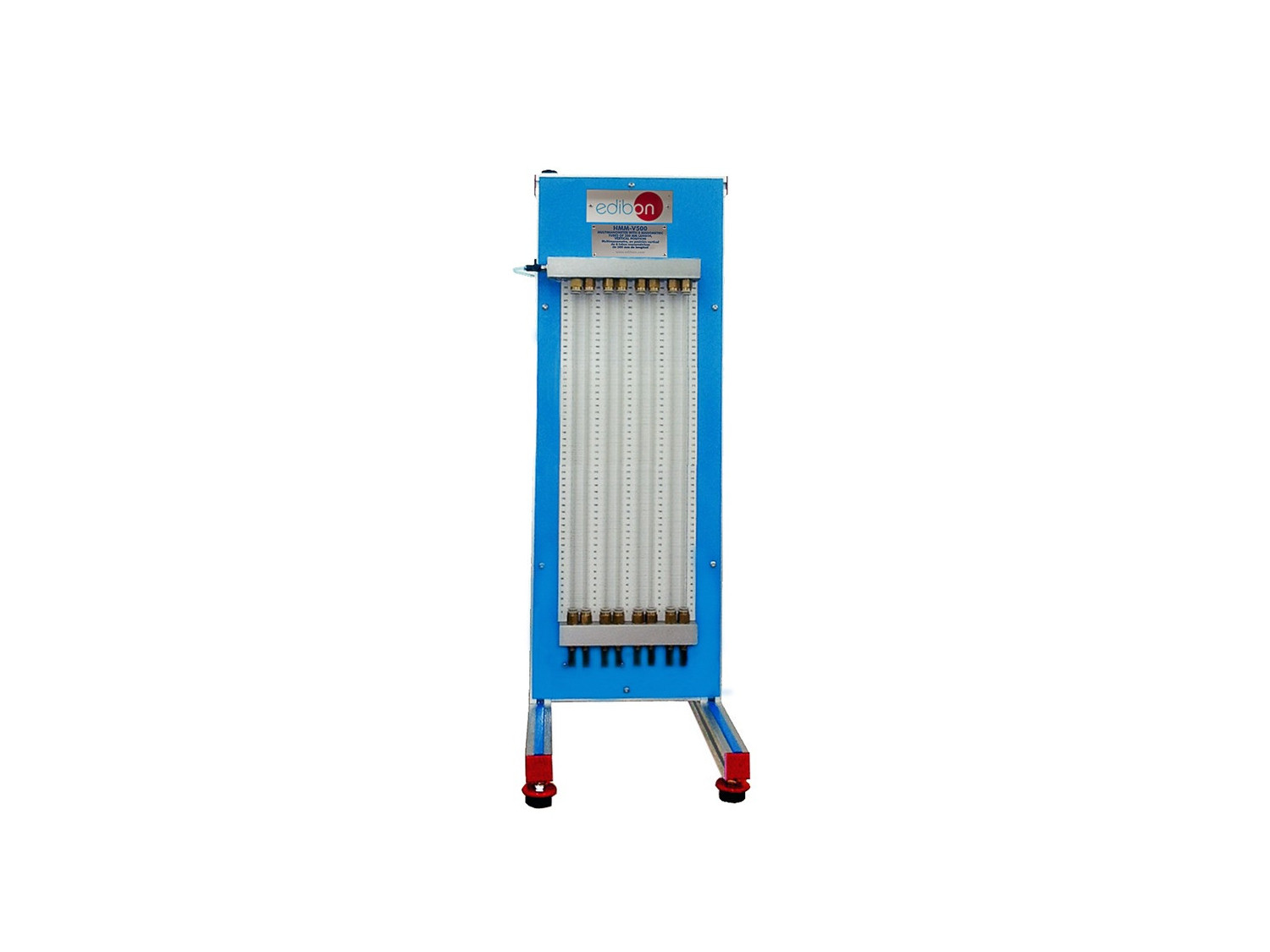

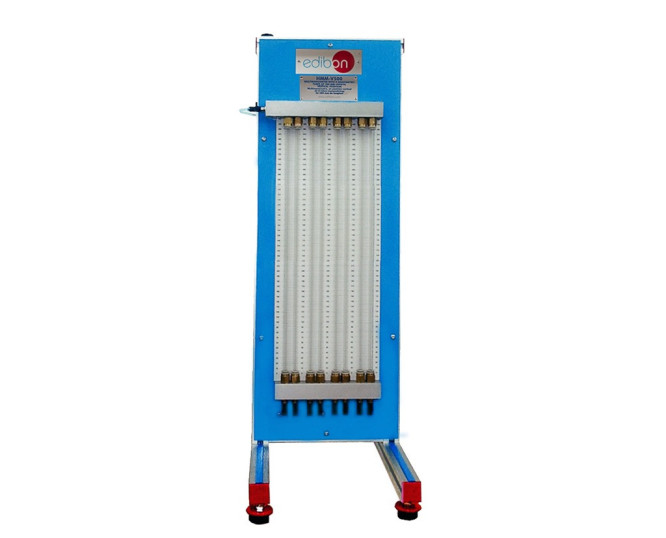

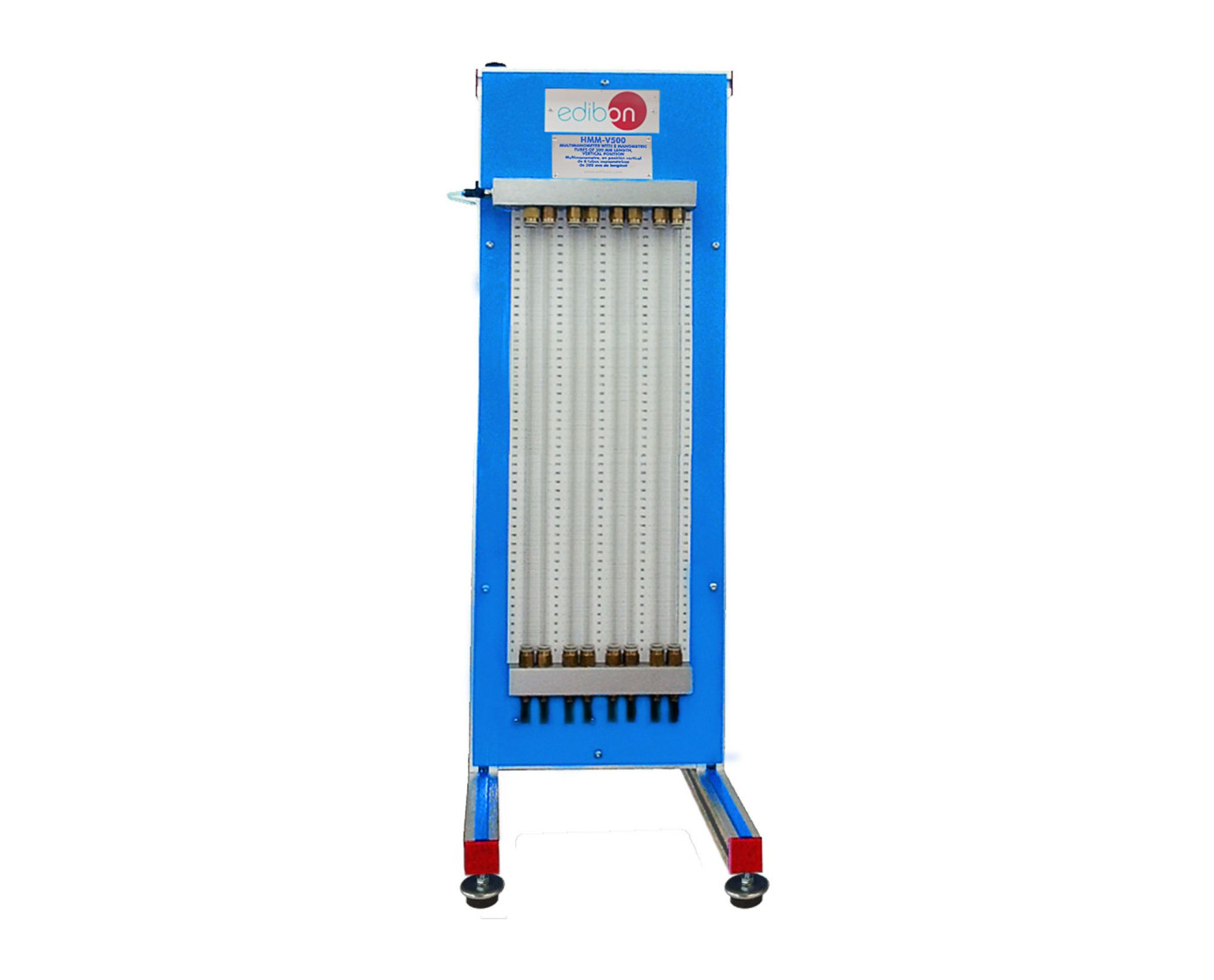

HMM-V500 Multimanomètre, en position verticale, à 8 tubes manométriques de 500 mm de longueur

MULTIMANOMETER WITH 8 MANOMETRIC TUBES OF 500 MM LENGTH, VERTICAL POSITION - HMM-V500

SYSTEMES INNOVANTS

One type of gauge is a U-shaped gauge, which balances the unknown pressure with a known pressure. The pressure is determined by measuring the difference in liquid level of the two branches. Most of these gauges can be used as open gauges or as differential gauges, when they indicate the difference between two different pressures from the atmospheric one.

Voir description générale

NOUVELLES LIÉES

Description Générale

One type of gauge is a U-shaped gauge, which balances the unknown pressure with a known pressure. The pressure is determined by measuring the difference in liquid level of the two branches. Most of these gauges can be used as open gauges or as differential gauges, when they indicate the difference between two different pressures from the atmospheric one.

  • Vertical position.
  • Eight manometric tubes, length: 500 mm.
  • Tubes inner diameter: 8mm, to avoid bubbles.
  • Air pump for pressurization.
  • Eight points for differential pressure measurement, with key.
  • Common collector.
  • Non-return valve.
  • Drain valve.
