AEL-AD9B Application de Contrôle de Chauffage basique

BASIC HEATING CONTROL APPLICATION - AEL-AD9B

SYSTEMES INNOVANTS

The Basic Heating Control Application," AEL-AD9B", ,has been designed by Edibon to study how a heating control application works.

Voir description générale

NOUVELLES LIÉES

Description Générale

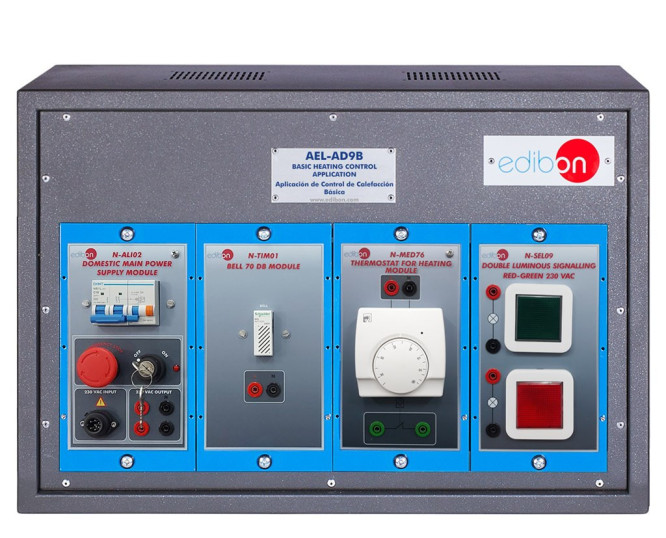

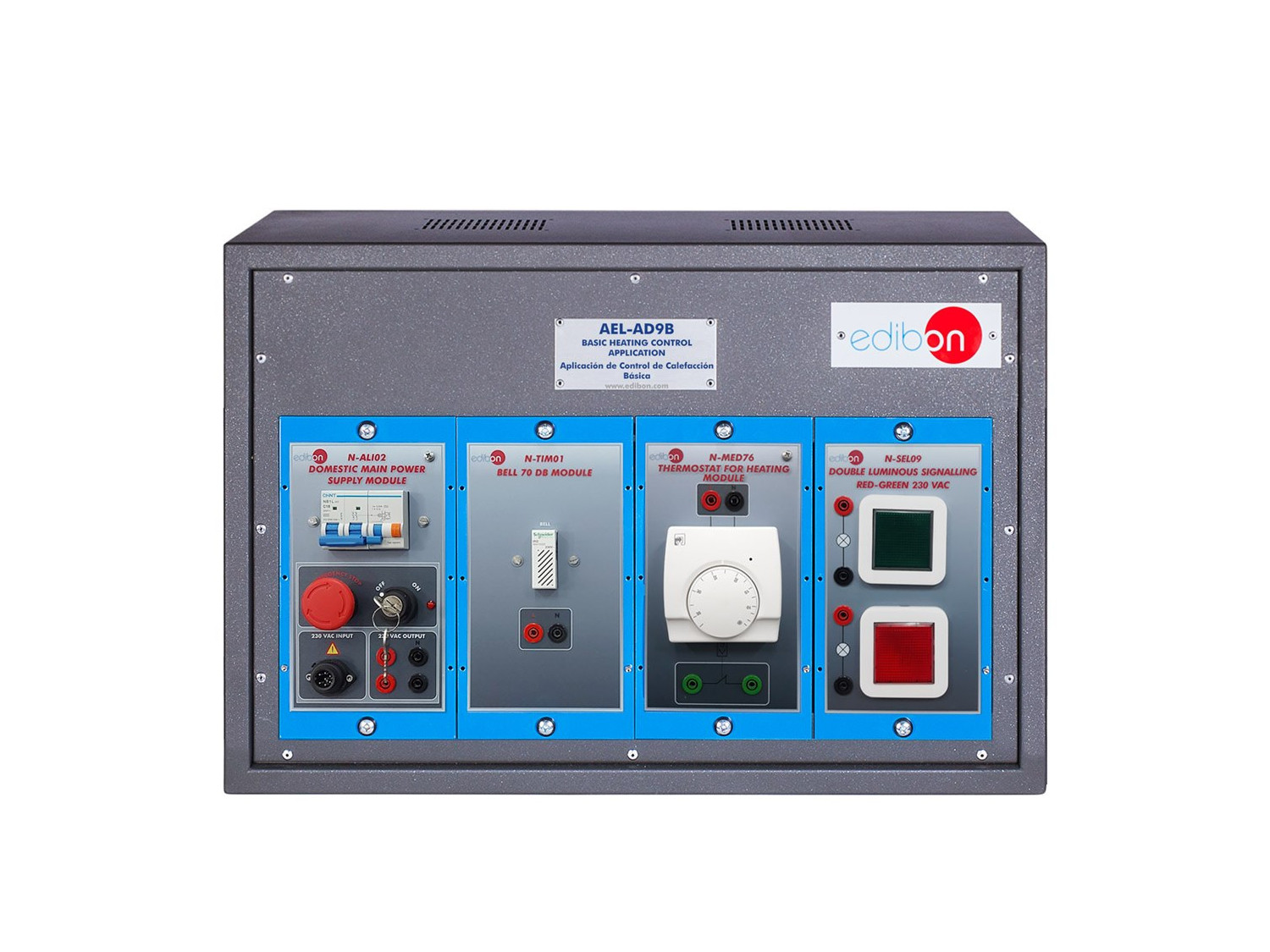

The Basic Heating Control Application," AEL-AD9B", has been designed by Edibon to study how a heating control application works. This application allows the students understand the control logic of a thermostat.

The AEL-AD9B includes lamps and bells in order to simulate the behavior of an air conditioning system.

Des exercices et pratiques guidées

EXERCICES GUIDÉS INCLUS DANS LE MANUEL

  1. Identification of the elements of the domestic main power supply.
  2. Checking the main power supply.
  3. Checking the relay and the thermostat for heating.
  4. Test with several temperatures and green light.
  5. Test with several temperatures and red light.
  6. Test with several temperatures and the bell.
  7. Test with several temperatures, red light and the bell.
  8. Test with several temperatures, green light and the bell.
