12.3.- DRINKING WATER TREATMENT

Drinking water, that is, water fit for human consumption is fundamental in any civilization. In addition, the demand for drinking water is growing due to the increase in population and industrial development.

View more

Drinking water is obtained after being subjected to a series of physical, chemical and biological treatments. Drinking water treatment plants (DWTP) are created thanks to this need for drinking water. The main stages or processes that are carried out in the DWTP are:

    1. Reception and homogenization of the water entering the system.
    2. Pretreatment or screening of coarse material: removal of solids that would cause damage to the installation.
    3. Reaction processes with addition of oxidants and coagulants. This stage removes odors, flavors, pathogens and inorganic matter (minerals) or organic matter (acids, nitrites, etc.). Depending on the contaminants, different techniques are used: aeration, potassium permanganate, chlorine, etc.
    4. The sedimentation removes solids of smaller size still contained in the water, normally using flocculants.
    5. The filtration finishes the clarification process after sedimentation.
    6. Conditioning. A pH adjustment is made, sometimes fluoridation and disinfection to kill pathogens. Iron and manganese are also removed. This step is critical because water must be analyzed after the treatments and it must be verified that water meets the legal requirements for the supply.
    7. Storage and supply of treated or purified water.

Currently, the laws are continually demanding greater quality in the purification of water, so continuous study and research of the processes and technologies for water treatment are necessary.

View Products
DRINKING WATER TREATMENT UNITS
Showing 1-16 of 16 item(s)
COMPUTER CONTROLLED FLOCCULATION TEST UNIT - PEFC
  • PEFC
Available
13.3.- WASTEWATER TREATMENT
PEFC

Computer Controlled Flocculation Test Unit

The Computer Controlled Flocculation Test Unit “PEFC” shows the removal of dissolved substances by coagulation and flocculation.It has 6 beakers where water to be tested is poured. Each one has one adjustable speed paddle stirrer.The unit is...
FLOCCULATION TEST UNIT - PEF
  • PEF
Available
13.3.- WASTEWATER TREATMENT
PEF

Flocculation Test Unit

The Flocculation Test Unit “PEF” shows the removal of dissolved substances by coagulation and flocculation.It has 6 beakers where water to be tested is poured. Each one has one adjustable speed paddle stirrer.The unit is illuminated from the base...
COMPUTER CONTROLLED AERATION UNIT - PEAIC
  • PEAIC
Available
13.3.- WASTEWATER TREATMENT
PEAIC

Computer Controlled Aeration Unit

The Computer Controlled Aeration Unit, “PEAIC”, allows the study of the oxygen transfer characteristics of diffused air systems and the physical and chemical parameters which influence oxygenation capacity and demonstrates the water aeration...
AERATION UNIT - PEAI
  • PEAI
Available
13.3.- WASTEWATER TREATMENT
PEAI

Aeration Unit

The Aeration Unit, “PEAI”, allows the study of the oxygen transfer characteristics of diffused air systems and the physical and chemical parameters which influence oxygenation capacity and demonstrates the water aeration process which, mainly,...
COMPUTER CONTROLLED DEEP BED FILTER UNIT - EFLPC
  • EFLPC
Available
11.1.11.- FILTRATION, SEDIMENTATION AND MIXING
EFLPC

Computer Controlled Deep Bed Filter Unit

The Computer Controlled Deep Bed Filter Unit, "EFLPC", allows us to filter a fluid in order to eliminateparticles in suspension, to have it in more adequate conditions for its subsequent use or consumption.The pump takes raw water from one of the...
DEEP BED FILTER UNIT - EFLP
  • EFLP
Available
11.1.11.- FILTRATION, SEDIMENTATION AND MIXING
EFLP

Deep Bed Filter Unit

The Deep Bed Filter Unit, "EFLP", allows us to filter a fluid in order to eliminate particles in suspension, to have it in more adequateconditions for its subsequent use or consumption.The pump takes raw water from one of the reservoirs of the...
ION EXCHANGE UNIT - EII
  • EII
Available
11.1.9.- ION EXCHANGE AND CORROSION
EII

Ion Exchange Unit

The Ion Exchange Unit, “EII”, is a self-contained unit composed by a panel, where two transparent columns are situated in order to put anionic and cationic resins, and also a spare column and a pump, which supplies the efficient from the tanks...
COMPUTER CONTROLLED WATER QUALITY CONTROL UNIT - PCCAC
  • PCCAC
Available
13.3.- WASTEWATER TREATMENT
PCCAC

Computer Controlled Water Quality Control Unit

Water is impelled by a pump from a supply tank towards a first transparent tank equipped with a stirrer and a conductivity sensor.Conductivity is regulated in this tank by the addition of diluted caustic soda impelled by a computer controlled...

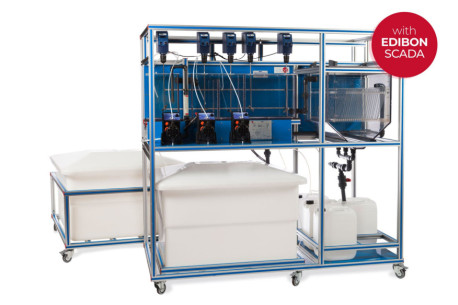

SEDIMENTATION, PRECIPITATION AND FLOCCULATION UNIT - SPFB
  • SPFB
Available
13.3.- WASTEWATER TREATMENT
SPFB

Sedimentation, Precipitation and Flocculation Unit

The Sedimentation, Precipitation and Flocculation Unit, "SPFB", has been designed by EDIBON to study the parameters that affect the physicochemical treatment of wastewater for purification. The objective of the unit is to reduce colloidal and...
COMPUTER CONTROLLED REVERSE OSMOSIS/ULTRAFILTRATION UNIT - ROUC
  • ROUC
Available
11.1.11.- FILTRATION, SEDIMENTATION AND MIXING
ROUC

Computer Controlled Reverse Osmosis/Ultrafiltration Unit

The Computer Controlled Reverse Osmosis/Ultrafiltration Unit, "ROUC", performs a tangential flow filtration process, which is a system that prevents the formation of impurities sediments that reduces its capacity.Two variable of the effluent must...
COMPUTER CONTROLLED ADSORPTION UNIT - PEAC
  • PEAC
Available
11.1.8.- ABSORPTION AND ADSORPTION
PEAC

Computer Controlled Adsorption Unit

The Computer Controlled Adsorption Unit, "PEAC", demonstrates the removal of substances dissolved by adsorption.A computer controlled pump impels raw water (treated) from a supply tank to two adsorbers filled with activated carbon. A flow...
COMPUTER CONTROLLED DISSOLVED AIR FLOTATION UNIT - PFADC
  • PFADC
Available
13.3.- WASTEWATER TREATMENT
PFADC

Computer Controlled Dissolved Air Flotation Unit

The Computer Controlled Dissolved Air Flotation Unit, "PFADC", has been designed to study the flotation treatment process. For that purpose, raw water with different chemical products will be treated. Flotation is achieved when a fluid with...
COMPUTER CONTROLLED BIOFILM PROCESS UNIT - PPBC
  • PPBC
Available
13.3.- WASTEWATER TREATMENT
PPBC

Computer Controlled Biofilm Process Unit

The Computer Controlled Biofilm Process Unit, "PPBC", has been designed to study the operation of a trickling filter, which removes microorganisms and filters contaminated water. The unit simulates the treatment given to water in a wastewater...
COMPUTER CONTROLLED WATER TREATMENT PLANT 1 - PPTAC/1
  • PPTAC/1
Available
13.3.- WASTEWATER TREATMENT
PPTAC/1

Computer Controlled Water Treatment Plant 1

The Computer Controlled Water Treatment Plant 1, "PPTAC/1", allows to study the main principle of the critical operations in the water treatment.These operations are: depth filtration, adsorption and ion exchange.The general objective of the...

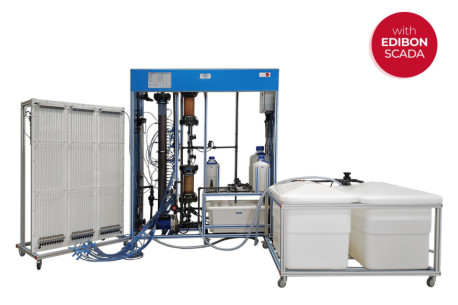

COMPUTER CONTROLLED WATER TREATMENT PLANT 2 - PPTAC/2
  • PPTAC/2
Available
13.3.- WASTEWATER TREATMENT
PPTAC/2

Computer Controlled Water Treatment Plant 2

The Computer Controlled Water Treatment Plant 2, "PPTAC/2", allows to study the main principle of the basic operations in the watertreatment.These operations are: depth filtration and ion exchange.The general objective of the exercises is to...
