N-EM-SBAR Système de Pompe pour Eau Sale

DIRTY-WATER PUMP SYSTEM  - N-EM-SBAR

SYSTEMES INNOVANTS

"N-EM-SBAR" represents a dirty-water pump system, which emulates the control of the dirty-water flow using a valve and two pumps that move the dirty-water pipe from a dirty-water tank.

Voir description générale

Description Générale

The "N-EM" are a series of emulators that provide the students the required hardware to emulate the most common automatic systems.

The "N-EM" modules are designed to work with the "AE-PLC" units to obtain the fundamental knowledge of PLC programing, PLC management, etc.

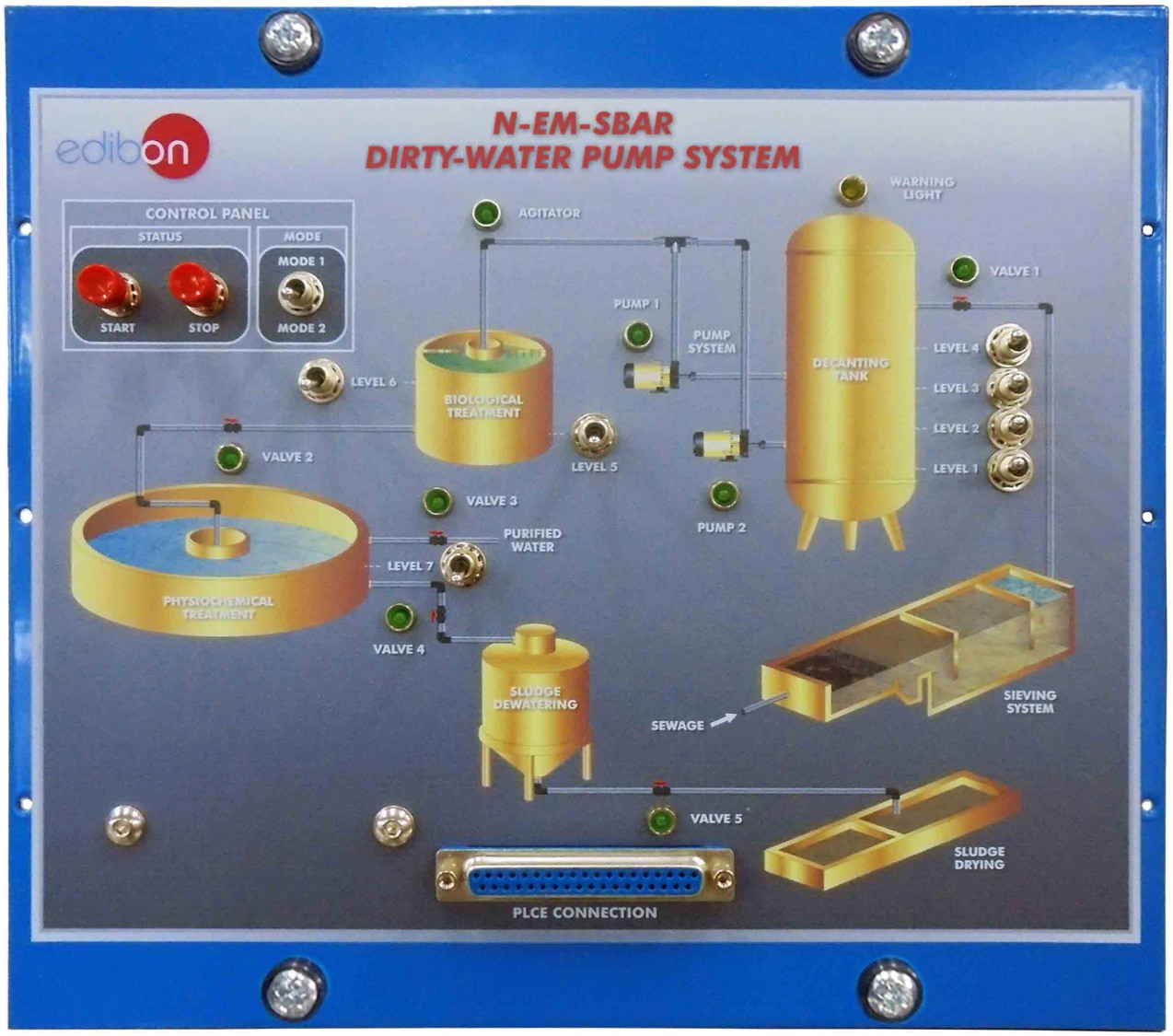

"N-EM-SBAR" represents a dirty-water pump system, which emulates the control of the dirty-water flow using a valve and two pumps that move the dirty-water pipe from a dirty-water tank. The different switches and pushbuttons emulates the level of dirty-water inside the tank, the state of the valves, etc.

Des exercices et pratiques guidées

EXERCICES GUIDÉS INCLUS DANS LE MANUEL

All "N-EM" modules allow to perform the following practical exercises:

  1. Temporization.
  2. Counting.
  3. Sequential counting.
  4. All the practical exercises include the diagrams and the flow charts of the example programs used.
