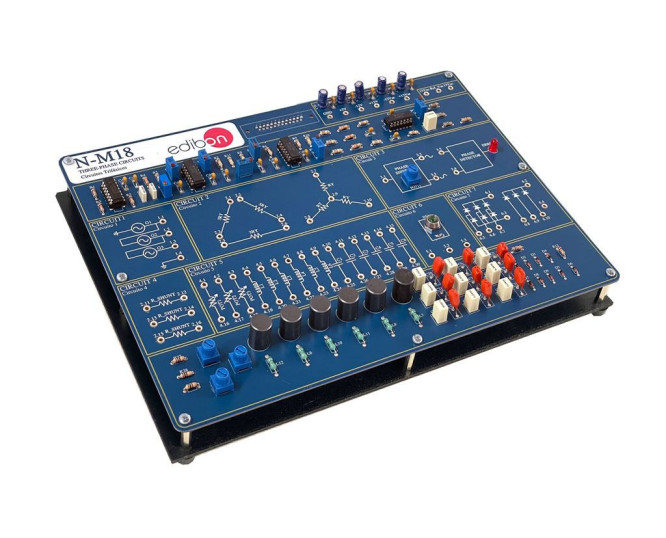

N-M18 Module de Circuits Triphasés

THREE-PHASE CIRCUITS MODULE - N-M18

SYSTEMES INNOVANTS

The Three-phase Circuits Module, "N-M18", designed by EDIBON, is used to study the generation of three-phase systems, load balancing between phases, operation of three-phase rectifiers, etc.

Voir description générale

NOUVELLES LIÉES

Description Générale

Three-phase voltage is essentially a system of three alternating voltages, coupled (all 3 are produced simultaneously in a generator) and 120º out of phase with each other (i.e. one third of the period).

The Three-phase Circuits Module, "N-M18", designed by EDIBON, is used to study the generation of three-phase systems, load balancing between phases, operation of three-phase rectifiers, etc.

In addition, faults can be simulated in most of the circuits under study. The student must investigate what is happening in the circuit and why it is not working properly. These faults simulations can be of several types from damage components to a hypothetical incorrect circuit assembly.

Des exercices et pratiques guidées

EXERCICES GUIDÉS INCLUS DANS LE MANUEL

Generation of a three-phase system:

  1. Checking of the three-phase system.
  2. Calculation of the voltage values.

Three-phase load in star and delta:

  1. Star-delta equivalence.
  2. Decompensation of the star.
  3. Out-phase between voltage and current (reactance).
  4. Measurement of the power factor.
  5. Correction of the power factor.

Synchronism detector:

  1. Out-phase generation between waves.
  2. Detection of out-phase between waves.

Phase-sequence detector:

  1. Waves in direct sequence.
  2. Waves in inverse sequence.

Three-phase rectifier:

  1. Half-wave three-phase rectifier.
  2. Full-wave three-phase rectifier.
Voir plus

PLUS D'EXERCICES PRATIQUES À EFFECTUER AVEC CETTE ÉQUIPEMENT

  1. Several other exercises can be done and designed by the user.
