AEL-EMT-KIT Machines Électriques Configurables et Desmontables Avancées

ADVANCED DISSECTIBLE AND CONFIGURABLE ELECTRICAL MACHINES - AEL-EMT-KIT

SYSTEMES INNOVANTS

The Advanced Dissectable and Configurable Electrical Machines (AEL-EMT-KIT) is a set of configurable electrical machines designed to study the basic principles of electrical machines:

Voir description générale

NOUVELLES LIÉES

Description Générale

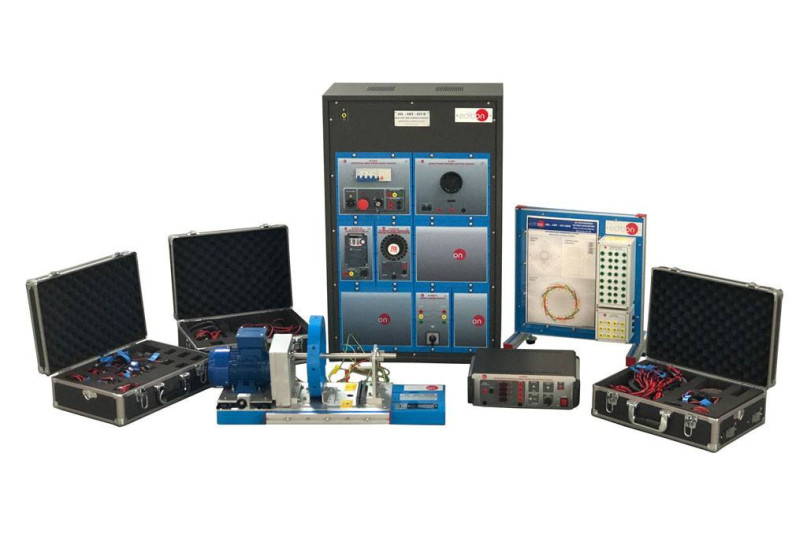

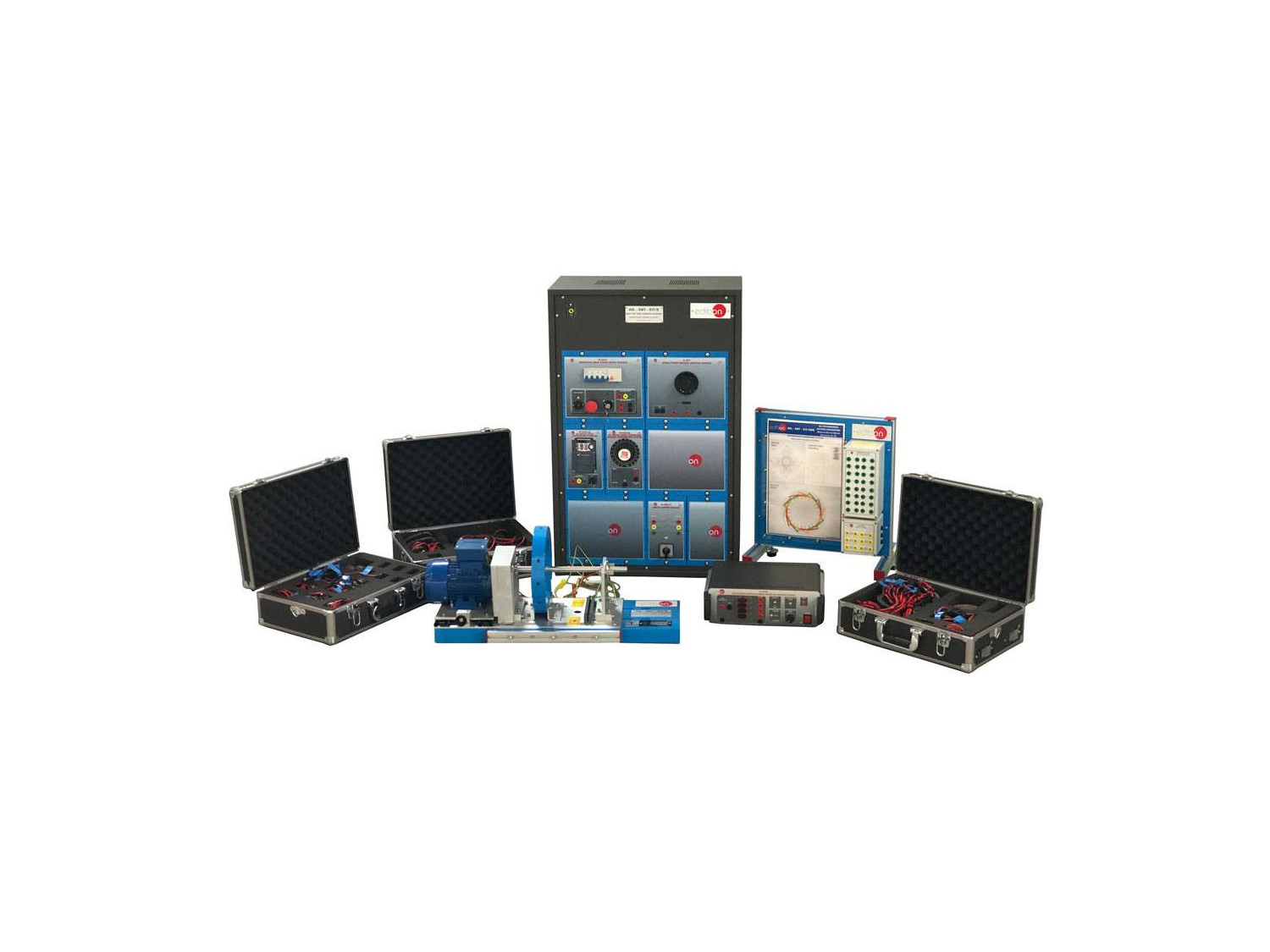

The Advanced Dissectable and Configurable Electrical Machines (AEL-EMT-KIT) is a set of configurable electrical machines designed to study the basic principles of electrical machines:

  • Dissectible mechanical pieces.
  • Assembled and disassembled winding machines and mechanical pieces.
  • Construct and configure from zero and step by step a full range of rotational electrical machines.
  • Tests of rotational magnetic field with a compass.
  • Understand the differences between DC electrical motors, AC electrical motors, Stepper motors, reluctance motors, etc.
  • Different drivers for each type of electrical machines configuration to observe how the electrical machines work.

Analyze possible wiring mistakes with multimeter and analog instrumentation like ammeters, voltmeters, frequency meters, etc.

Using this application the student will clearly observe the components of the machines and how they must be interconnected, both electrically and mechanically.

It consists of mechanical pieces and electrical wirings.

The student will be able to make and test innumerable types of electrical machines.

The different machines have protected rotating parts and use low voltages, besides the machines characteristics are compatible with their equivalent industrial models.

Des exercices et pratiques guidées

PLUS D'EXERCICES PRATIQUES À EFFECTUER AVEC CETTE ÉQUIPEMENT

AEL-EMT-KIT/AS. AC Asynchronous Induction Motors:

  1. Recognition of the mechanical parts of a three-phase induction motor of squirrel cage.
  2. Construction of a three-phase induction motor of squirrel cage (2 pole), step by step.
  3. Construction of a three-phase induction motor of squirrel cage (4 pole), step by step.
  4. Measurement of the starting and running currents.
  5. Complete wiring of the stator wounds according to the electrical machines theory.

AEL-EMT-KIT/DC. DC Motors/Generators.

  1. Recognition of the mechanical parts of DC motors/generators .
  2. Construction of a DC shunt motor (with and without interpoles).
  3. Construction of a DC series motor (with and without interpoles).
  4. Construction of a DC compound motor (with and without interpoles).
  5. Construction of a DC shunt generator (with and without interpoles).
  6. Construction of a DC series generator (with and without interpoles).
  7. Construction of a DC compound generator (with and without interpoles).
  8. Construction of a DC separately excited generator (with and without interpoles).
  9. Complete wiring of all DC motors / generators according to theory.

AEL-EMT-KIT/SMG. AC Synchronous Motors / Generators.

  1. Recognition of the mechanical parts of synchronous motors/generators.
  2. Construction of a three-phase AC synchronous motor (2 pole).
  3. Construction of a three-phase AC synchronous generator (4 pole).
  4. Measurement of the current excitation.
  5. Measurement of the voltage generation in function of the speed of the generator.
  6. Measurement of the voltage generation in function of the current excitation.

AEL-EMT-KIT/MPP. Stepper Motor:

  1. Construction of a stepper motor.
  2. Speed control of the stepper motor.
