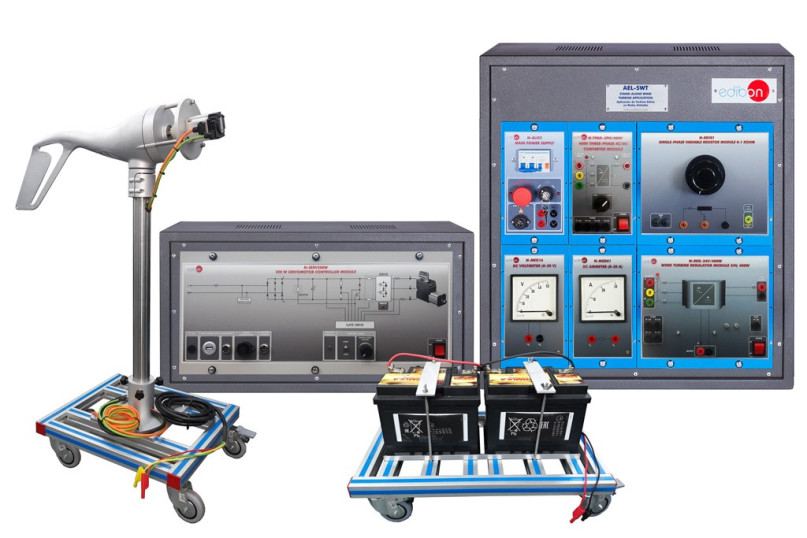

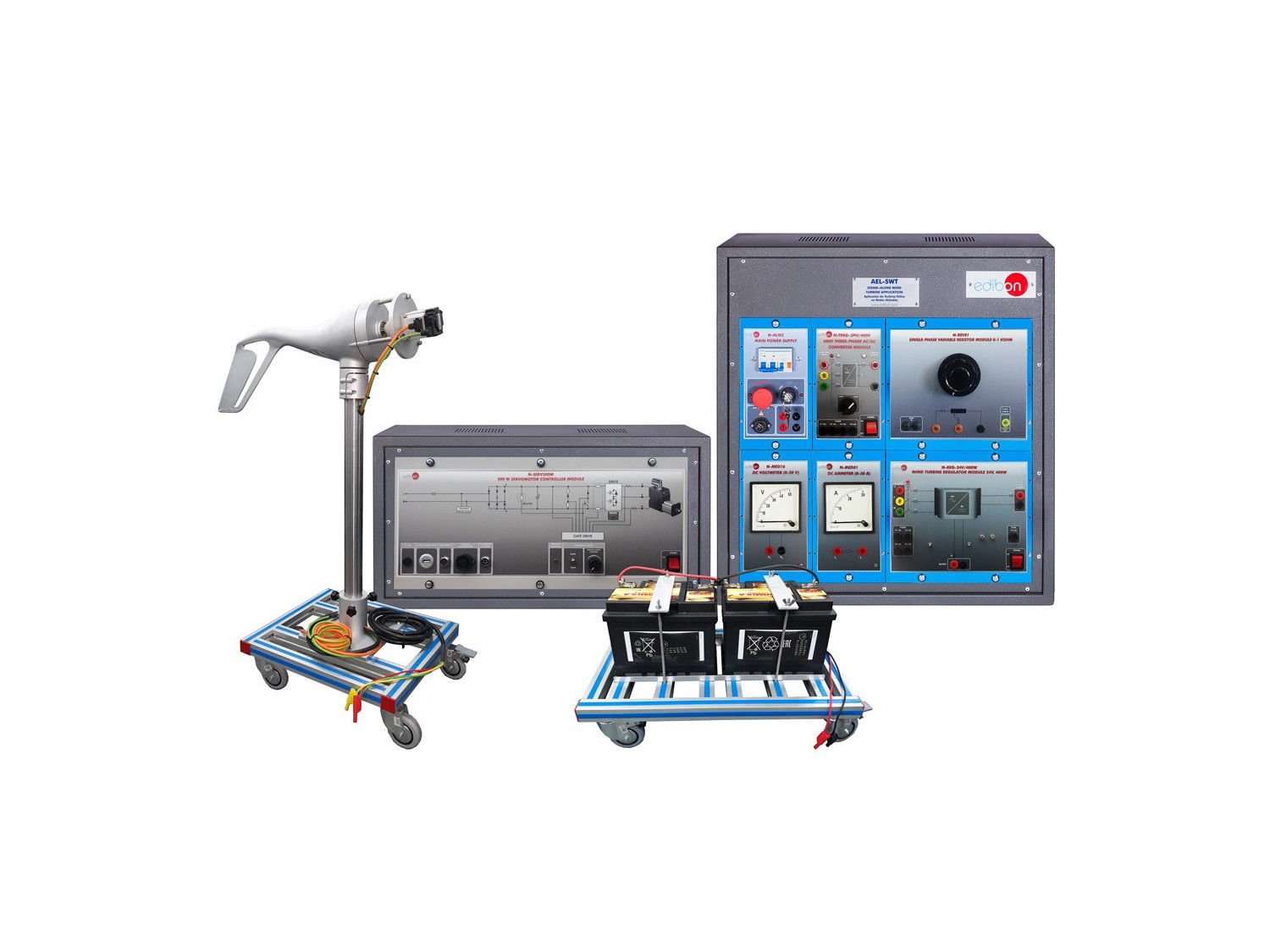

The Stand-Alone Wind Turbine Aplication, "AEL-SWT", has been designed by Edibon for the training at both the theoretical and practicallevels in the field of wind turbines.

Voir description générale

Description Générale

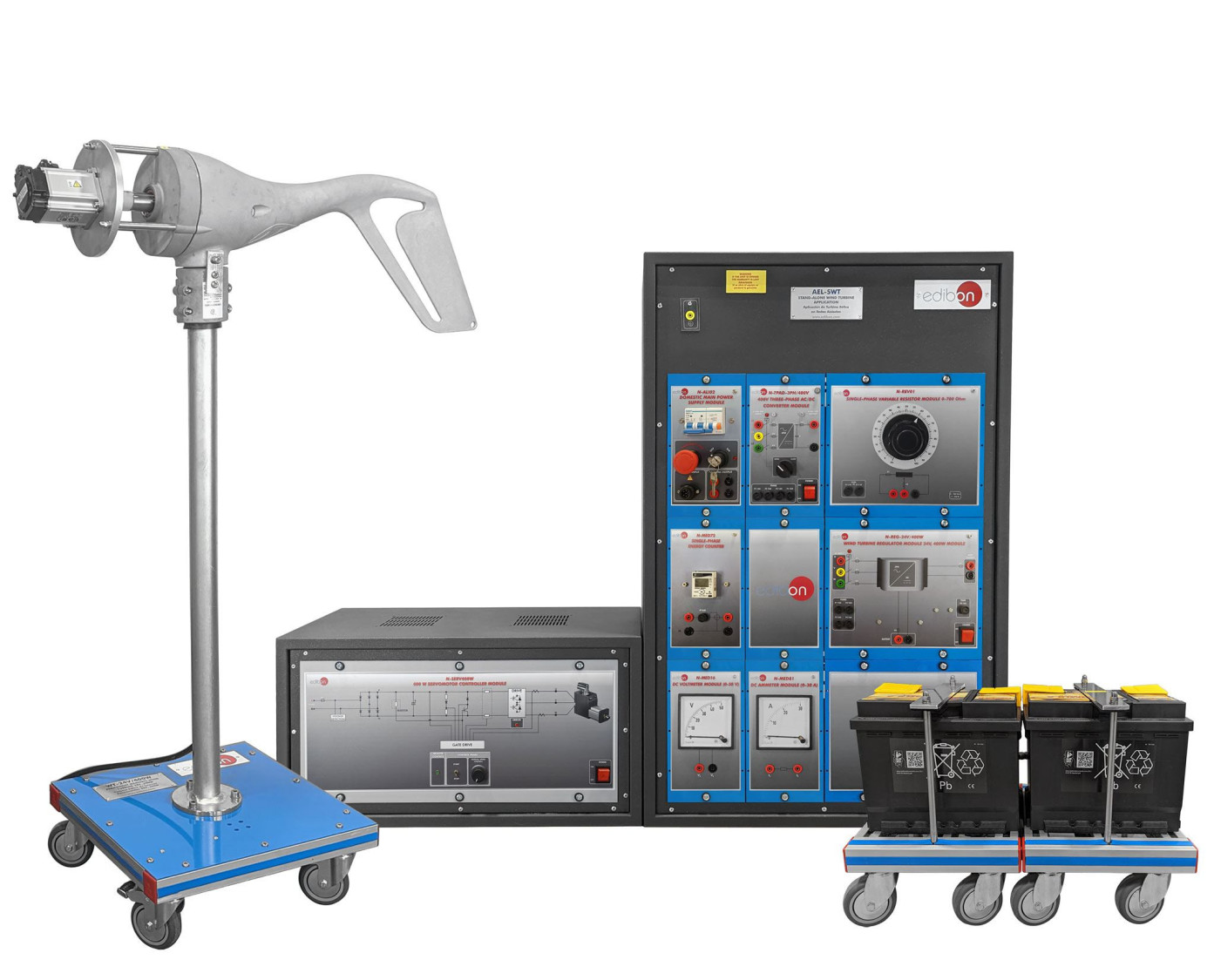

The Stand-Alone Wind Turbine Aplication, "AEL-SWT", has been designed by Edibon for the training at both the theoretical and practicallevels in the field of wind turbines.

The "AEL-SWT" application provides several levels of training to give the user full knowledge and experiences about the most importantprinciples of wind turbines, power generation (stand-alone) and energy storage.

The "AEL-SWT" application includes real industrial devices such as a permanent magnet wind turbine, an AC/DC rectifier, a load regulator,as well as an analog ammeter and voltmeter to perform different measurements in the DC circuit. In addition, this application also includesa servo motor with its controller to regulate the rotation speed of the wind turbine and simulate different wind/generation conditions. Theapplication also includes a variable resistive load to perform different energy consumption.

On the other hand, different modules such as a single-phase inverter and an energy meter are recommended for this application. In thisway, the user can study a complete isolated wind energy installation.

In addition, this application includes a specific manual, which explains at theoretical level the subjects relating to wind turbines, batteriesenergy storage, etc. The thematic of the manual covers basic principles of functioning, control and operation of small scale wind turbinesat different wind speeds, energy storage in batteries, DC and AC power consumption, etc.

Des exercices et pratiques guidées

EXERCICES GUIDÉS INCLUS DANS LE MANUEL

  1. Study of the DC circuit of the permanent magnet wind generator.
  2. Measurement of the no-load voltage of the wind generator asa function of the speed of rotation.
  3. Study of the permanent magnet generator with direct output inalternating current.
  4. Study of the permanent magnet generator with AC to DCrectifier.
  5. Study of the permanent magnet generator with variable load.Measurement of electrical parameters of voltage and current.
  6. Study of the electronic regulator of the wind turbine.
  7. Simulation of different wind conditions.

PLUS D'EXERCICES PRATIQUES À EFFECTUER AVEC CETTE ÉQUIPEMENT

Some possible practices with the required battery:

  1. Measurement of the charge current in the battery.
  2. Energy balance between generated current, charge current andconsumed current.

Some possible practices with the recommended inverter:

  1. Study the connection of the inverter to the direct current circuit.
  2. Study the alternating current circuit of the inverter.
  3. Connecting the resistive load to the alternating current inverter.
  4. Measurement of the different currents in the DC and AC circuit.
