PID TEMPERATURE CONTROL AND REGULATION OF WATER FLOW UNIT - RYC-TAG

INNOVATIVE SYSTEMS

The PID Temperature Control and Regulation of Water Flow Unit, "RYC-TAG", designed by EDIBON, enables the practical study of automatic control systems through the regulation of water temperature by controlling the flow rate in a hot water circuit.

See general description

Expansions

ICAI

Interactive Computer Aided Instruction Software
EMAK

EDIBON Matlab Kit

Laboratories

6TV
 Mechatronics and Automation Laboratory for Technical and Vocational Education
6HE
 Mechatronics and Automation Laboratory for Higher Education
2TV
 Technical and Vocational Education Electronics Laboratory
2HE
 Electronics Laboratory for Higher Education
11PTC
 Petroleum Training Center Laboratory

RELATED NEWS

The future of Process Control: Innovation, training, and the industry 4.0 revolution
The future of Process Control: Innovation, training, and the industry 4.0 revolution
Automation and process control have been fundamental pillars in the evolution of both industry and scientific research. With the advent of Industry 4.0, the integration of new technologies has driven an unprecedented transformation in the way industrial and research systems operate, optimize...
Read more
What is Process Control, and Why is It Essential in Modern Industry?
What is Process Control, and Why is It Essential in Modern Industry?
Today, automation and efficiency are key factors in industrial and scientific development. Process control plays a crucial role in this context by enabling the monitoring, regulation, and optimization of industrial systems and processes, ensuring they operate efficiently, safely, and consistently.
Read more
EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Read more
Completion of the Small Laboratory Equipment Repair Course
Completion of the Small Laboratory Equipment Repair Course
On December 1st, the Repair Course for Small Laboratory Equipment, taught by our engineers at the EDIBON facilities, was completed, lasting 4 days. The attendees, (Laboratory technicians and maintenance of the Rey Juan Carlos University of Madrid) had the opportunity to perform multiple...
Read more
Completion of the Course of Instrumentation, Regulation and Control in Laboratories
Completion of the Course of Instrumentation, Regulation and Control in Laboratories
On October 19th, the Course on Instrumentation, Regulation and Control in Laboratories, taught by our engineers in these facilities, using EDIBON units, was completed and aimed at learning the control of the conditions of a laboratory process. The attendants, (12 laboratory technicians and...
Read more

General Description

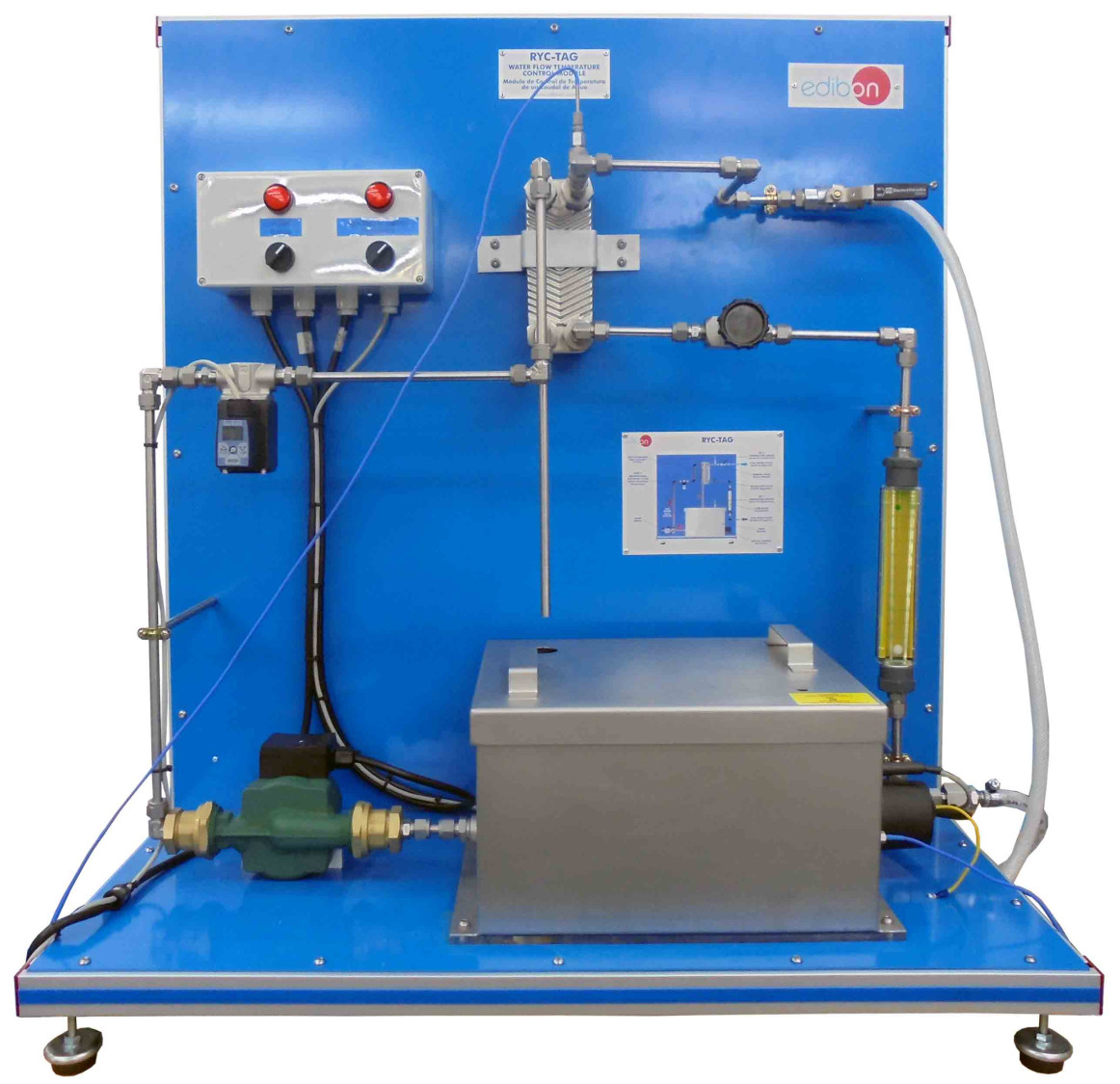

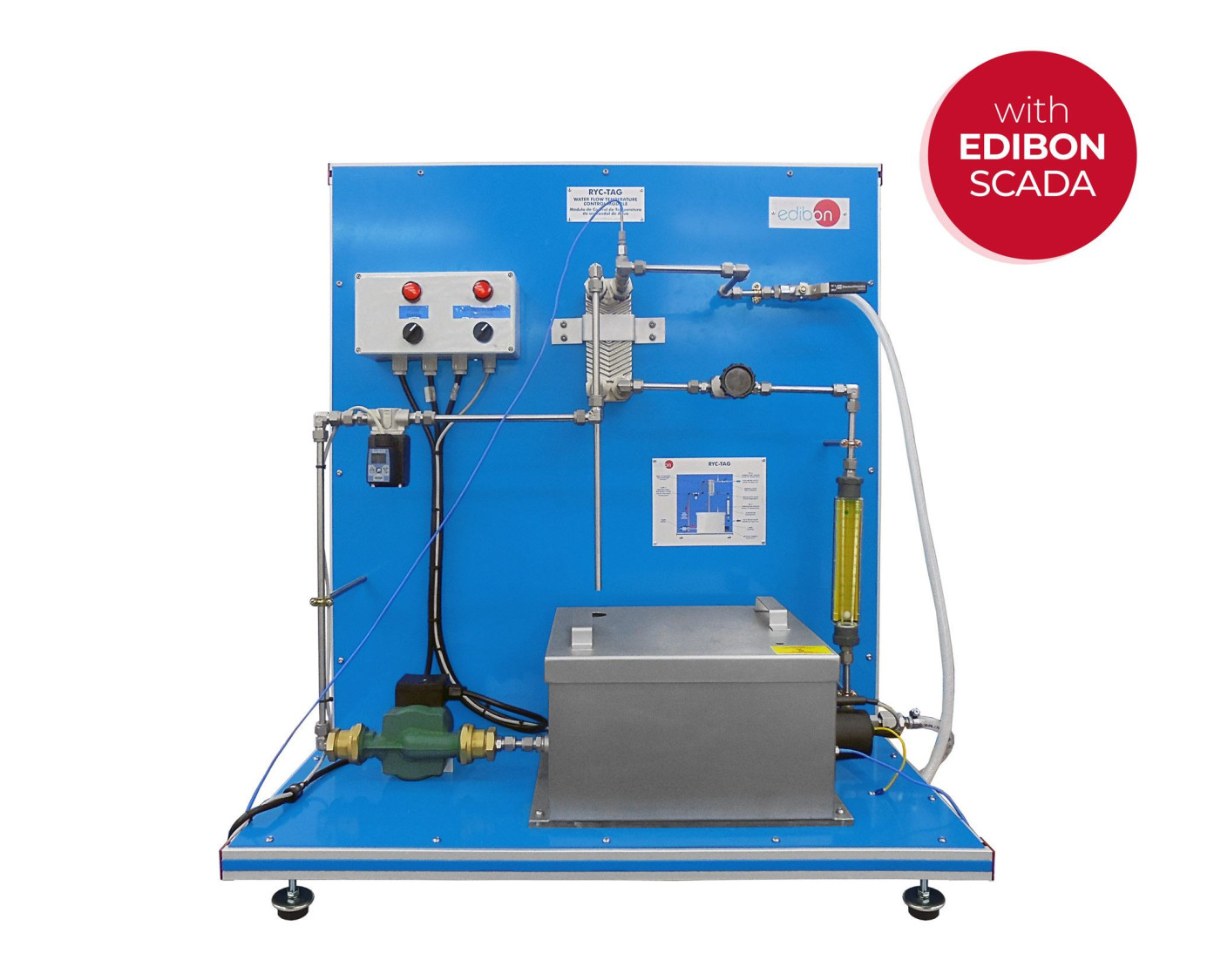

The PID Temperature Control and Regulation of Water Flow Unit, "RYC-TAG", designed by EDIBON, enables the practical study of automatic control systems through the regulation of water temperature by controlling the flow rate in a hot water circuit.
