0651 AUTOMATION AND SYSTEMS. (REGULATION AND CONTROL). Medium Module

The Computer Controlled Coupled Tanks System, "CTAC", consists of four transparent tanks, each with a pressure sensor to measure the water level. The coupling configuration between tanks can be modified by the use of computer controlled solenoid...

Regulation and control theory is divided into two major divisions in, namely, classical and modern. The implementation of classical controller designs as compared to systems designed using modern control theory is easier and these controllers are...

The "RYC-BB" Ball and Beam module has been designed to study a practical control system, through the study of a classical control system, the Ball and Beam Control system.The "RYC-BB" module consists of two main components: the "RYC-BB" apparatus...

The "RYC-C" Flow Rate Control module has been designed to study a practical control system, through the flow rate of a close water circuit.The "RYC-C" module consists of two main components: the "RYC-C" apparatus and the "RYC-C" interface box. The...

The "RYC-CLM" Magnetic Levitation Control module has been designed to study a practical control system.The "RYC-CLM" module consists of two main components: the "RYC-CLM" apparatus and the "RYC-CLM" interface box. The "RYC-CLM" apparatus contains...

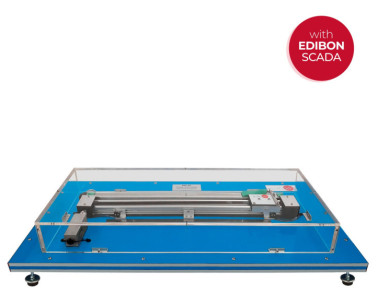

The "RYC-CP" Position Control module has been designed to study a practical control system, through the control of a linear position system.The "RYC-CP" module consists of two main components: the "RYC-CP" apparatus and the "RYC-CP" interface box....

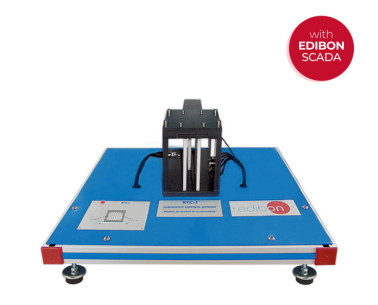

The "RYC-I" Luminosity Control module has been designed to study a practical control system and study different light sensors, through the luminosity control with three different light sensors.The "RYC-I" module consists of two main components:...

The "RYC-N" Level Control module has been designed to study a practical control system, through the control of the water level of a tank.The "RYC-N" module consists of two main components: the "RYC-N" apparatus and the "RYC-N" interface box. The...

The "RYC-P" Pressure Control module has been designed to study a practical control system, through the control of the air pressure level of an air pressure tank.The "RYC-P" module consists of two main components: the "RYC-P" apparatus and the...

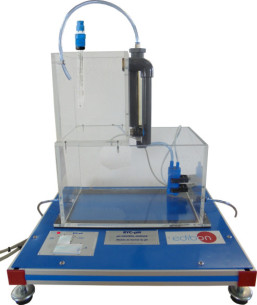

The "RYC-pH" pH Control module has been designed to study a practical control system, through the pH dissolution control in a stirred tank.The "RYC-pH" module consists of two main components: "RYC-pH" apparatus and "RYC-pH" interface box. The...

The "RYC-PI" Inverted Pendulum Control module has been designed to study a practical control system, through the control of a linear position system of movable cart.The "RYC-PI" module consists of two main components: the "RYC-PI" apparatus and...

The "RYC-SM" Servo Motor module has been designed to study a practical control system, through the control of the position and speed of a DC Servo Motor.The "RYC-SM" module consists of two main components: the "RYC-SM" apparatus and the "RYC-SM"...

The "RYC-TAG" Water Flow Temperature Control module has been designed to study a practical control system, through the control of water flow temperature.The "RYC-TAG" module consists of two main components: the "RYC-TAG" apparatus and the...

The "RYC-TAR" Air Flow Temperature Control module has been designed to study a practical control system, through the control of an air flow temperature.The "RYC-TAR" module consists of two main components: the "RYC-TAR" apparatus and the "RYC-TAR"...

The "RYC-TE" Temperature Control module has been designed to study a practical control system, through the control of the water temperature in a tank.The "RYC-TE" module consists of two main components: the "RYC-TE" apparatus and the "RYC-TE"...

The Computer Controlled Process Control Unit for the Study of Pressure (Air), "UCP-P", consists of a compressed air duct whose flow is controlled by a pneumatic valve (the compressed air or gas source is not included). The air is supplied through...
