WIND ENERGY POWER PLANT - PWP-WE

INNOVATIVE SYSTEMS

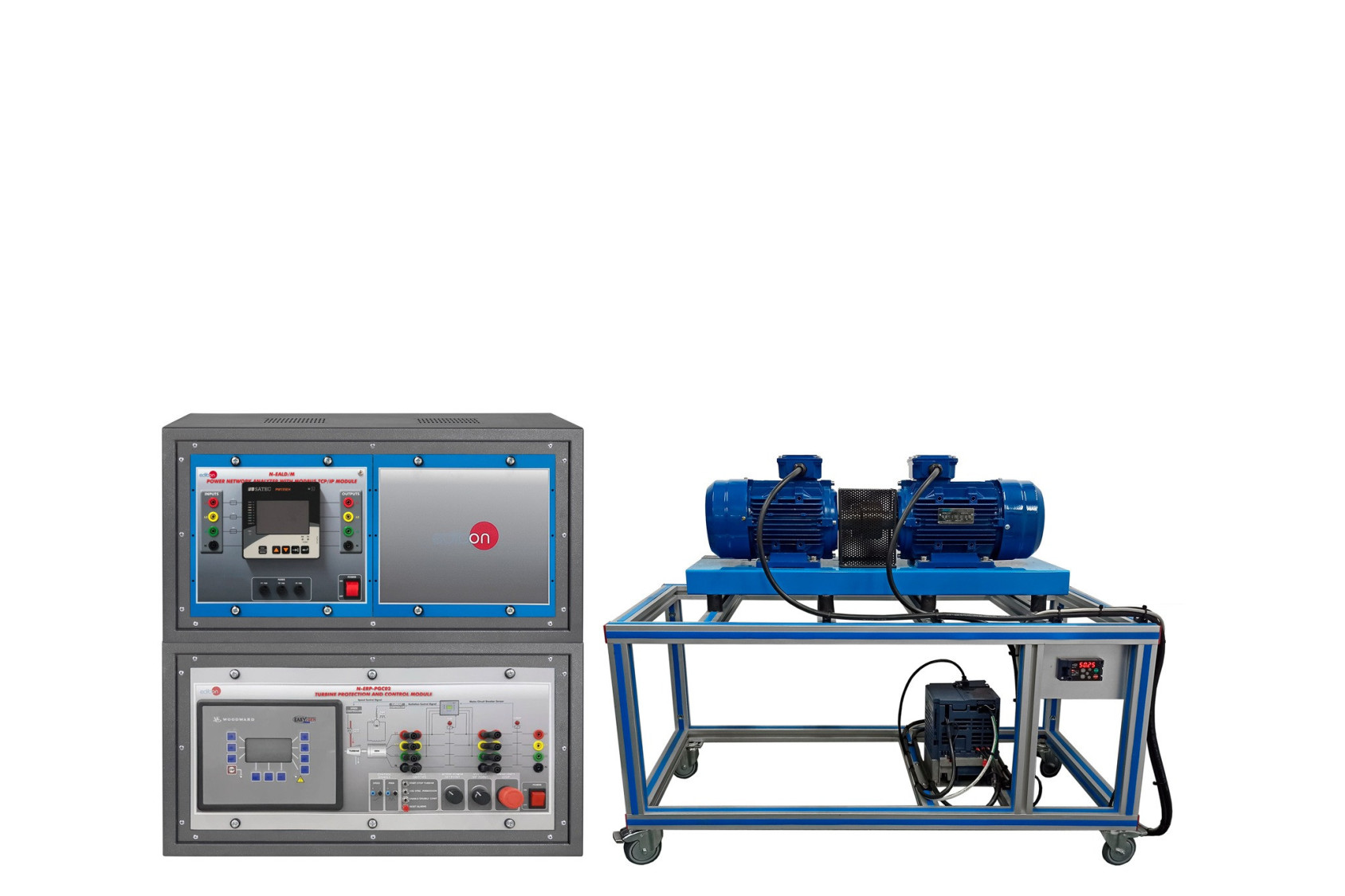

The purpose of this application is the study of wind power plants in the context of micro grids. It consists of an induction turbine generator group whose purpose is to provide energy to the micro grid by making an intelligent energy distribution based on the decisions of the operator (user).

See general description

General Description

The purpose of this application is the study of wind power plants in the context of micro grids. It consists of an induction turbinegenerator group whose purpose is to provide energy to the micro grid by making an intelligent energy distribution based on the decisions of the operator (user).

For this, the application includes a network analyzer to measure in real time the energy produced by the wind power plant. For the control of the turbine-generator group, a digital multifunction controller (AVR and ASC) is included, which will allow an optimal regulation of all its electrical and mechanical parameters.

Among many parameters, it is possible to control the "set point" of active power to automatically select how much power we want to inject into the micro grid. The multifunction controller is of vital importance, since it is the one in charge of managing the distribution of power between the different energy sources.

Exercises and guided practices

MORE PRACTICAL EXERCISES TO BE DONE WITH THE UNIT

  1. Automatic control of the turbine-generator group speed.
  2. Startup of the three-phase induction generator.
  3. Automatic synchronization of the three-phase induction generator with the grid.
  4. Monitoring the electrical parameters of the three-phase induction generator in synchronism with the grid.
  5. Adjustable automatic control of the active power delivered to the grid.
  6. Influence of speed variation on the active power and analysis of the feasible solutions to automate the power factor regulation.
  7. Compensation of the reactive power consumed by the three-phase induction generator by means of capacitor banks.

REQUIRED ELEMENTS

ADDITIONAL RECOMMENDED ELEMENTS
