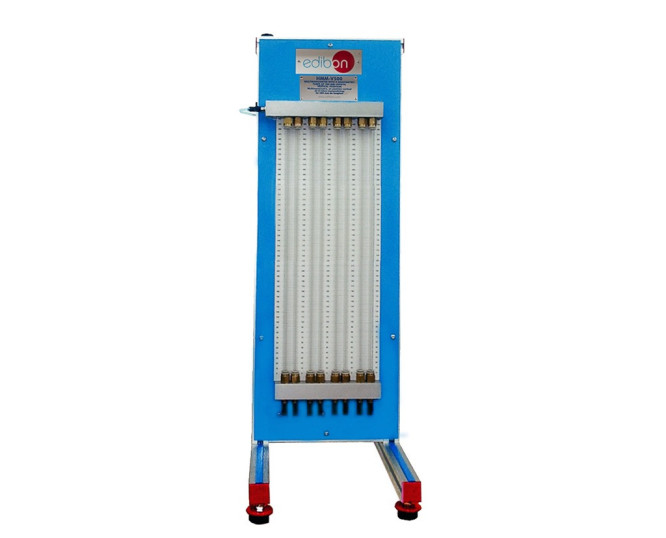

HMM-V500 Multimanometer with 8 manometric tubes of 500 mm length, vertical position

MULTIMANOMETER WITH 8 MANOMETRIC TUBES OF 500 MM LENGTH, VERTICAL POSITION - HMM-V500

INNOVATIVE SYSTEMS

One type of gauge is a U-shaped gauge, which balances the unknown pressure with a known pressure. The pressure is determined by measuring the difference in liquid level of the two branches. Most of these gauges can be used as open gauges or as differential gauges, when they indicate the difference between two different pressures from the atmospheric one.

See general description

RELATED NEWS

General Description

One type of gauge is a U-shaped gauge, which balances the unknown pressure with a known pressure. The pressure is determined by measuring the difference in liquid level of the two branches. Most of these gauges can be used as open gauges or as differential gauges, when they indicate the difference between two different pressures from the atmospheric one.

  • Vertical position.
  • Eight manometric tubes, length: 500 mm.
  • Tubes inner diameter: 8mm, to avoid bubbles.
  • Air pump for pressurization.
  • Eight points for differential pressure measurement, with key.
  • Common collector.
  • Non-return valve.
  • Drain valve.
