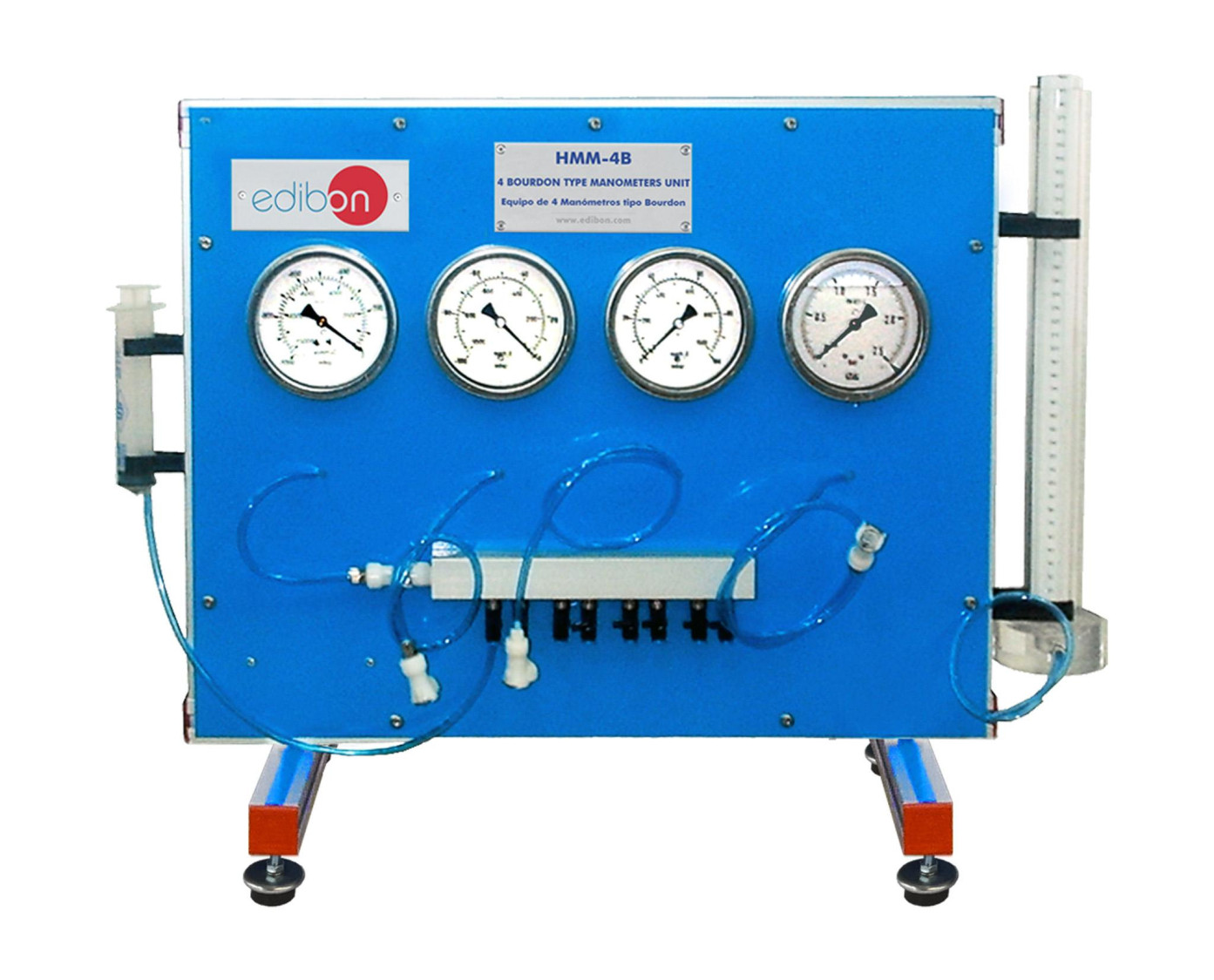

HMM-4B 4 Bourdon type Manometers Unit

INNOVATIVE SYSTEMS

The 4 Bourdon type Manometers Unit, "HMM-4B," designed by EDIBON, stands out for incorporating Bourdon-type gauges for precise pressure measurements in fluid systems.

See general description

Catalog

Tender Specifications

General Description

The 4 Bourdon type Manometers Unit, "HMM-4B," designed by EDIBON, stands out for incorporating Bourdon-type gauges for precise pressure measurements in fluid systems.

This unit enables a detailed analysis of pressure variations at multiple points simultaneously.
