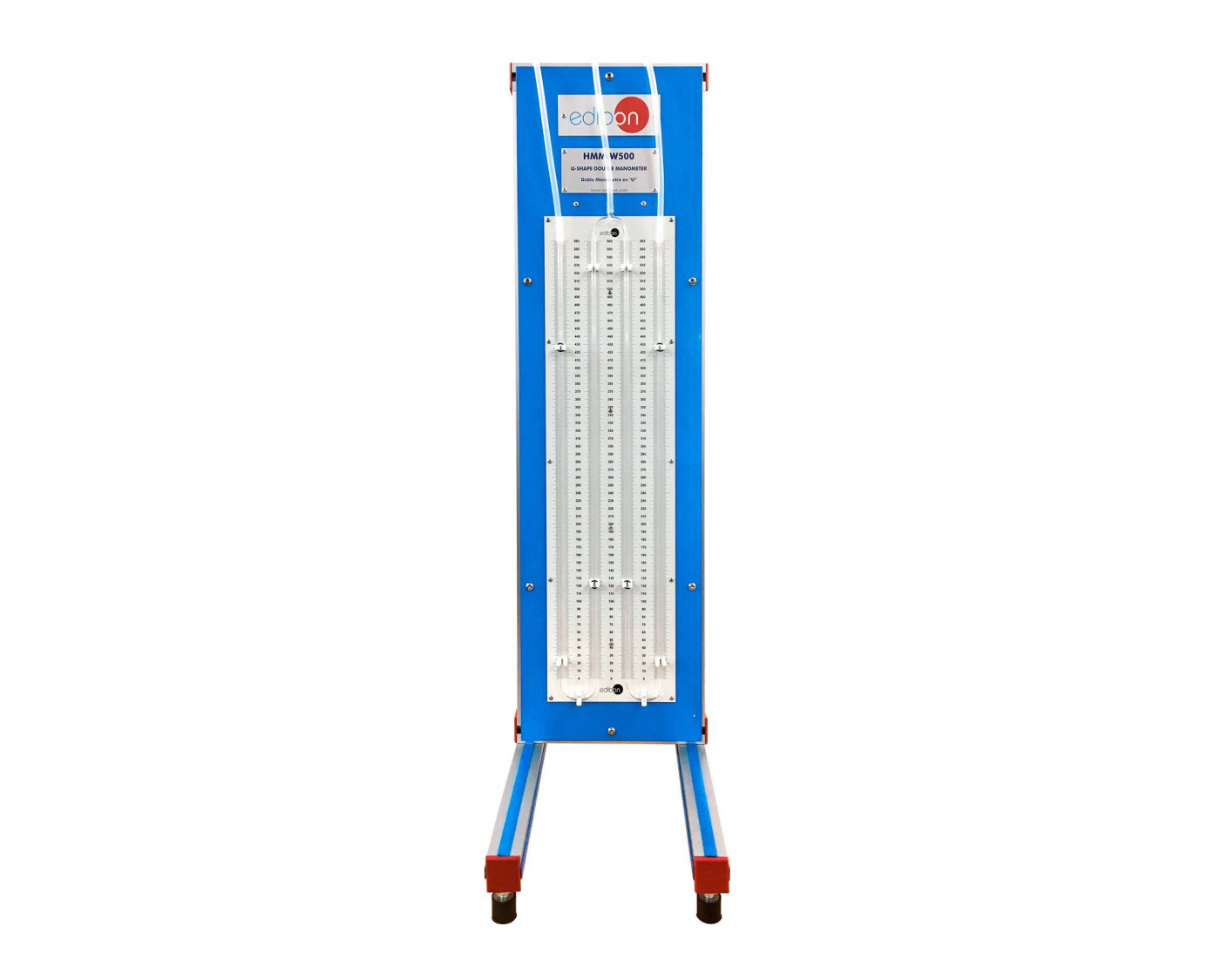

HMM-W500 U-Shape Double Manometer

INNOVATIVE SYSTEMS

One type of gauge is a U-shaped gauge, which balances the unknown pressure with a known pressure. The pressure is determined by measuring the difference in liquid level of the two branches. Most of these gauges can be used as open gauges or as differential gauges, when they indicate the difference between two different pressures from the atmospheric one.

See general description

Catalog

Tender Specifications

General Description

This multimanometer has been designed for operating with Pitot’ s tube.

It allows finding the pressure between two points or two fluids.
