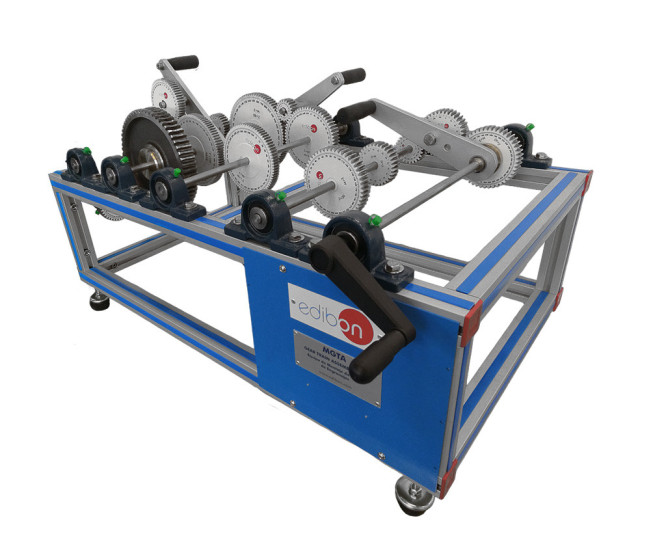

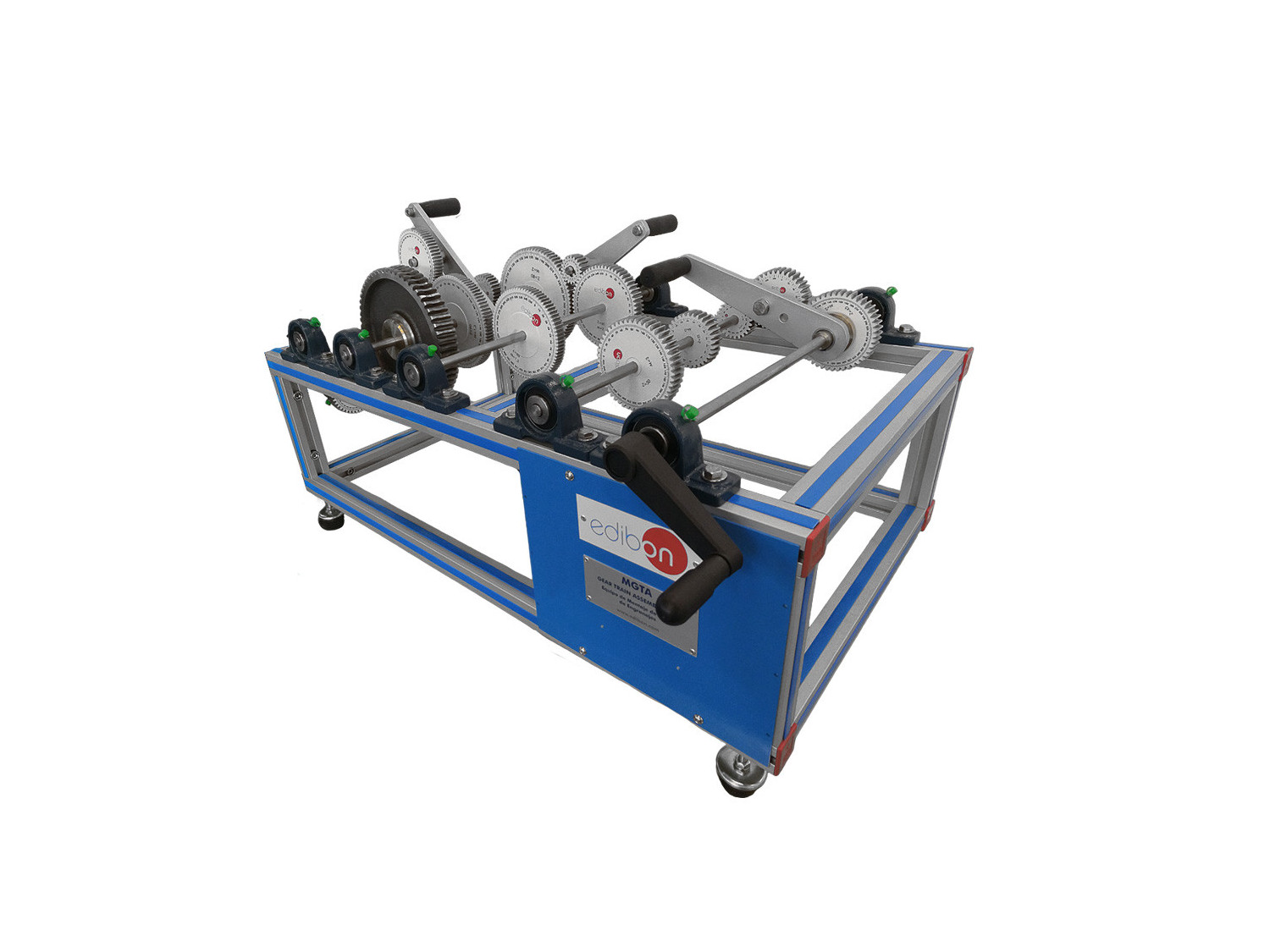

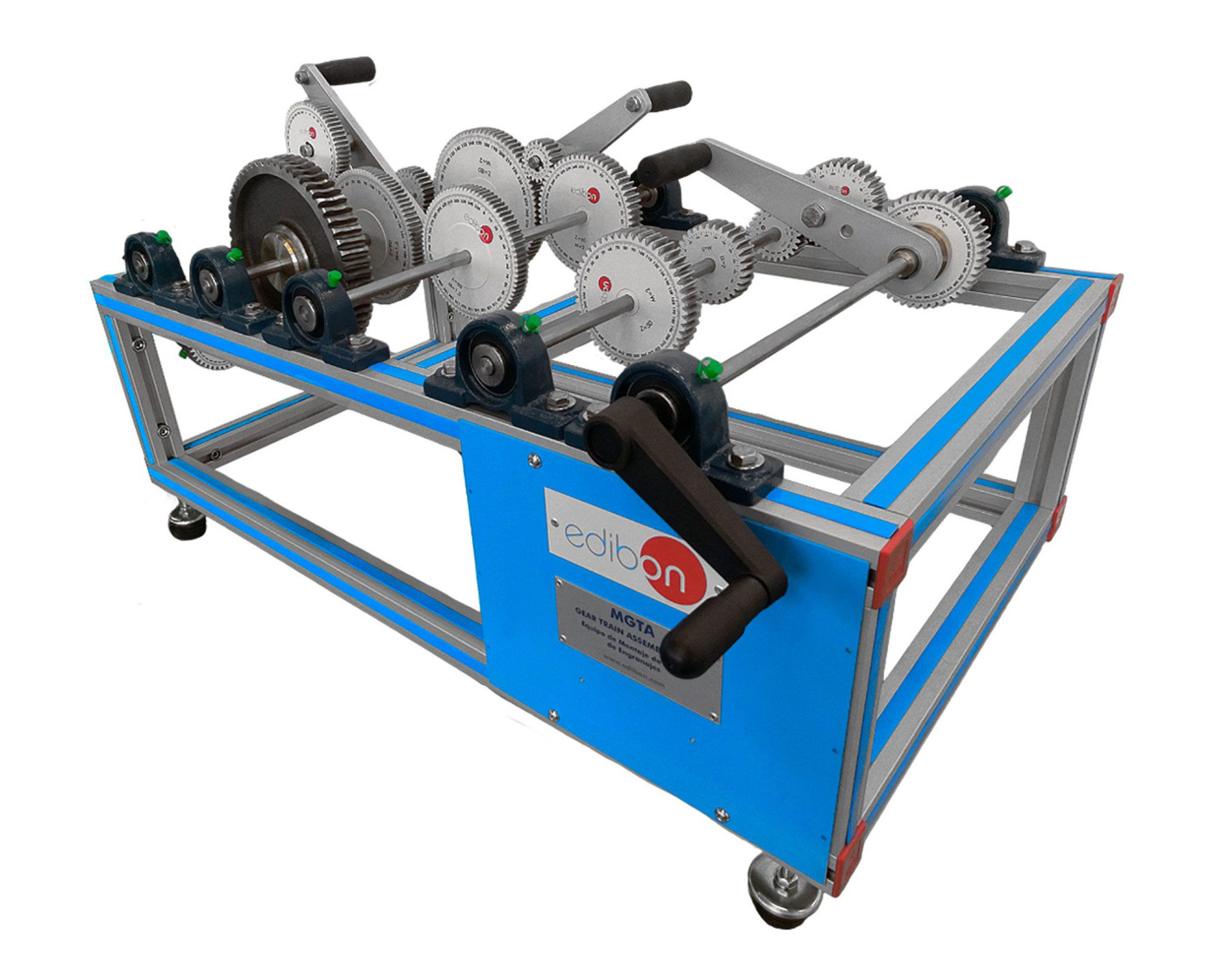

MGTA Gear Train Assembly Unit

GEAR TRAIN ASSEMBLY UNIT - MGTA

INNOVATIVE SYSTEMS

The Gear Train Assembly Unit, "MGTA", designed by EDIBON, allows for the understanding and learning of the fundamentals of mechanical transmission techniques, as well as the assembly, disassembly, and experimentation with two types of simple transmissions.

See general description

RELATED NEWS

General Description

The Study Gear Train Assembly Unit, "MGTA", designed by EDIBON, allows to perform diverse assemblies of gearboxes. The student will essentially learn the practice of assembling gear components in transmissions and will be introduced to the technique of mechanical transmissions.

The unit allows to carry out exercises ensuring the learning of six simple forms of transmission in different combinations. With these six simple forms of transmission, different configurations can be performed putting into practice one's ideas.

For some of the possible configurations, the following will be used: endless screw, straight gears, a Norton gearbox and a reverse mechanism.

The steps to follow for an adequate learning are:

  • Proposal of tasks and understanding of the drawings.
  • Assembly and adjustment of the parts, gear calibration and check.
  • Performance of relevant calculations.

The unit will be driven by means of a steering wheel. A great accuracy will be achieved when adjusting the gears, thanks to the anodized aluminum frame couplings.

A case is provided to facilitate transportation and to ensure the protection of components needed for the assembly and learning.

By means of the gear shift levers, it is possible to vary the speed ratio between the shafts. In this way, there are several gears available to appreciate how the transmission ratios vary. All unit movement is actuated by cranks.

Exercises and guided practices

GUIDED PRACTICAL EXERCISES INCLUDED IN THE MANUAL

  1. Know the important components of the transmissions.
  2. Know the following forms of transmission:
  • Pulley gear.
  • Sliding-wheels gear.
  • Norton Gearbox.
  • Inverter mechanism.
  • Wheel shift gear.
  • Tilting endless screw.
  1. Perform calculations in mechanical transmissions.
  2. Learn the practical assembly of the various possible configurations of mechanical transmissions, and learn to adjust and align.
  3. Understanding of technical diagrams and familiarization with them.
