MSDA Simple Drives Assembly Unit
INNOVATIVE SYSTEMS

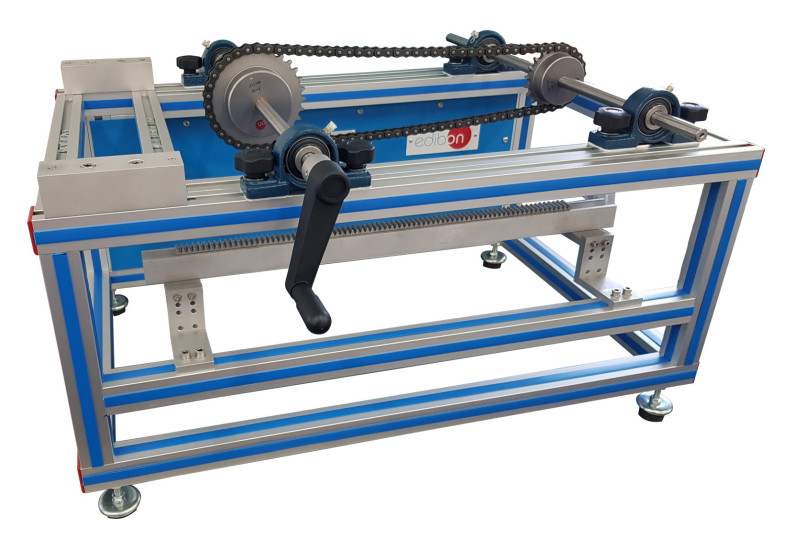

The Simple Drives Assembly Unit, "MSDA", allows the knowledge and learning of the fundamentals of the mechanical transmission technique, as well as the assembly, disassembly and experimentation with simple gears.
Expansions
RELATED NEWS
General Description
The Simple Drives Assembly Unit, "MSDA", allows the knowledge and learning of the fundamentals of the mechanical transmission technique, as well as the assembly, disassembly and experimentation with simple gears.
The unit allows to carry out exercises ensuring the learning of six different forms of simple transmission:
- Simple belt drive.
- Simple chain gear.
- Simple spur gear.
- Bevel gear.
- Worm gear.
- Rack-and-pinion drive.
With these six simple forms of transmission, different configurations can be performed putting one's ideas into practice.
The steps to follow for an adequate learning are:
- Proposal of tasks and understanding of the drawings.
- Assembly and adjustment of the parts, gear calibration and check.
- Performance of relevant calculations.
The unit will be driven by means of a steering handles.
A case is provided to facilitate transportation and to ensure the protection of components needed for the assembly and learning.
Exercises and guided practices
GUIDED PRACTICAL EXERCISES INCLUDED IN THE MANUAL
- Know the important components of the transmissions.
- Know the essential forms of transmission:
- Single-belt transmission.
- Simple straight gears.
- Conical gears.
- Rack and pinion gears.
- Endless screw gears.
- Perform calculations in mechanical transmissions.
- Learn the practical assembly of the various possible configurations of mechanical transmissions, and learn to adjust and align.
- Understanding of technical diagrams and familiarization with them.
SIMILAR UNITS AVAILABLE
14.1.2.2.- GEARS
MCDA
The Combined Drives Assembly Unit, "MCDA", allows carrying out advanced exercises and provides an understanding of the significant components and arrangements of the mechanical drive technology.With this unit, practices can be carried out to...
14.1.2.2.- GEARS
MGTA
Gear Train Assembly Unit
The Unit to Study Gear Train Assembly, "MGTA", allows to perform diverse assemblies of gearboxes. The student will essentially learn the practice of assembling gear components in transmissions and will be introduced to the technique of mechanical...
SUPPLEMENTARY EQUIPMENT
14.1.2.2.- GEARS
MTSF
Worm and Wheel Unit
The Worm and Wheel Unit, "MTSF", allows to demonstrate the principle of a worm gear.The unit consists in a worm and a wheel. These parts are mounted on ball bearings and fixed to a vertical panel.The worm and wheel are positioned a set distance...
14.1.2.2.- GEARS
MAE

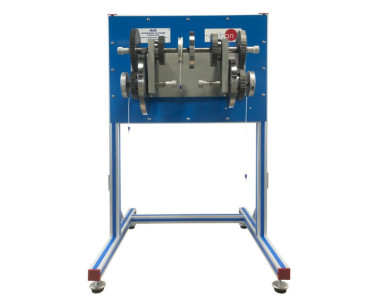

Acceleration of Geared System Unit
