AFT/P Fluid Friction in Pipes Unit

8.8.- FLUID PIPING SYSTEM
FLUID FRICTION IN PIPES UNIT - AFT/P

INNOVATIVE SYSTEMS

The Fluid Friction in Pipes Unit, "AFT/P", is designed to determine the friction coefficient in pipes, to study the pressure losses in different types of valves and different fittings and to compare different methods to measure the flow.

See general description

Expansions

ICAI

Interactive Computer Aided Instruction Software

RELATED NEWS

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Read more
Setting up at Perenco in Gabon
Setting up at Perenco in Gabon
Today we want to talk to you about the latest installation we have done at Perenco in Gabon. We moved there to install the following units from our Fluid Mechanics area
Read more
Setting up at the National University of Technology - NUTECH (Pakistan)
Setting up at the National University of Technology - NUTECH (Pakistan)
The National University of Technology - Pakistan (NUTECH), specifically the Mechanical Engineering Technology Department, installed some of our units so that their students can receive a quality practical education. Specifically, they have acquired our Computer Controlled Aerodynamic Tunnel, 300...
Read more
NEW Fluid Mechanics Course
NEW Fluid Mechanics Course
Are you a teacher or do you work as an engineering researcher? EDIBON offers courses for teachers and #research staff. Take a look at the course of Fluid Mechanics and learn about #fluids properties. #DiscoverEdibon #Engineering.
Read more

General Description

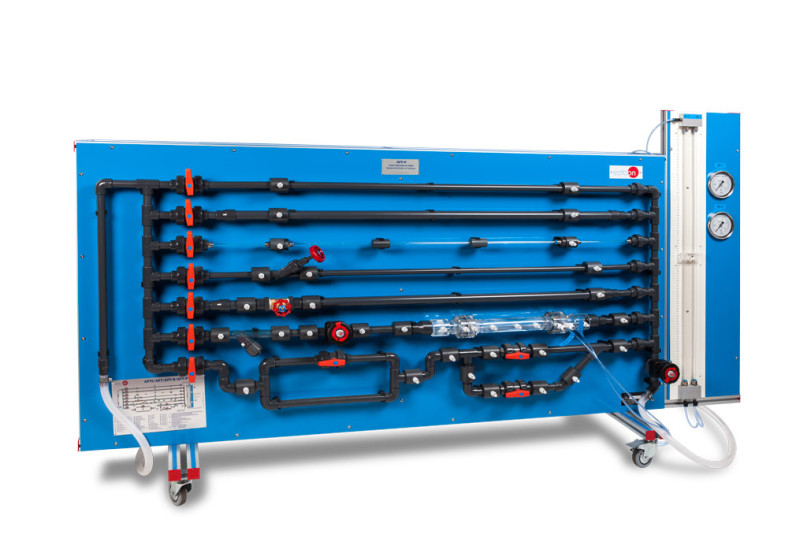

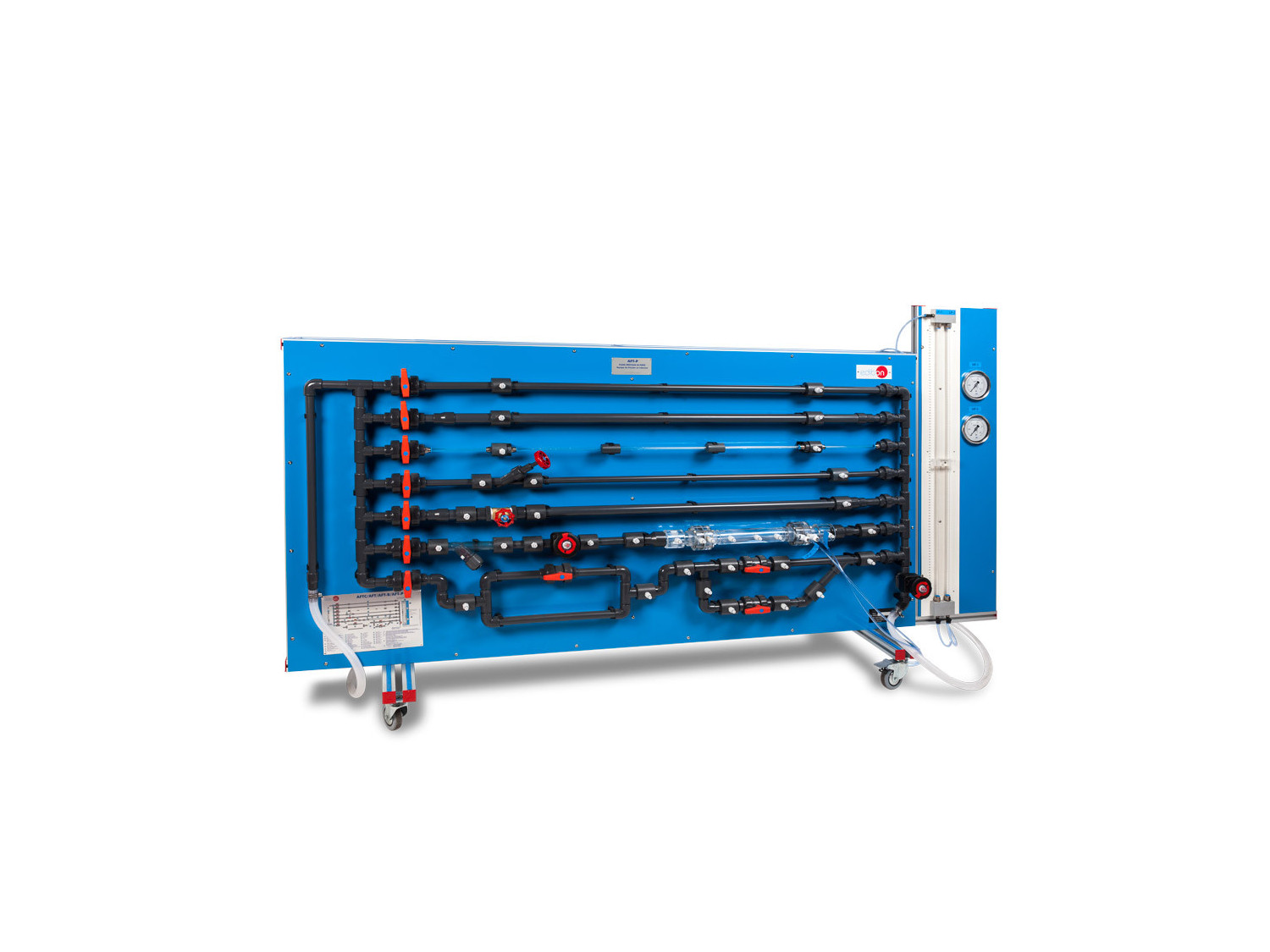

The Fluid Friction in Pipes Unit, "AFT/P", is designed to determine the friction coefficient in pipes, to study the pressure losses in different types of valves and different fittings and to compare different methods to measure the flow.

This unit contains five straight pipe sections made of different materials and with different diameters and roughness. Additionally, a wide range of accessories are included for the study of losses in straight pipes, several types of valves, pipe fitting, etc.

The different pipe sections, valves and pipe fittings include several pressure measurement points with quick action connections.

The unit includes two water manometric tubes, two Bourdon manometers and a flowmeter.

Exercises and guided practices

GUIDED PRACTICAL EXERCISES INCLUDED IN THE MANUAL

Obtaining pressure drops in different types of pipes:

  1. Determination of pressure loss due to friction in a rough pipe with an internal diameter of 17 mm.
  2. Determination of pressure loss due to friction in a rough pipe with an internal diameter of 23 mm.
  3. Determination of pressure loss due to friction in a smooth pipe with an internal diameter of 6.5 mm.
  4. Determination of pressure loss due to friction in a smooth pipe with an internal diameter of 16.5 mm.
  5. Determination of pressure loss due to friction in a smooth pipe with an internal diameter of 26.5 mm.

Comparison of the different parameters that affect pressure drops:

  1. Study of the influence of the diameter in the pressure loss due to friction in rough pipes.
  2. Study of the influence of the diameter in the pressure loss due to friction in smooth pipes.
  3. Study of the influence of the roughness in the pressure loss.
  4. Determination of the friction coefficient in a rough pipe with an internal diameter of 17 mm.

Calculation of the friction coefficient in different types of pipes:

  1. Determination of the friction coefficient in a rough pipe with an internal diameter of 23 mm.
  2. Determination of the friction coefficient in a smooth pipe with an internal diameter of 6.5 mm.
  3. Determination of the friction coefficient in a smooth pipe with an internal diameter of 16.5 mm.
  4. Determination of the friction coefficient in a smooth pipe with an internal diameter of 26.5 mm.

Influence of different parameters in the friction coefficient:

  1. Study of the influence of the diameter in the friction coefficient in rough pipes.
  2. Study of the influence of the diameter in the friction coefficient in smooth pipes.
  3. Comparison of the friction coefficient in smooth and rough pipes.

Obtaining the pressure drop in different types of valves:

  1. Determination of pressure loss in an angle-seat valve.
  2. Determination of pressure loss in a gate valve.
  3. Determination of pressure loss in a diaphragm valve.
  4. Determination of pressure loss in a ball valve.

Comparison between different types of valves:

  1. Comparison of pressure loss in different types of valves.

Obtaining the pressure drop in different types of fittings:

  1. Determination of pressure loss in an in-line strainer.
  2. Determination of pressure loss in a 90° elbow.
  3. Determination of pressure loss in a double 90° elbow.
  4. Determination of pressure loss in a 45° elbow.
  5. Determination of pressure loss in a 45° "T".
  6. Determination of pressure loss in an inclined T.
  7. Determination of pressure loss in a symmetrical "Y" branch.
  8. Determination of pressure loss in a narrowing.
  9. Determination of pressure loss in a gradual widening.
  10. Determination of pressure loss in a diaphragm.

Comparison between different types of fittings:

  1. Comparison of pressure loss in the different fittings.

Flow measurement through different systems:

  1. Measurement of the flow with the Venturi tube.
  2. Determination of the discharge coefficient, Cd, in the Venturi tube.
  3. Measurement of the flow with the Pitot tube.
  4. Determination of the discharge coefficient, Cd, in the Pitot tube.

Comparison between different systems:

  1. Comparison between the flow measured in the Venturi and Pitot tubes.
View more

MORE PRACTICAL EXERCISES TO BE DONE WITH THE UNIT

  1. Study of the relationship between pressure losses due to fluid friction and the water flow rate.
  2. Determining the relationship between the pipe friction coefficients and Reynolds number for flow through a pipe with roughened bore.
  3. Determining of the resistance coefficients for bends, enlargements and contractions.
  4. Determining of characteristic curves of valves and fittings.
