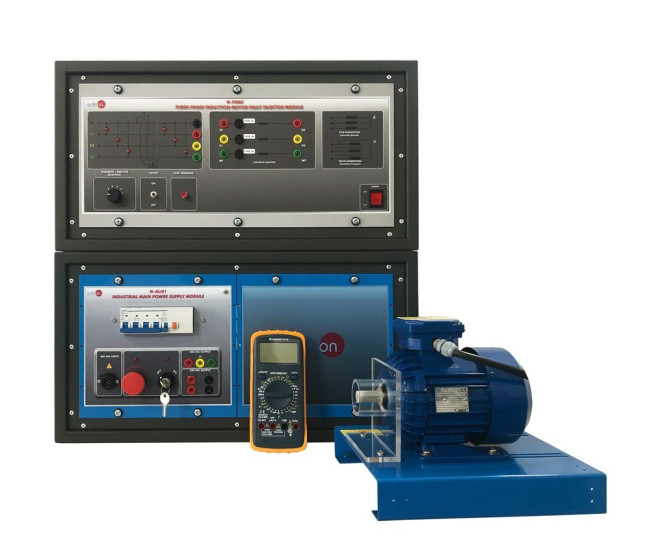

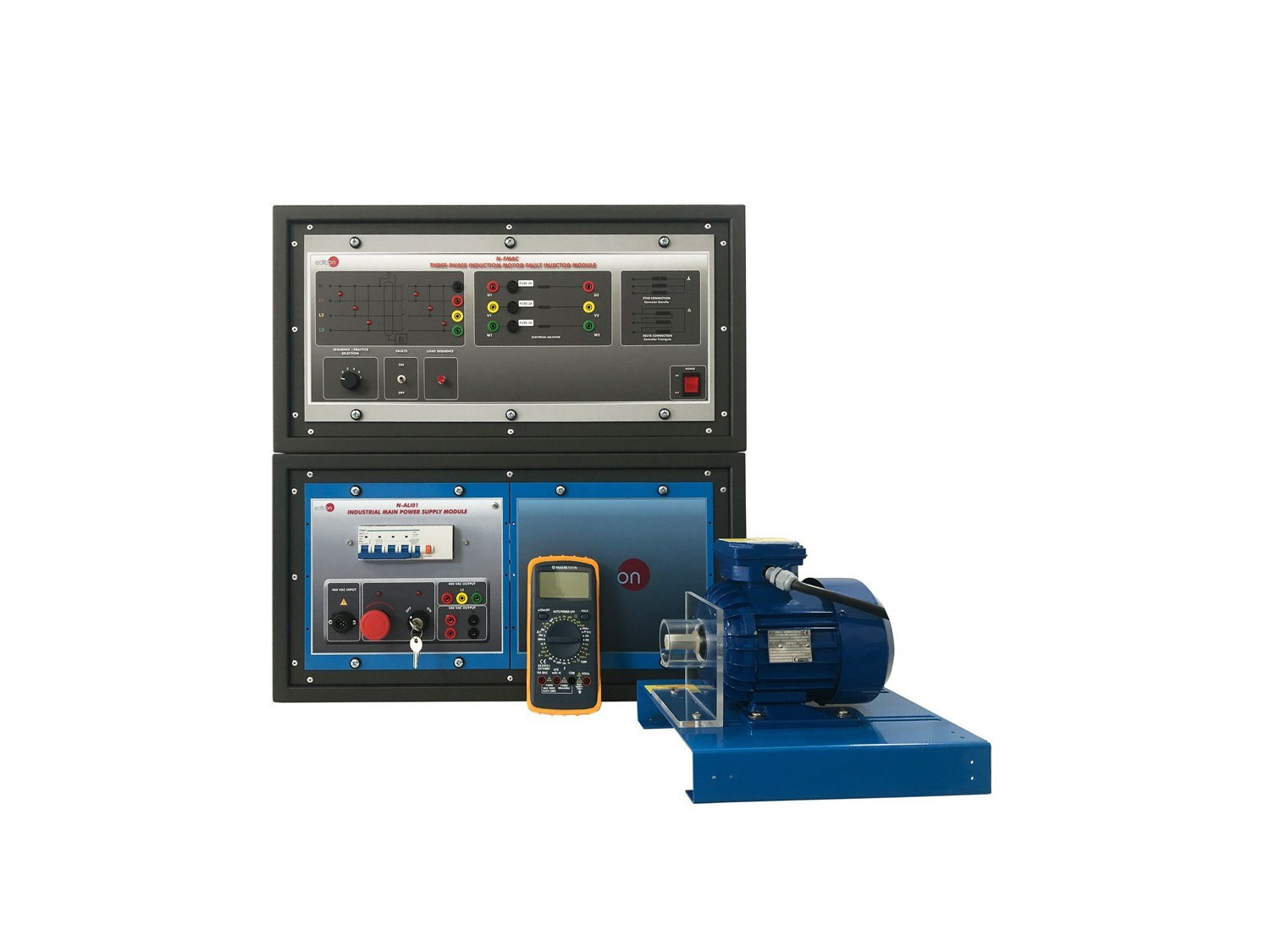

The Faults Simulation Application in Electrical Motors, "AEL-ESAM", has been designed by EDIBON to simulate non-destructive faults in three-phase motors and application of diagnostic and localization techniques.

See general description

RELATED NEWS

General Description

The Faults Simulation Application in Electrical Motors, "AEL-ESAM", has been designed by EDIBON to simulate non-destructive faults in three-phase motors and application of diagnostic and localization techniques.

This application allows simulating different breakdowns that can usually take place in electric motors, such as: Phase loss detection, power supply loss detection, short-circuited turn-coil detection, open coil detection, short-circuit between different phase coils detection and ground derivation detection.

All this simulations are carried out by the "AEL-ESAM" application, which has a circuit control that realizes the failures randomly.

Exercises and guided practices

GUIDED PRACTICAL EXERCISES INCLUDED IN THE MANUAL

  1. Power supply loss detection.
  2. Open coil detection.
  3. Short-circuit detection between different phase coils.
  4. Detection of the coil with short-circuited turns.
  5. Detection of a phase loss.
  6. Detection of ground fault.

MORE PRACTICAL EXERCISES TO BE DONE WITH THE UNIT

  1. Detection of fault on a phase.
  2. Detection of fault on the supply voltage.
  3. Phase-loss detection.
  4. Measurement of the resistance of the windings.
  5. Measurement of the resistance between coils from different phases.
  6. Study of the operation of a three-phase Dahlander induction motor in delta (Δ) connection, corresponding to low-speed operation (4 poles).
  7. Study of the operation of a three-phase Dahlander induction motor in double-star (YY) connection, corresponding to highspeed operation (2 poles).
