TXC/CCB Combined Free and Forced Convection and Radiation Unit for TSTCB

9.6.- HEAT TRANSFER
COMBINED FREE AND FORCED CONVECTION AND RADIATION UNIT FOR TSTCB - TXC/CCB

INNOVATIVE SYSTEMS

TXC/CCB. Bench-top unit to study the principles of combined free and forced convection with radiation from a horizontal heater cylinder.

See general description

Expansions

ICAI

Interactive Computer Aided Instruction Software

RELATED NEWS

Thermodynamics and Thermotechnology: Key concepts and EDIBON's contribution
Thermodynamics and Thermotechnology: Key concepts and EDIBON's contribution
Thermodynamics and thermotechnology are fundamental fields of engineering that play a critical role across various industries, from energy generation to climate control. Understanding these foundational concepts is essential not only for engineers but also for fostering technological innovations...
Read more
EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Read more
Performance of Diffusion Absorption Refrigerators with Variable Input Power
Performance of Diffusion Absorption Refrigerators with Variable Input Power
We are excited to celebrate the publication of the article by Prof. Dr. Nina Penkova titled "Performance of Diffusion Absorption Refrigerators with Variable Input Power" The study explores how absorption refrigerators, which utilize waste or solar energy for heating and cooling, can operate...
Read more

General Description

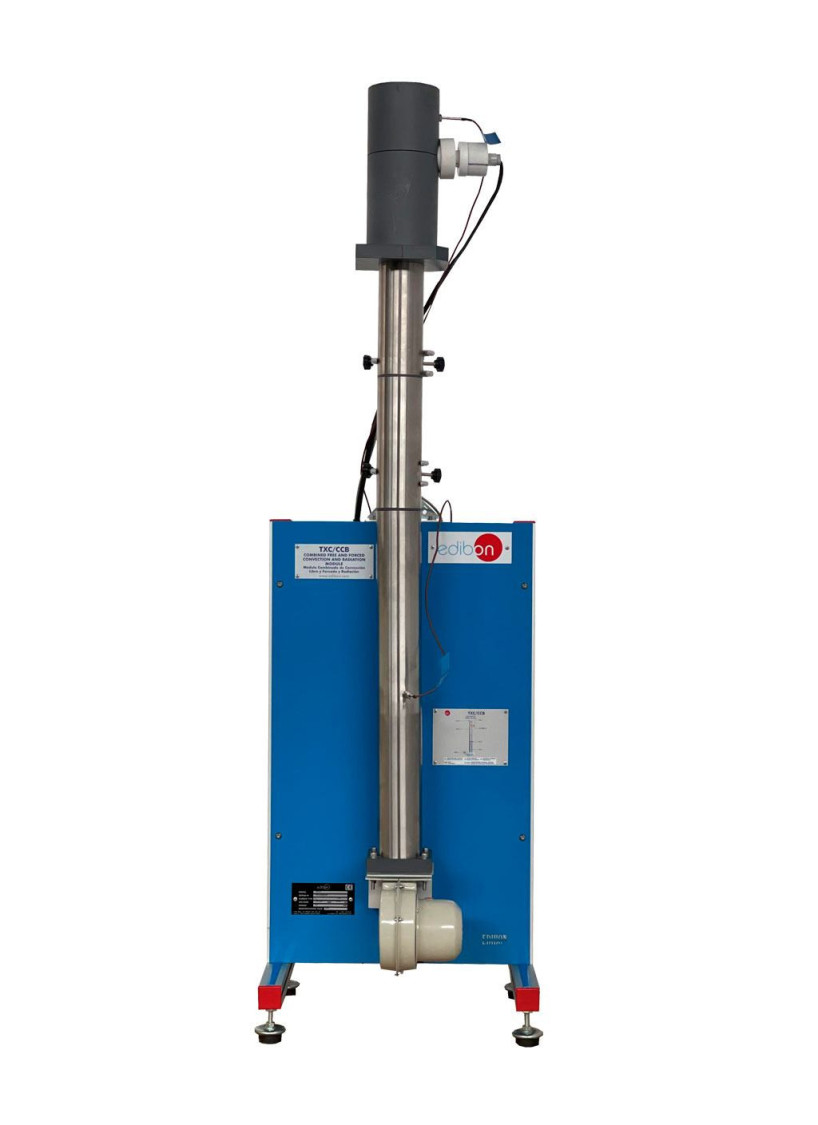

TXC/CCB. Combined Free and Forced Convection and Radiation Unit for TSTCB: study of the principles of convection (free and forced) combined with radiation from a heated horizontal cylinder. Studies the variation in the local heat transfer coefficient around a horizontal cylinder when it is subject to free and forced convection.

Bench-top unit to study the principles of combined free and forced convection with radiation from a horizontal heater cylinder.

It studies the variation experimented by the local heat transfer coefficient around of a horizontal cylinder. It is subject to a forced and a free convection.

Exercises and guided practices

GUIDED PRACTICAL EXERCISES INCLUDED IN THE MANUAL

  1. Demonstration of the combined heat transfer effect by radiation and convection on the surface of the cylinder. Determination of the combined heat transfer effect by forced convection and radiation.
  2. Demonstration of the influence of air flow in the heat transfer. Determination of the combined heat transfer effect by forced convection and radiation.
  3. Demonstration of the influence of input power in the heat transfer. Determination of the combined heat transfer effect by forced convection and radiation.
  4. Demonstration of the combined heat transfer effect by radiation and convection on the surface of the cylinder. Determination of the combined heat transfer effect by free convection and radiation.
