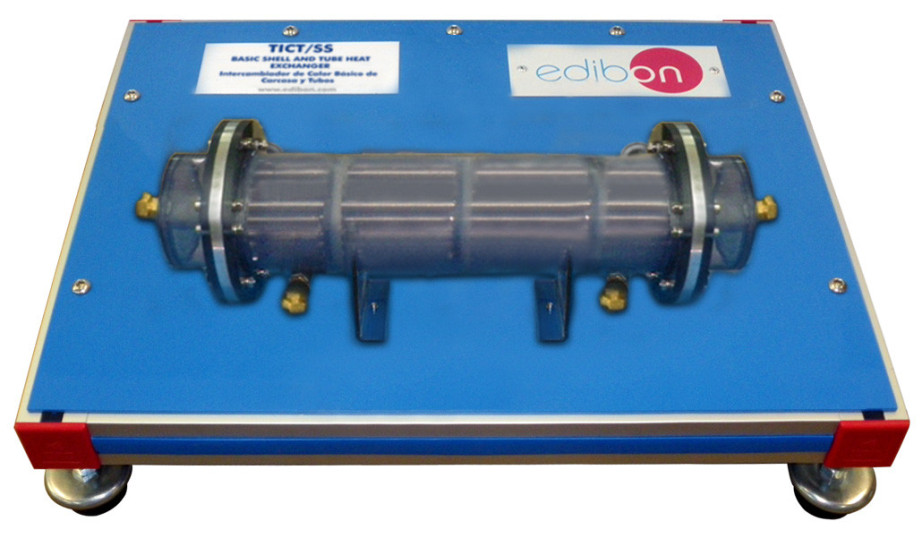

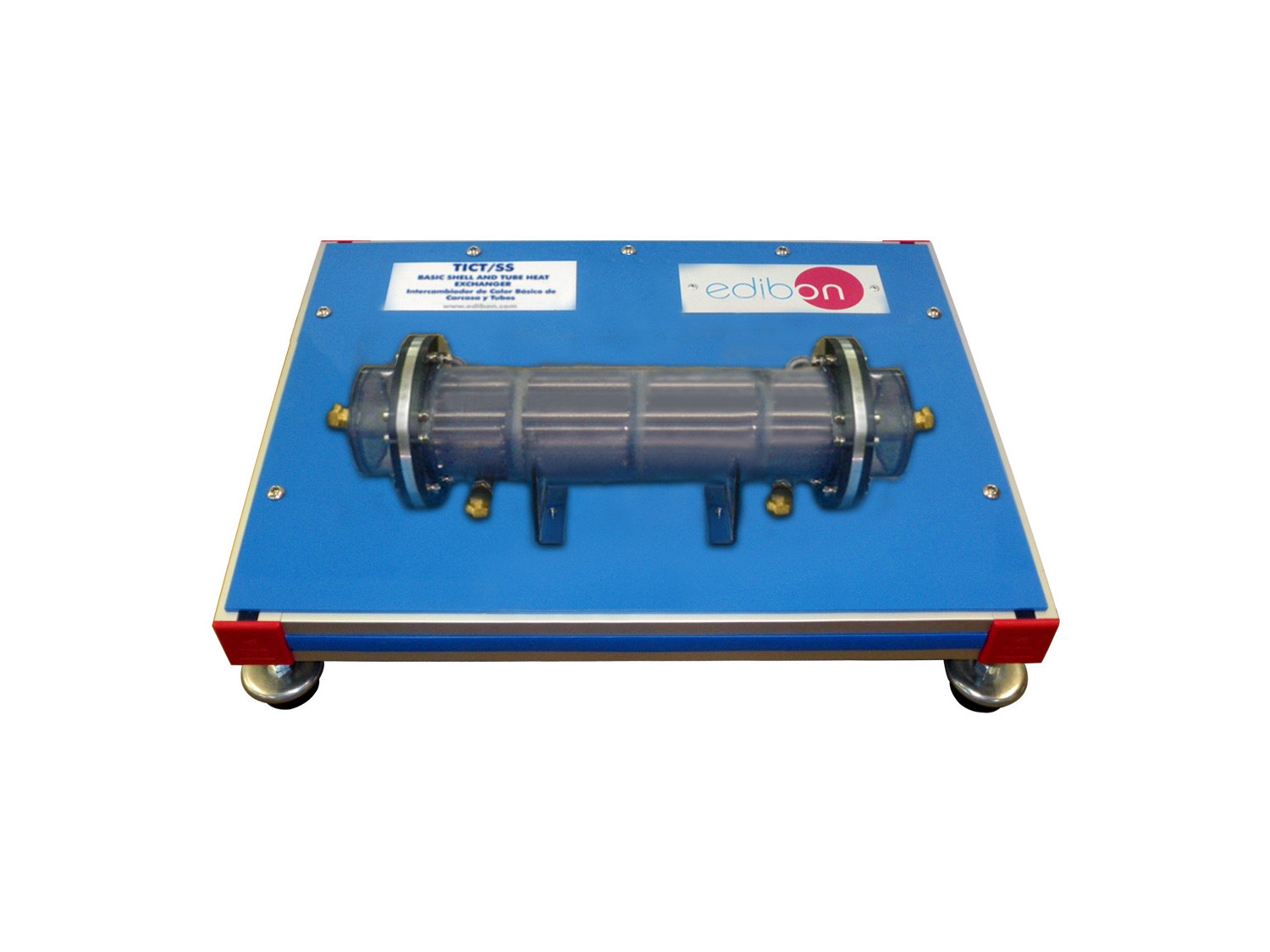

TICT/SS Basic Shell and Tube Heat Exchanger

9.7.- HEAT EXCHANGERS

BASIC SHELL AND TUBE HEAT EXCHANGER - TICT/SS

Catalog

Tender Specifications

Expansions

ICAI

Interactive Computer Aided Instruction Software

Exercises and guided practices

GUIDED PRACTICAL EXERCISES INCLUDED IN THE MANUAL

Global energy balance in the heat exchanger and the study of losses.
Exchanger effectiveness determination. NTU Method.
Study of the heat transfer under counter-current and co-current flow conditions.
Flow influence on the heat transfer. Reynolds number calculation.
Study of the pressure drop in the exchanger.

Additional practical possibilities:

Control system: Temperature sensors calibration.
Control system: Flow sensors calibration.
Study of the hysteresis of the flow sensor.
