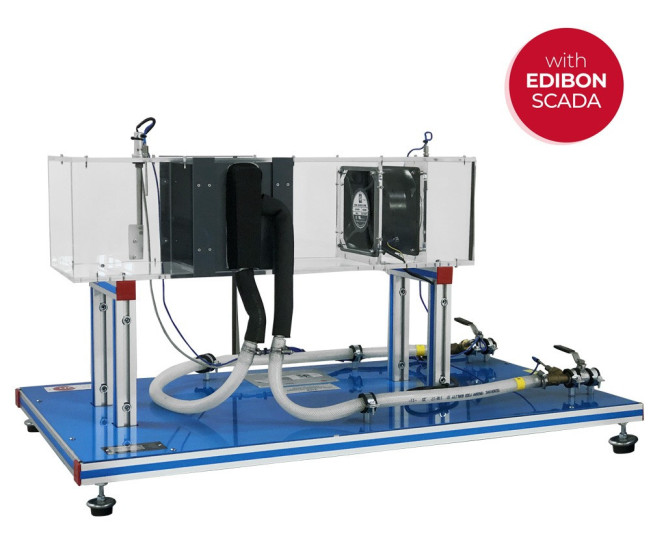

Cross Flow Heat Exchanger for TICC: Designed to study heat transfer between two fluids in cross flow configuration. Hot water flow coming from the base unit enters and leaves a radiator perpendicular to an air current, which is generated by a fan.

See general description

RELATED NEWS

General Description

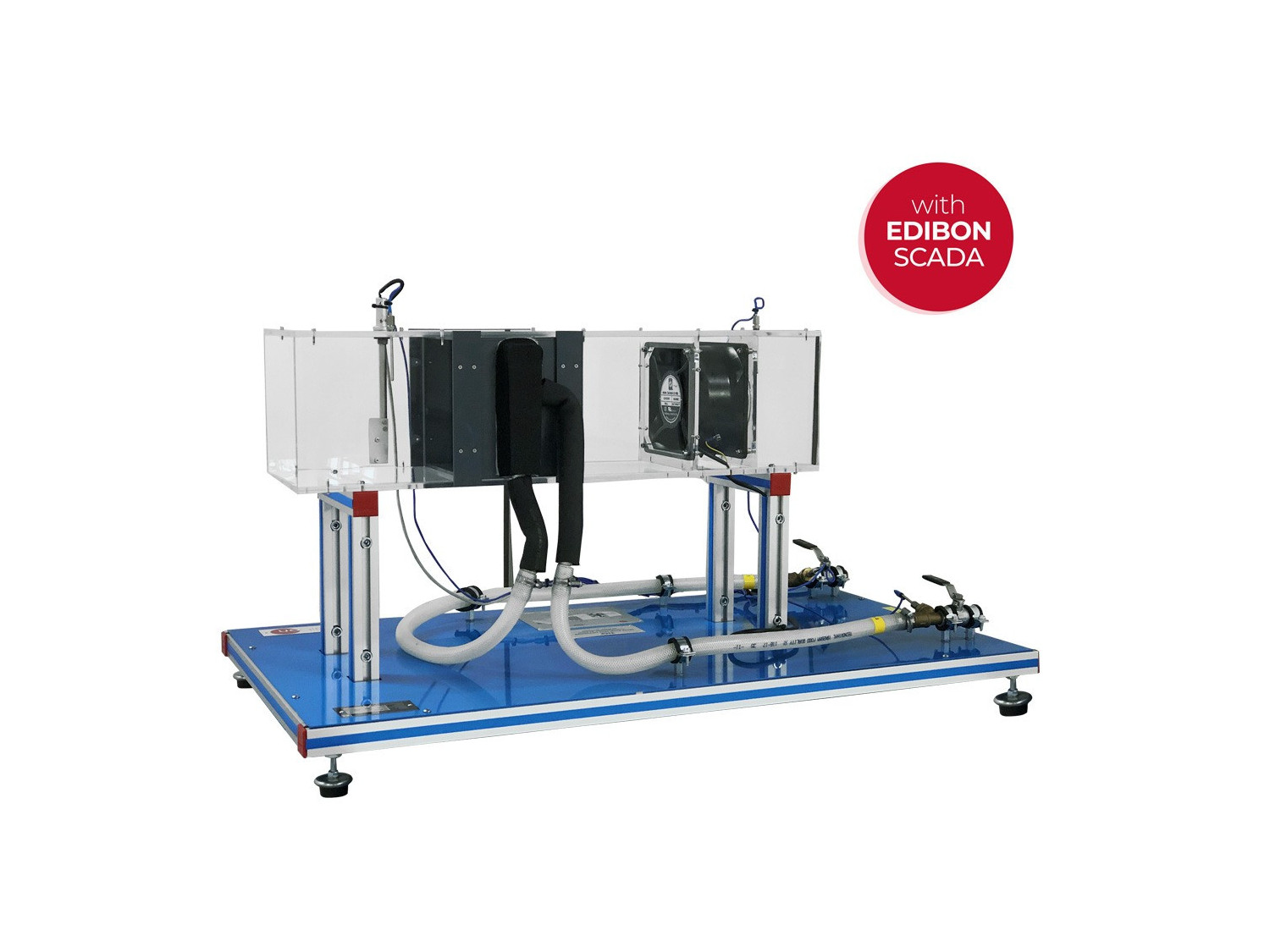

Cross Flow Heat Exchanger for TICC: Designed to study heat transfer between two fluids in cross flow configuration. Hot water flow coming from the base unit enters and leaves a radiator perpendicular to an air current, which is generated by a fan.

Exercises and guided practices

GUIDED PRACTICAL EXERCISES INCLUDED IN THE MANUAL

  1. Introduction to the concept of psychometric properties.
  2. Effect of temperature differential on the heat transfer coefficient.
  3. Familiarization with cross flow heat exchanger.
  4. Overall energy balance in the heat exchanger and study of losses.
  5. Determination of the exchanger effectiveness (NTU method).
  6. Influence of air and water flow on the heat transfer. Reynolds number calculation.
  7. Control system: Temperature sensors calibration.
  8. Control system: Flow sensors calibration.

MORE PRACTICAL EXERCISES TO BE DONE WITH THE UNIT

  1. Study of the hysteresis in the flow sensors.
