AEL-AD33 Single-Phase Installations Faults Application

4.1.2.2.- ELECTRICAL RISKS AND PROTECTIONS
SINGLE-PHASE INSTALLATIONS FAULTS APPLICATION - AEL-AD33

INNOVATIVE SYSTEMS

The Single-Phase Installations Faults Application, "AEL-AD33", has been designed to study several protections belonging to home installations.

See general description

Expansions

ICAI

Interactive Computer Aided Instruction Software

Laboratories

4TV
 Technical and Vocational Education Electricity Laboratory
4HE
 Higher Education Electricity Laboratory
11PTC
 Petroleum Training Center Laboratory

RELATED NEWS

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Read more
The Importance of Hands-On Training in Electricity for Universities and Companies
The Importance of Hands-On Training in Electricity for Universities and Companies
Electricity is a form of energy resulting from the movement of electrons through a conductor. This physical phenomenon is essential for the operation of a wide variety of devices and systems we use daily, from household appliances to complex industrial systems.
Read more
What is Industry 4.0?
What is Industry 4.0?
Today we are at the beginning of a new era, named ‘Industrie 4.0’. Let´s explain a little further the concept "Industrie 4.0"!
Read more

General Description

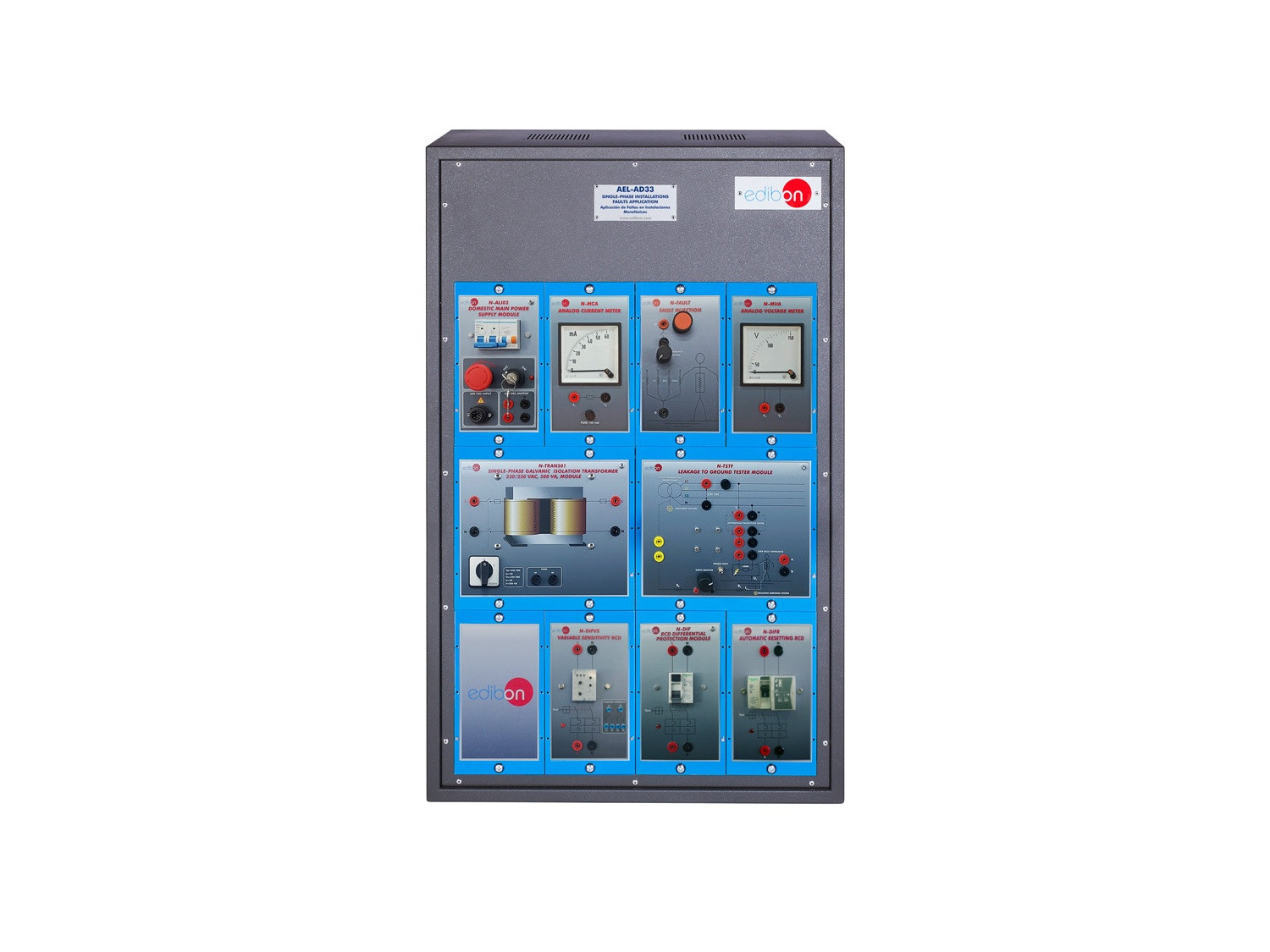

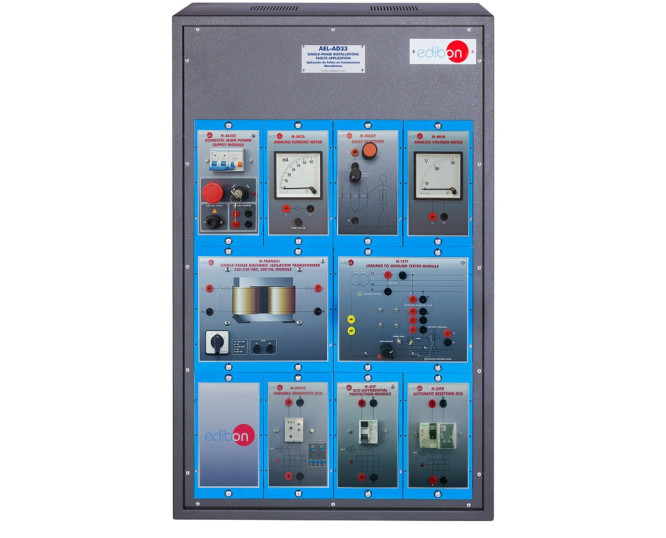

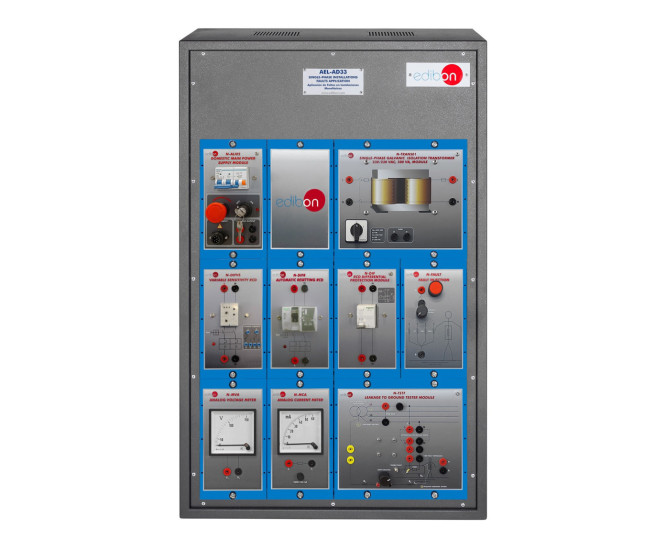

The Single-Phase Installations Faults Application, "AEL-AD33", has been designed to study several protections belonging to home installations. Through the safety elements, the student can simulate different faults and verify the reasons why each type of protection acts. It includes some innovative electric devices for the protection of people and installations against the effects of electric current, which ensure the continuity of power availability, as well as people safety. It includes a single-phase transformer to simulate earth derivations under safety conditions. It includes protections for: differential protection with automatic reset and differential protection with variable sensivity.

To check all protections, a variable resistor is included to control current derivations. It also has meters to know the amount of derivation current and verify the protection´s sensitivity.

Exercises and guided practices

GUIDED PRACTICAL EXERCISES INCLUDED IN THE MANUAL

  1. Study the basic concepts of differential protection.
  2. Study of differential protection with variable sensitivity.
  3. Study of differential protection with automatic restore.
  4. Adjustment of the protection sensibility of the differential protection.
  5. Study of Single-phase ground short-circuit with basic differential protection.
  6. Study of Single-phase ground short-circuit with short-circuit impedance and basic differential protection.
  7. Study of Single-phase ground short-circuit with differential protection with variable sensitivity.
  8. Study of Single-phase ground short-circuit with short-circuit impedance and differential protection with variable sensitivity.
  9. Study of Single-phase ground short-circuit with differential protection with automatic restore.
  10. Study of Single-phase ground short-circuit with short-circuit impedance and differential protection with automatic restore.
  11. Study of isolation coordination.
