MEMT-4 Rolling Friction in Wheels

ROLLING FRICTION IN WHEELS - MEMT-4

INNOVATIVE SYSTEMS

This module allows to determine the slip forces between two rotating friction discs in contact.

See general description

RELATED NEWS

General Description

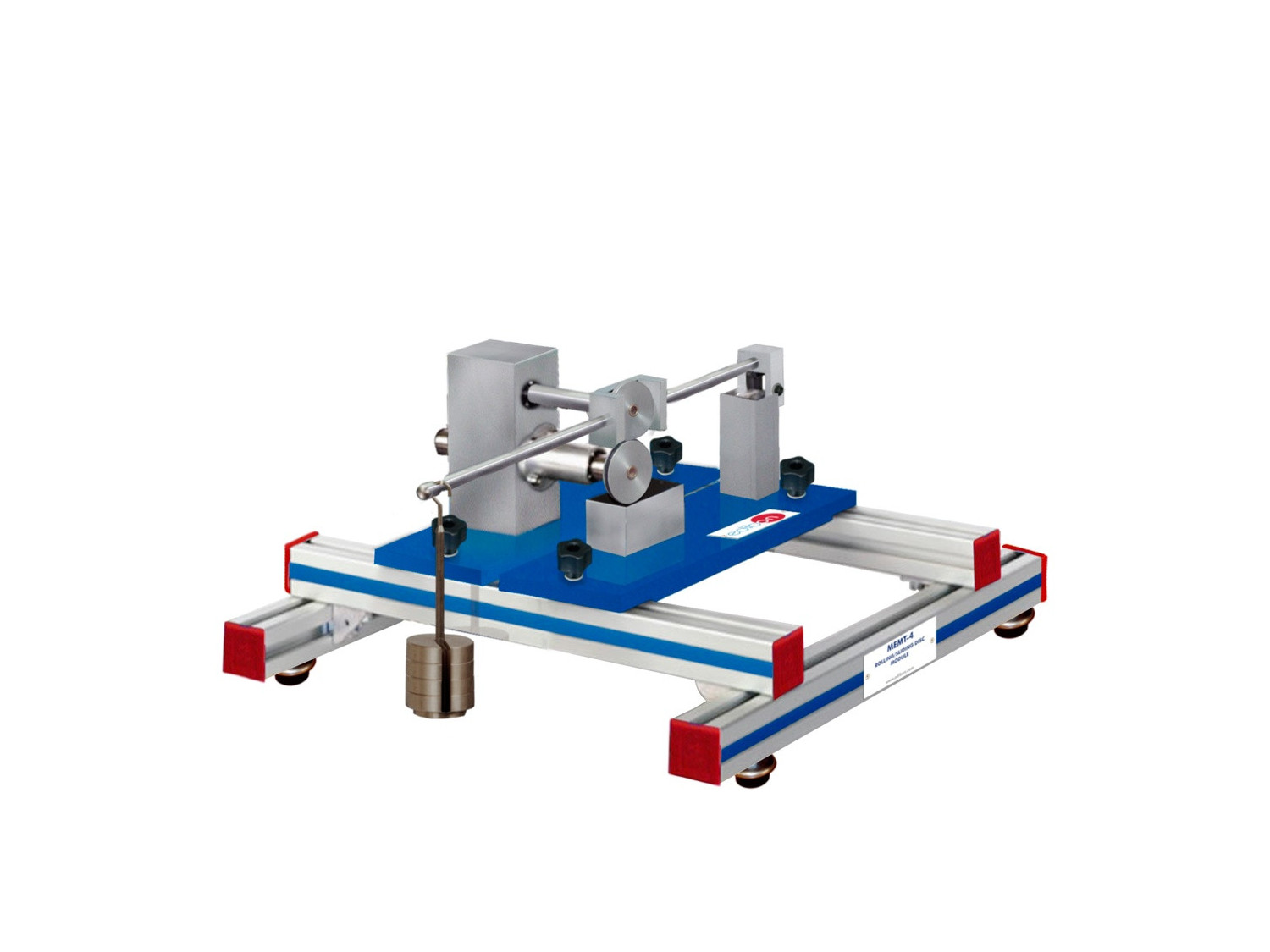

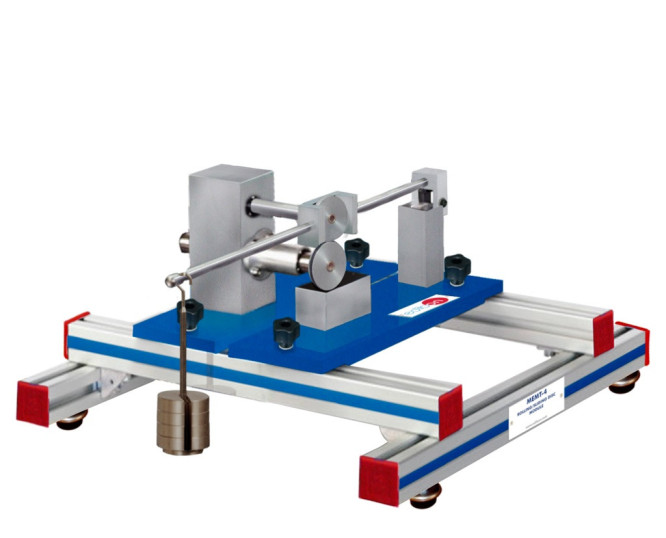

This module allows to determine the slip forces between two rotating friction discs in contact.

The slip between the discs is maintained constant by a gearbox. The pressure can be adjusted with a lever and a set of weights. The unit includes a vessel for supplying lubricant. A force sensor measures the friction forces as a function of the load, the rotating speed and the lubricant. Several knurled screws enable to change the rotating friction discs easily.

Exercises and guided practices

GUIDED PRACTICAL EXERCISES INCLUDED IN THE MANUAL

  1. Determination of the slip forces between two rotating discs in contact.
  2. Investigation of friction forces as a function of the load.
  3. Investigation of friction forces as a function of the operating speed.
  4. Investigation of friction forces as a function of the lubrication.
