M41 Resistance Transducers

2.3.5.- INSTRUMENTATION & CONTROL
RESISTANCE TRANSDUCERS - M41

INNOVATIVE SYSTEMS

With Resistance Transducers module, "M41", designed by EDIBON, we can study techniques for the measurement of various physical quantities, such as temperature, light intensity, displacement, force, etc., using resistance transducers.

See general description

Expansions

ICAI

Interactive Computer Aided Instruction Software
EMSK

EDIBON Development KIT for Circuits Simulation, Powered by NI LabVIEW™

Laboratories

2TV
 Technical and Vocational Education Electronics Laboratory
2HE
 Electronics Laboratory for Higher Education
11PTC
 Petroleum Training Center Laboratory

RELATED NEWS

Completion of the Small Laboratory Equipment Repair Course
Completion of the Small Laboratory Equipment Repair Course
On December 1st, the Repair Course for Small Laboratory Equipment, taught by our engineers at the EDIBON facilities, was completed, lasting 4 days. The attendees, (Laboratory technicians and maintenance of the Rey Juan Carlos University of Madrid) had the opportunity to perform multiple...
Read more

General Description

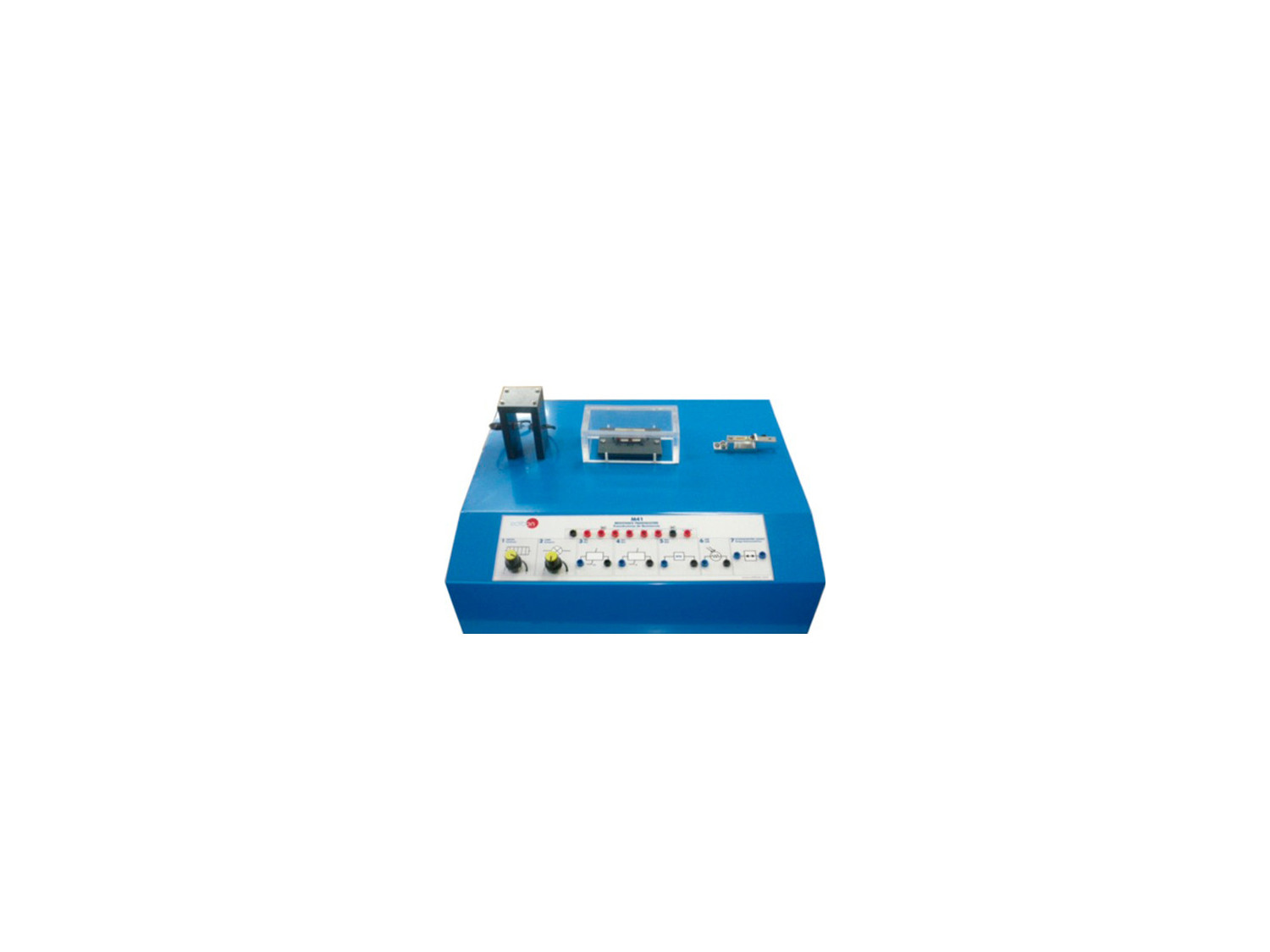

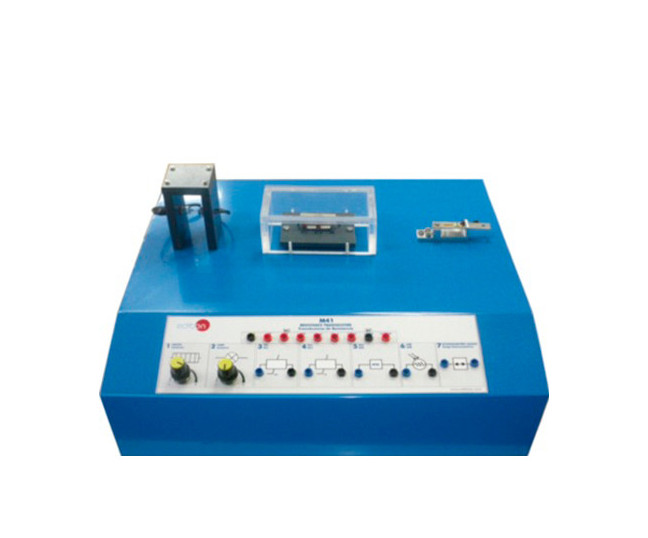

This unit allows different practices related to resistance transducers to be carried out. The unit has five different types of transducers: PTC, NTC, LDR, strain gauge and RTD.

The operation of thermistors is based on the principle that the resistance of some materials varies with the change of their temperature. When the temperature of the material changes, its resistance varies and can be simply measured and calibrated as a function of the input quantity. The most commonly used thermistors are made of ceramic semiconductor materials, such as manganese, nickel and cobalt oxides. Thermistors can be used for temperature measurement, as electrical power sensing devices and also as control for various processes.

With Resistance Transducers module, "M41", designed by EDIBON, we can study techniques for the measurement of various physical quantities, such as temperature, light intensity, displacement, force, etc., using resistance transducers.

Exercises and guided practices

GUIDED PRACTICAL EXERCISES INCLUDED IN THE MANUAL

  1. Study of the properties of NTC for the measurement of temperature.
  2. Study of the properties of PTC for the measurement of temperature.
  3. Study of the properties of LDR for the measurement of light intensity.
  4. Study of the properties of RTD for the measurement of temperature.
  5. Study of the properties of Strain Gauge for the measurement of deformation.

MORE PRACTICAL EXERCISES TO BE DONE WITH THE UNIT

  1. Several other exercises can be done and designed by the user.

REQUIRED ELEMENTS
