N-EM-SBP Pump System (Pressure)

6.2.2.2.- FLOW AND LEVEL CONTROL
PUMP SYSTEM (PRESSURE) - N-EM-SBP

INNOVATIVE SYSTEMS

"N-EM-SBP" represents a pressure system, which emulates two pumps that fills a tank.

See general description

Expansions

ICAI

Interactive Computer Aided Instruction Software

General Description

The "N-EM" are a series of emulators that provide the students the required hardware to emulate the most common automatic systems.

The "N-EM" modules are designed to work with the "AE-PLC" units to obtain the fundamental knowledge of PLC programing, PLC management, etc.

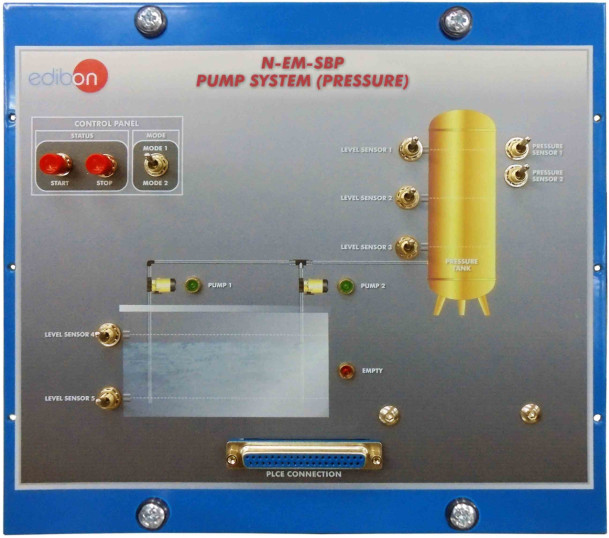

"N-EM-SBP" represents a pressure system, which emulates two pumps that fills a tank. The different switches and pushbuttons emulates the state of the three-phase contactor that control the pumps, the level sensors of the tank, the pressure sensor of the tank, etc.

Exercises and guided practices

GUIDED PRACTICAL EXERCISES INCLUDED IN THE MANUAL

All "N-EM" modules allow to perform the following practical exercises:

  1. Temporization.
  2. Counting.
  3. Sequential counting.
  4. All the practical exercises include the diagrams and the flow charts of the example programs used.
