N-EM-CNC Level and Flow Control

6.2.2.2.- FLOW AND LEVEL CONTROL

INNOVATIVE SYSTEMS

"N-EM-CNC" represents a level and flow control system composed by a pressurized circuit with a pneumatic valve that regulate the flow rate of the main water tank.

See general description

Catalog

Tender Specifications

Expansions

ICAI

Interactive Computer Aided Instruction Software

General Description

The "N-EM" are a series of emulators that provide the students the required hardware to emulate the most common automatic systems.

The "N-EM" modules are designed to work with the "AE-PLC" units to obtain the fundamental knowledge of PLC programing, PLC management, etc.

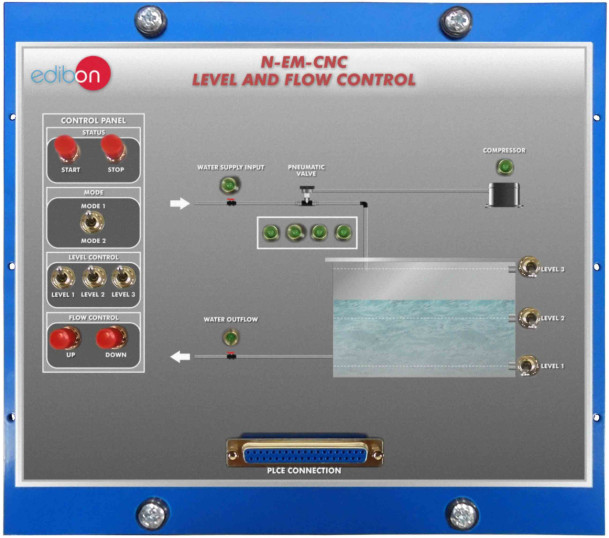

"N-EM-CNC" represents a level and flow control system composed by a pressurized circuit with a pneumatic valve that regulate the flow rate of the main water tank. The different switches and pushbuttons emulate the level sensors of the water tank.

Exercises and guided practices

GUIDED PRACTICAL EXERCISES INCLUDED IN THE MANUAL

All "N-EM" modules allow to perform the following practical exercises:

Temporization.
Counting.
Sequential counting.
All the practical exercises include the diagrams and the flow charts of the example programs used.

SUPPLEMENTARY EQUIPMENT

N-EM-SBAR

Available

6.2.2.2.- FLOW AND LEVEL CONTROL

N-EM-SBAR

Dirty-Water Pump System

The "N-EM" are a series of emulators that provide the students the required hardware to emulate the most common automatic systems.The "N-EM" modules are designed to work with the "AE-PLC" units to obtain the fundamental knowledge of PLC...
