TIPLB Plate Heat Exchanger for TICB

INNOVATIVE SYSTEMS

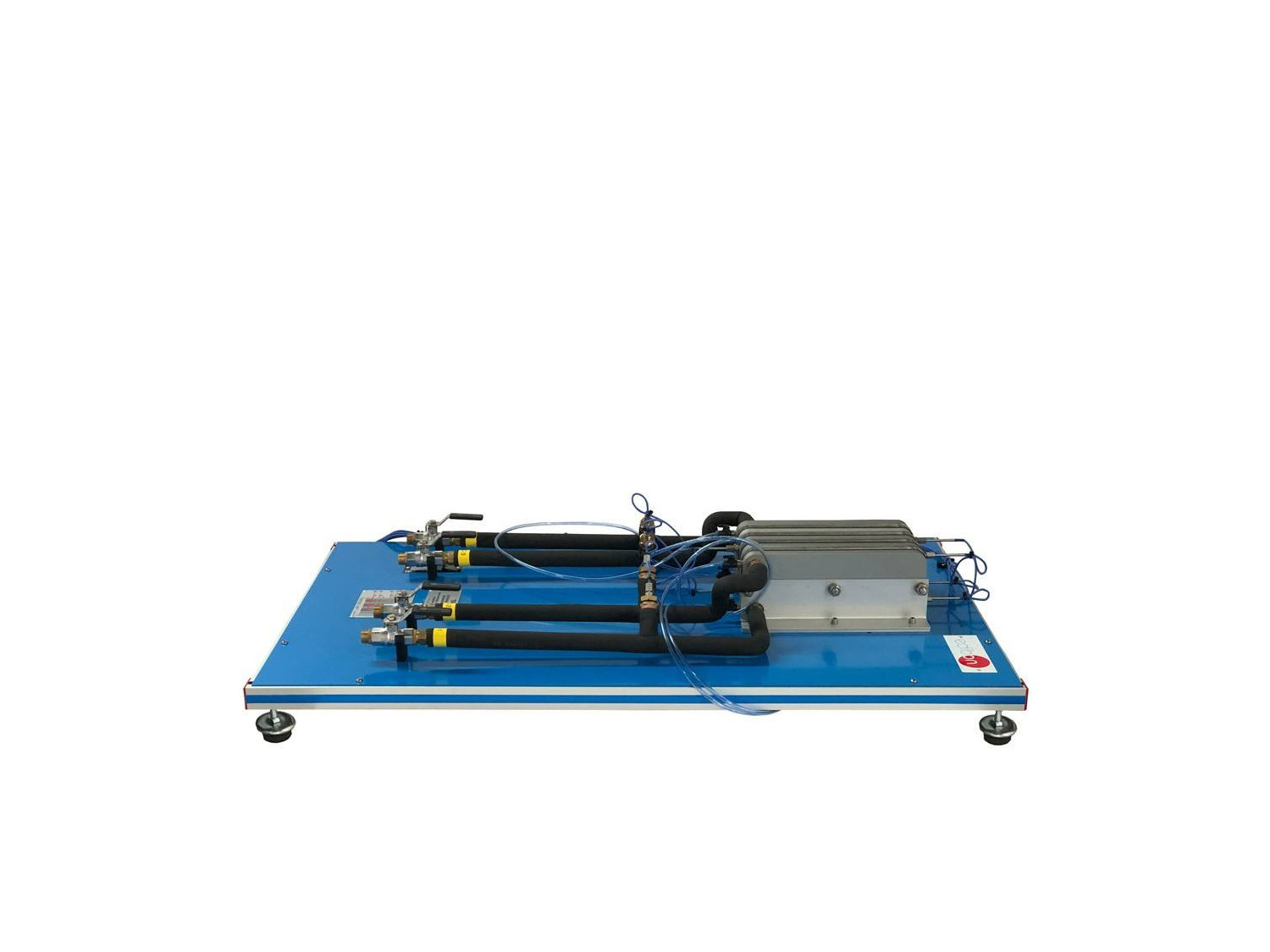

It has been designed to study the heat transfer between hot water and cold water flowing through alternate channels formed between parallel plates.

See general description

Catalog

Tender Specifications

Expansions

ICAI

Interactive Computer Aided Instruction Software

General Description

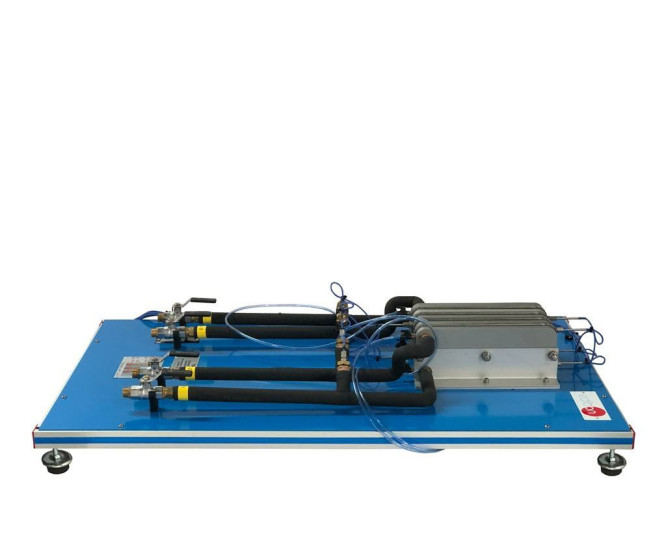

It has been designed to study the heat transfer between hot water and cold water flowing through alternate channels formed between parallel plates.

Exercises and guided practices

GUIDED PRACTICAL EXERCISES INCLUDED IN THE MANUAL

Global energy balance in the heat exchanger and the study of losses.
Exchanger effectiveness determination. NTU Method.
Study of the heat transfer under counter-current and co-current flow conditions.
Flow influence on the heat transfer. Reynolds number calculation.

INCLUDED ELEMENTS

TIPL

REQUIRED ELEMENTS

TIUSB

SIMILAR UNITS AVAILABLE

CONCENTRIC TUBE HEAT EXCHANGER FOR TICB - TITCB

TITCB

Available

9.7.- HEAT EXCHANGERS

TITCB

Concentric Tube Heat Exchanger for TICB

It has been designed to study the heat transfer between hot water flowing through an internal tube and cold water flowing through the annular area between the internal and the external tubes.

SHELL & TUBE HEAT EXCHANGER FOR TICB - TICTB

TICTB

Available

9.7.- HEAT EXCHANGERS

TICTB

Shell & Tube Heat Exchanger for TICB

It consists of a series of tubes inside the heat exchanger where hot water flows. The cooling water flows through the space between the inner tubes and the shell.

JACKETED VESSEL HEAT EXCHANGER FOR TICB - TIVEB

TIVEB

Available

9.7.- HEAT EXCHANGERS

TIVEB

Jacketed Vessel Heat Exchanger for TICB

TIVEB. Jacketed Vessel Heat Exchanger for TICB: Allows the study of heat transfer between hot water flowing through a jacket and the cold water contained in a vessel.

COIL VESSEL HEAT EXCHANGER FOR TICB - TIVSB

TIVSB

Available

9.7.- HEAT EXCHANGERS

TIVSB

Coil Vessel Heat Exchanger for TICB

Allows the study of heat transfer between hot water flowing through a coil and cold water contained in the vessel.

TURBULENT FLOW HEAT EXCHANGER FOR TICB - TIFTB

TIFTB

Available

9.7.- HEAT EXCHANGERS

TIFTB

Turbulent Flow Heat Exchanger for TICB

Let us study the heat transfer between hot water that circulates through an internal tube and cold water that flows through the annular zone between the internal and the external tube.

EXTENDED CONCENTRIC TUBE HEAT EXCHANGER FOR TICB - TITCAB

TITCAB

Available

9.7.- HEAT EXCHANGERS

TITCAB

Extended Concentric Tube Heat Exchanger for TICB

It has been designed to study the heat transfer between hot water flowing through an internal tube and cold water flowing through the annular area between the internal and the external tubes.

EXTENDED PLATE HEAT EXCHANGER FOR TICB - TIPLAB

TIPLAB

Available

9.7.- HEAT EXCHANGERS

TIPLAB

Extended Plate Heat Exchanger for TICB

It has been designed to study the heat transfer between hot water and cold water flowing through alternate channels formed between parallel plates.

CROSS FLOW HEAT EXCHANGER FOR TICB - TICFB

TICFB

Available

9.7.- HEAT EXCHANGERS

TICFB

Cross Flow Heat Exchanger for TICB

Designed to study heat transfer between two fluids in cross flow configuration. Hot water flow coming from the base unit enters and leaves a radiator perpendicular to an air current, which is generated by a fan.

SUPPLEMENTARY EQUIPMENT

COMPUTER CONTROLLED HEAT EXCHANGERS TRAINING SYSTEM - TICC

TICC

Available

9.7.- HEAT EXCHANGERS

TICC

Computer Controlled Heat Exchangers Training System

Heat exchangers are widely used in refrigeration, air conditioning, heating, energy generation, chemical processing, etc. They have many applications in engineering and, as a consequence, there are many models adapted to each application to obtain...

TIUS

Available

9.7.- HEAT EXCHANGERS

TIUS

Base Service Unit (Common for all available Heat Exchangers type "TI")

This unit is common for Heat Exchangers type "TI" and can work with one or several exchangers.This unit performs the following tasks:Heating water in a computer controlled thermostatic bath.Pumping the hot water.Regulation and measurement of the...

CONCENTRIC TUBE HEAT EXCHANGER FOR TICC - TITC

TITC

Available

9.7.- HEAT EXCHANGERS

TITC

Concentric Tube Heat Exchanger for TICC

Concentric Tube Heat Exchanger for TICC: It has been designed to study the heat transfer between hot water flowing through an internal tube and cold water flowing through the annular area between the internal and the external tubes.

TITCA

Available

9.7.- HEAT EXCHANGERS

TITCA

Extended Concentric Tube Heat Exchanger for TICC

Extended Concentric Tube Heat Exchanger for TICC: It has been designed to study the heat transfer between hot water flowing through an internal tube and cold water flowing through the annular area between the internal and the external tubes.

TIPL

Available

9.7.- HEAT EXCHANGERS

TIPL

Plate Heat Exchanger for TICC

Plate Heat Exchanger for TICC: It has been designed to study the heat transfer between hot water and cold water flowing through alternate channels formed between parallel plates.

TIPLA

Available

9.7.- HEAT EXCHANGERS

TIPLA

Extended Plate Heat Exchanger for TICC

Extended Plate Heat Exchanger for TICC: It has been designed to study the heat transfer between hot water and cold water flowing through alternate channels formed between parallel plates.

SHELL & TUBE HEAT EXCHANGER FOR TICC - TICT

TICT

Available

9.7.- HEAT EXCHANGERS

TICT

Shell & Tube Heat Exchanger for TICC

Shell and Tube Heat Exchanger for TICC: It consists of a series of tubes inside the heat exchanger where hot water flows. The cooling water flows through the space between the inner tubes and the shell.

JACKETED VESSEL HEAT EXCHANGER FOR TICC - TIVE

TIVE

Available

9.7.- HEAT EXCHANGERS

TIVE

Jacketed Vessel Heat Exchanger for TICC

Jacketed Vessel Heat Exchanger for TICC: Allows the study of heat transfer between hot water flowing through a jacket and thecold water contained in a vessel.

COIL VESSEL HEAT EXCHANGER FOR TICC - TIVS

TIVS

Available

9.7.- HEAT EXCHANGERS

TIVS

Coil Vessel Heat Exchanger for TICC

Coil Vessel Heat Exchanger for TICC: Allows the study of heat transfer between hot water flowing through a coil and cold water contained in the vessel.

TURBULENT FLOW HEAT EXCHANGER FOR TICC - TIFT

TIFT

Available

9.7.- HEAT EXCHANGERS

TIFT

Turbulent Flow Heat Exchanger for TICC

Turbulent Flow Heat Exchanger for TICC: Let us study the heat transfer between hot water that circulates through an internal tube and cold water that flows through the annular zone between the internal and the external tube.

CROSS FLOW HEAT EXCHANGER FOR TICC - TICF

TICF

Available

9.7.- HEAT EXCHANGERS

TICF

Cross Flow Heat Exchanger for TICC

Cross Flow Heat Exchanger for TICC: Designed to study heat transfer between two fluids in cross flow configuration. Hot water flow coming from the base unit enters and leaves a radiator perpendicular to an air current, which is generated by a fan.

TICB

Available

9.7.- HEAT EXCHANGERS

TICB

Heat exchanger Training System
