FME16 Pelton Turbine

8.1.7.- HYDRAULIC MACHINES: TURBINES

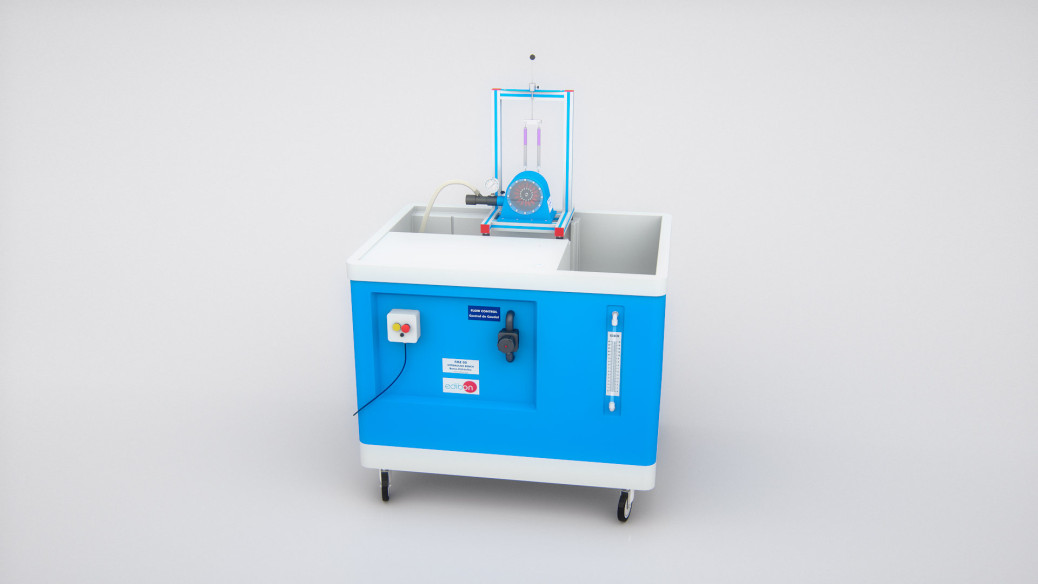

Complete FME16 Unit

INNOVATIVE SYSTEMS

This module comprises a miniature Pelton’s Turbine with a retractable needle valve that allows to adjust the flow.

See general description

Catalog

Tender Specifications

Expansions

ICAI

Interactive Computer Aided Instruction Software

MSAC

Modular System for Acquisition and Control

Laboratories

8TV

Technical and Vocational Education Fluid Mechanics Laboratory

8HE

Higher Education Fluid Mechanics Laboratory

11PTC

Petroleum Training Center Laboratory

General Description

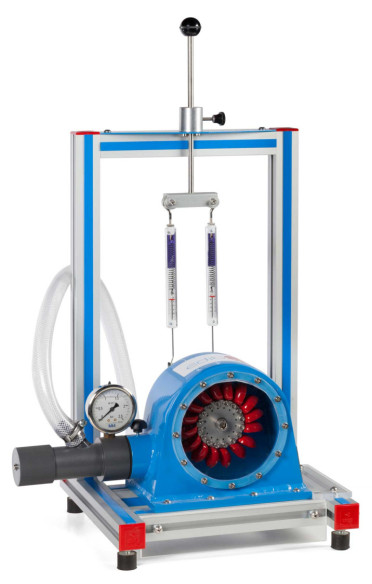

This module comprises a miniature Pelton’s Turbine with a retractable needle valve that allows to adjust the flow.

The Pelton’s Turbine runner is clearly visible through the transparent cover of the turbine.

A manometer placed at the inlet of the turbine enables to measure the inlet pressure at that point (water discharge pressure).

A band brake, connected to two dynamometers allows varying the load supplied to the turbine by means of a connection device.

The turbine axis velocity is determined by an optic tachometer.

Exercises and guided practices

GUIDED PRACTICAL EXERCISES INCLUDED IN THE MANUAL

Determination of the operative characteristics of the Pelton Turbine.
Determination of the operation mechanical curves.
Determination of the operation hydraulic curves.
Adimensionalization.

REQUIRED ELEMENTS
