FME27 Axial Flow Turbine

8.1.7.- HYDRAULIC MACHINES: TURBINES
AXIAL FLOW TURBINE - FME27

Complete FME27 Unit

AXIAL FLOW TURBINE - FME27

FME27 Unit with service unit FME00

AXIAL FLOW TURBINE - FME27
AXIAL FLOW TURBINE - FME27

INNOVATIVE SYSTEMS

With the Axial Turbine, "FME27", designed by EDIBON, it is possible to study and to understand the axial flow turbines which, unlike the radial flow turbines, the working fluid is parallel to the axis of rotation.

See general description

Expansions

ICAI

Interactive Computer Aided Instruction Software
MSAC

Modular System for Acquisition and Control

Laboratories

8TV
 Technical and Vocational Education Fluid Mechanics Laboratory
8HE
 Higher Education Fluid Mechanics Laboratory
11PTC
 Petroleum Training Center Laboratory

RELATED NEWS

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Read more
NEW Fluid Mechanics Course
NEW Fluid Mechanics Course
Are you a teacher or do you work as an engineering researcher? EDIBON offers courses for teachers and #research staff. Take a look at the course of Fluid Mechanics and learn about #fluids properties. #DiscoverEdibon #Engineering.
Read more

General Description

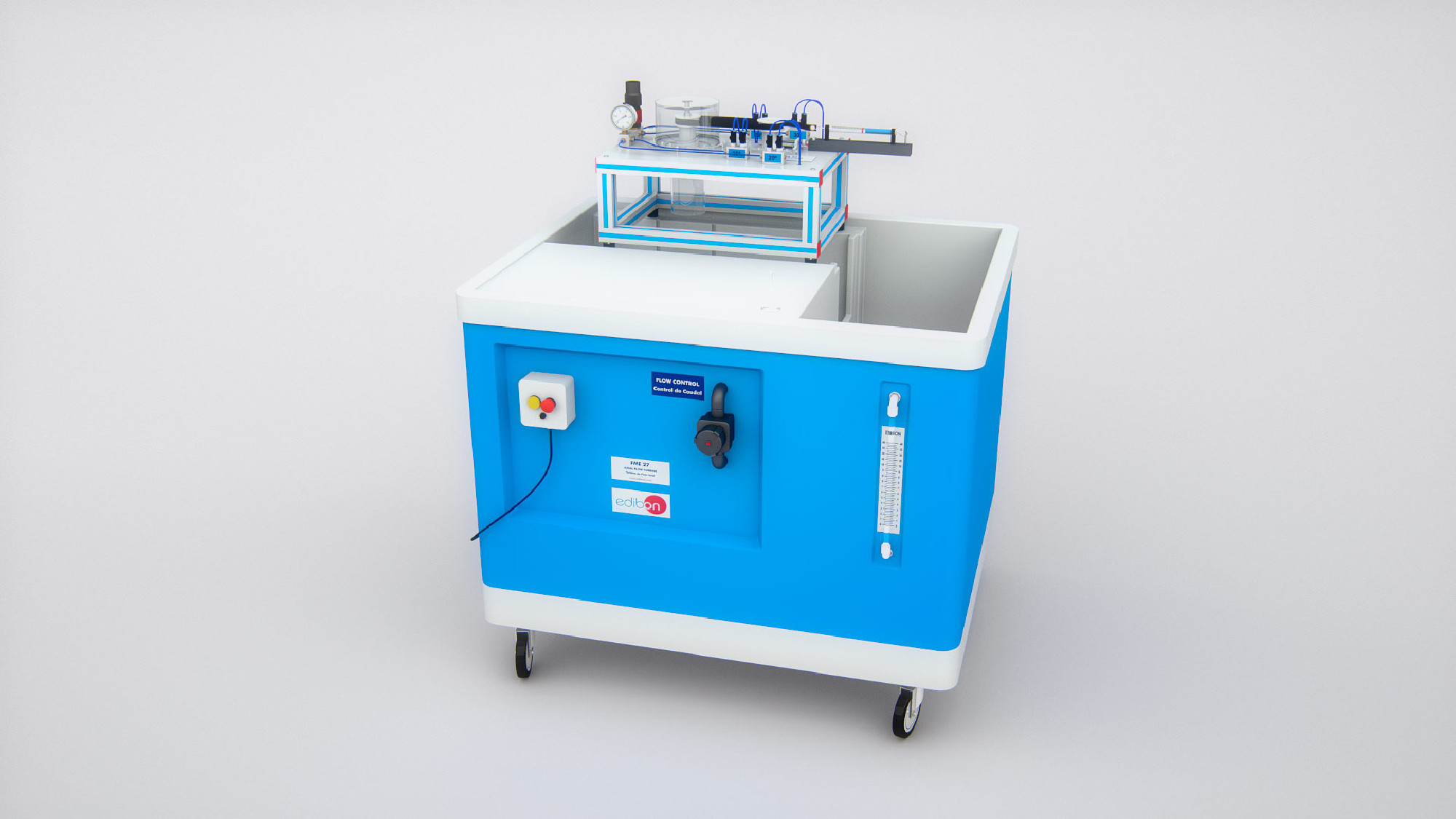

With the Axial Turbine, "FME27", designed by EDIBON, it is possible to study and to understand the axial flow turbines which, unlike the radial flow turbines, the working fluid is parallel to the axis of rotation.

This unit consists of an axial turbine in miniature with eight inclined nozzles at 20° and 30° degrees with respect to the perpendicular direction at the rotating axis.

The pallets of the turbine runner are clearly visible through the transparent tank.

A band brake connected to one load cell varying the load given to the turbine by means of a connection device.

Exercises and guided practices

GUIDED PRACTICAL EXERCISES INCLUDED IN THE MANUAL

  1. Flow calculation.
  2. Determination of the discharge coefficient of the nozzle.
  3. Determination of the curve N (Q,n), Pm (Q, n) and h (Q, n), (20° nozzle).
  4. Determination of the curve N (Q,n), Pm (Q, n) and h (Q, n), (30° nozzle).
  5. Adimensional analysis.

REQUIRED ELEMENTS

SIMILAR UNITS AVAILABLE

COMPUTER CONTROLLED AXIAL FLOW TURBINE - TFAC
