FME01 Jet Impact on Surfaces
INNOVATIVE SYSTEMS
The Jet Impact on Surfaces unit, "FME01", designed by EDIBON, allows to obtain experimental force measurements exerted by a jet on different surfaces and to compare the values with the theoretical results.
Expansions
Laboratories
RELATED NEWS
General Description
The Jet Impact on Surfaces unit, "FME01", designed by EDIBON, allows to obtain experimental force measurements exerted by a jet on different surfaces and to compare the values with the theoretical results.

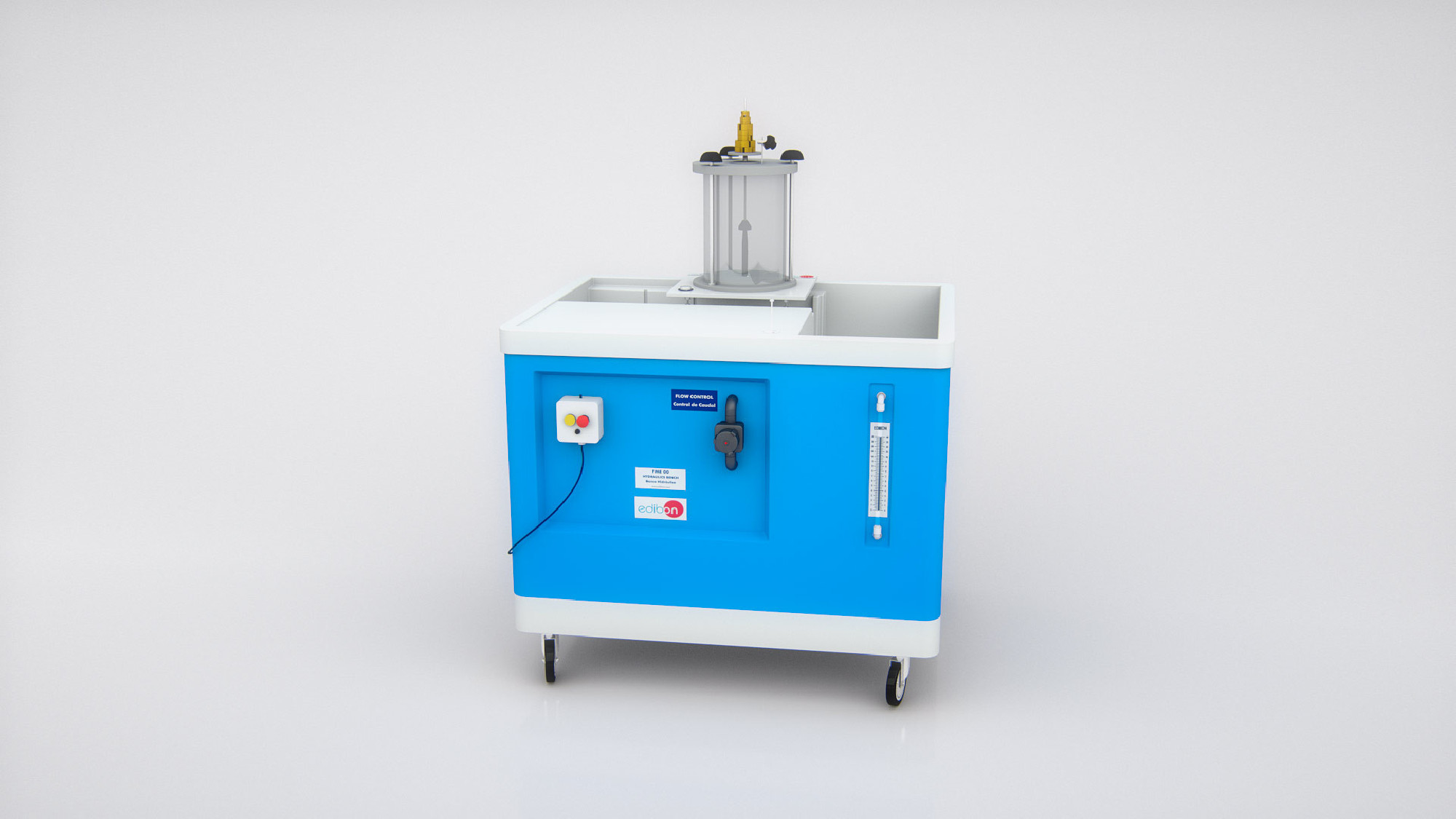

The unit consists of a cylindrical tank with lateral transparent surfaces where a nozzle, connected to the Hydraulics Bench (FME00), is aligned with a device in which the problem surface is fitted. The vertical force made by the water against the surface is measured using calibrated weights that balance this force. Taking as a reference a gauge, which has been previously adjusted to a zero reference, we measure the force thanks to a mark that appears on the surface where the masses were placed.
Adjustable supports that let the device balance.
Holes made on the tank base in order to drain the water. In this way, splashes are avoided.
Exercises and guided practices
GUIDED PRACTICAL EXERCISES INCLUDED IN THE MANUAL
- Impact against a flat surface.
- Impact against a curve surface of 120°.
- Impact against a hemispherical surface.
- Use of the fast connectors.
