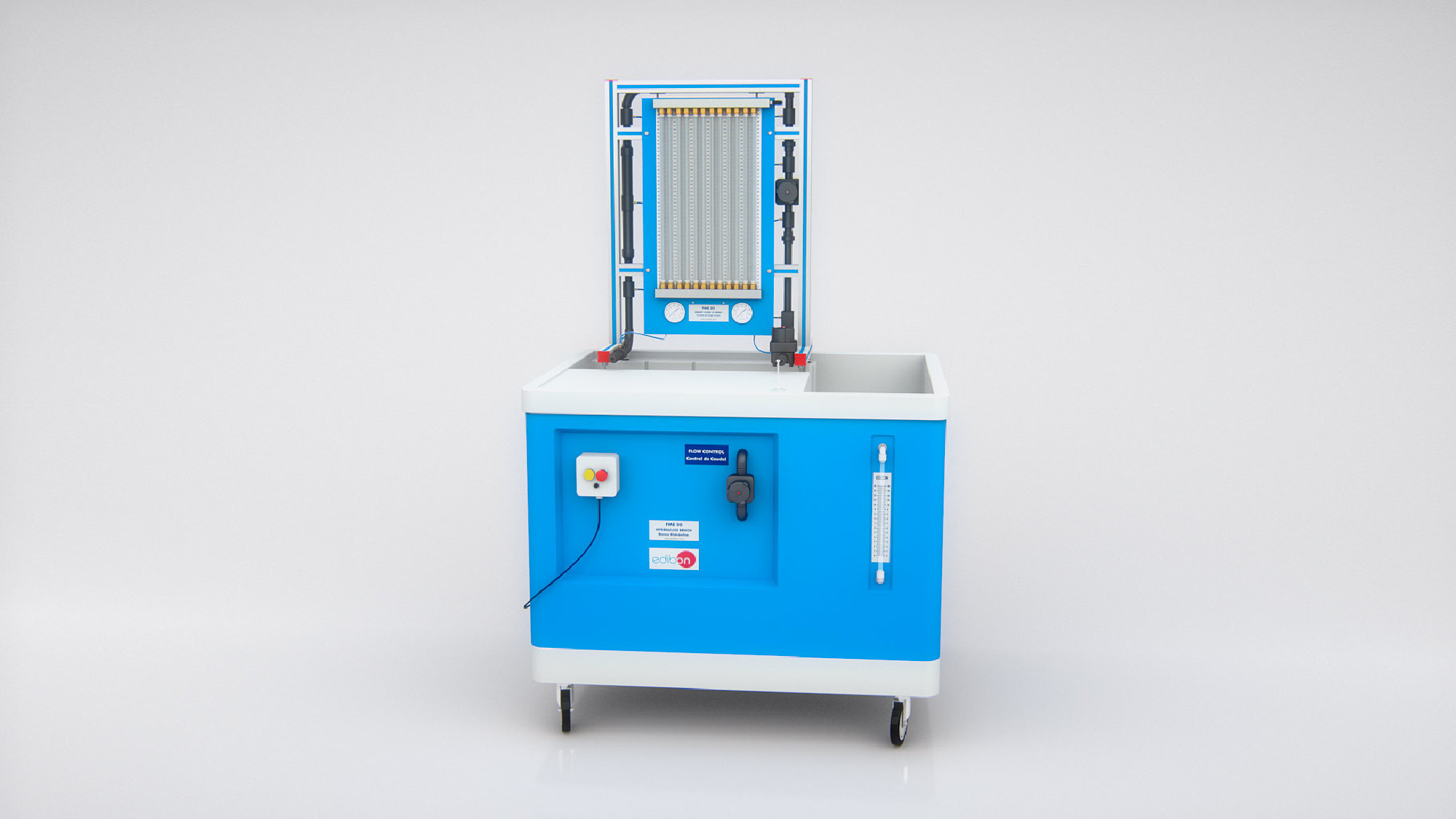

FME05 Unit with service unit FME00

ENERGY LOSSES IN BENDS - FME05
ENERGY LOSSES IN BENDS - FME05

INNOVATIVE SYSTEMS

The Energy Losses in Bends, "FME05", designed by EDIBON, allows the study of how sudden section variations, directional changes, and friction affect fluid flow within a pipeline. It enables the analysis of how different hydraulic elements create disturbances in fluid movement, providing a deeper understanding of energy losses in piping systems and their impact on flow efficiency.

See general description

RELATED NEWS

General Description

The Energy Losses in Bends, "FME05", designed by EDIBON, allows the study of how sudden section variations, directional changes, and friction affect fluid flow within a pipeline. It enables the analysis of how different hydraulic elements create disturbances in fluid movement, providing a deeper understanding of energy losses in piping systems and their impact on flow efficiency. The inlet flow is supplied either by the Hydraulic Bench, "FME00", or the Basic Hydraulic Feed System, "FME00/B".

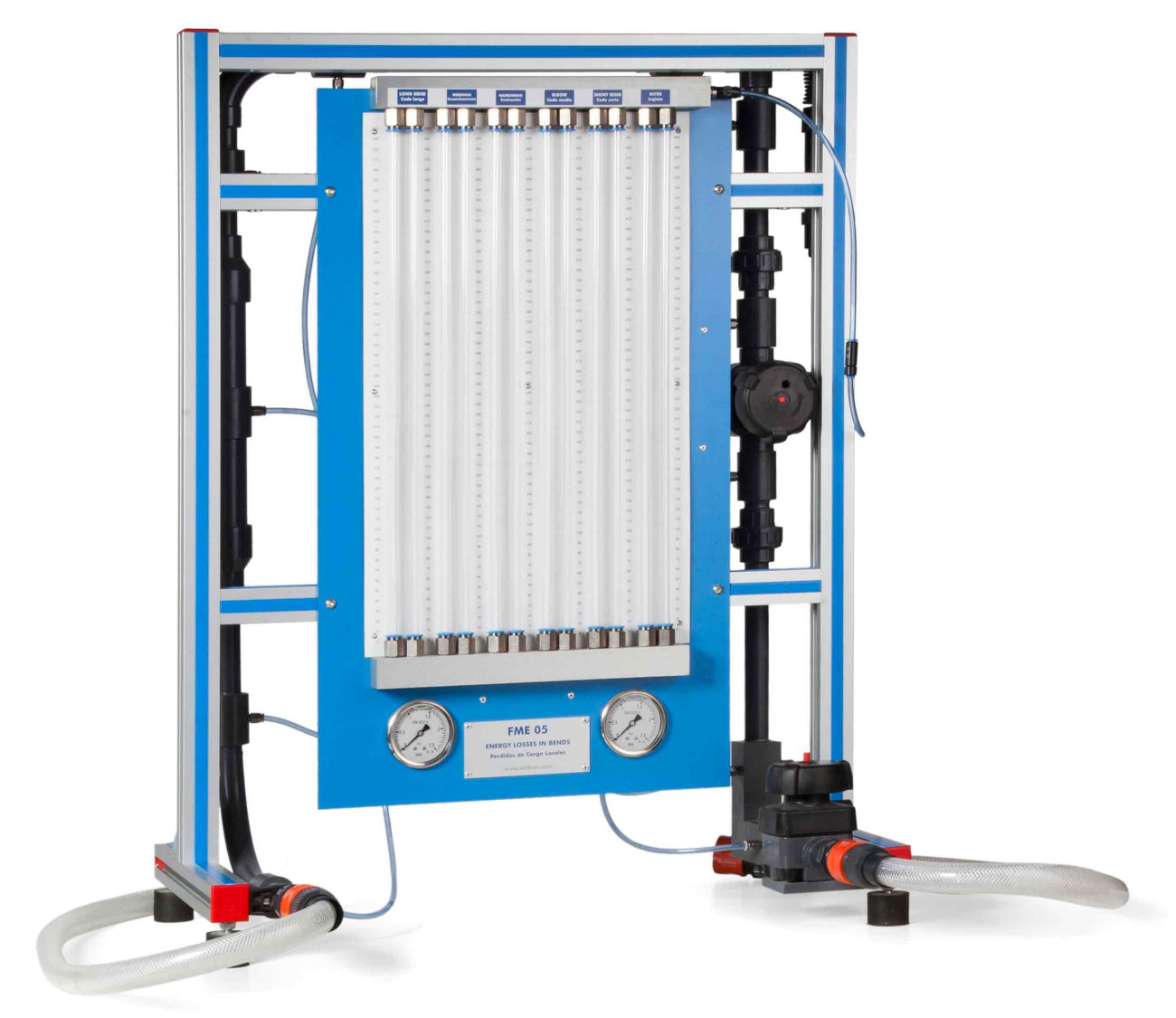

The FME05 features a hydraulic circuit that includes two 90° elbows (short and medium), a long-radius 90° bend, an expansion, a sudden contraction, and a sharp directional change, allowing for the study of local head losses in different elements. For precise pressure and head loss measurements, the unit incorporates twelve pressurized water manometric tubes, two Bourdon-type pressure gauges (0 – 2.5 bar), and a manual air pump to pressurize the system. Additionally, it includes strategically placed pressure taps and two diaphragm valves to regulate the outlet flow and control the circuit’s hydraulic conditions, facilitating experimentation under various flow scenarios.

Exercises and guided practices

GUIDED PRACTICAL EXERCISES INCLUDED IN THE MANUAL

  1. Measurement of head in flow direction diverting fittings.
  2. Measurement of head losses in widened and narrowed sections.
  3. Measurement of head in a diaphragm valve.

MORE PRACTICAL EXERCISES TO BE DONE WITH THE UNIT

  1. Filling of the manometric tubes.
  2. Measurement of the flow.
  3. Measurement of load losses for a short elbow of 90°.
  4. Measurement of load losses for a medium elbow of 90°.
  5. Measurement of load losses for a curve of 90°.
  6. Measurement of load losses for a broadening of 25/40.
  7. Measurement of load losses for a narrowing 40/25.
  8. Measurement of load losses for a miter type abrupt direction change.
  9. Measurement of load losses for a membrane valve.
