With the Electronics for Motors and Generators Unit, "M99-6", designed by EDIBON, the student is allowed to learn the most important concepts related to motors and generators and the differences between them.

See general description

Catalog

Tender Specifications

Expansions

ICAI

Interactive Computer Aided Instruction Software

Laboratories

2TV

Technical and Vocational Education Electronics Laboratory

2HE

Electronics Laboratory for Higher Education

11PTC

Petroleum Training Center Laboratory

General Description

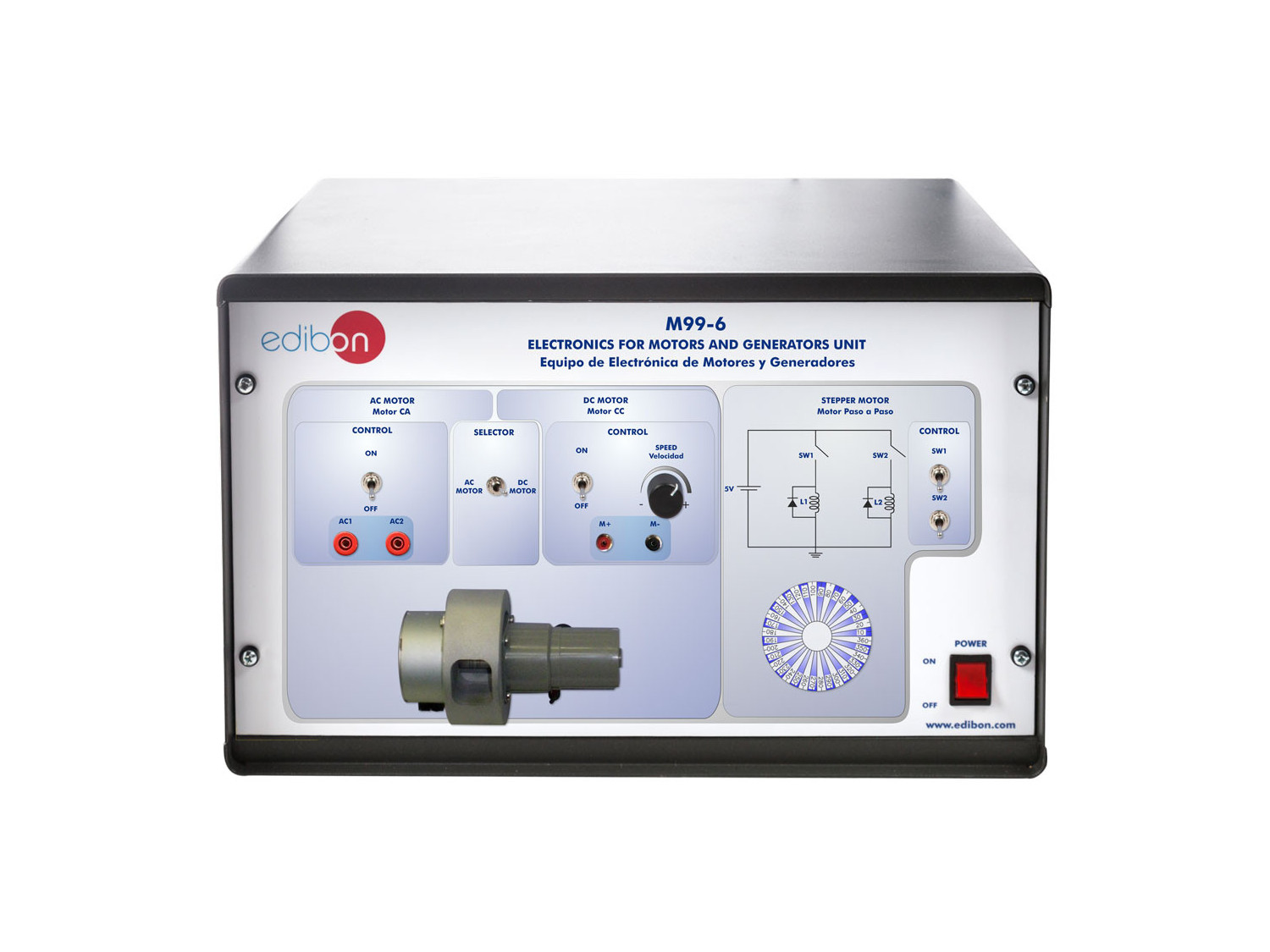

The Electronics for Motors and Generators Unit, "M99-6", designed by EDIBON, enables to carry out different practices related with motors and generators. The unit has different different types of motors: DC motor, AC motor and stepper motor.

The "M99-6" unit mainly consists of:

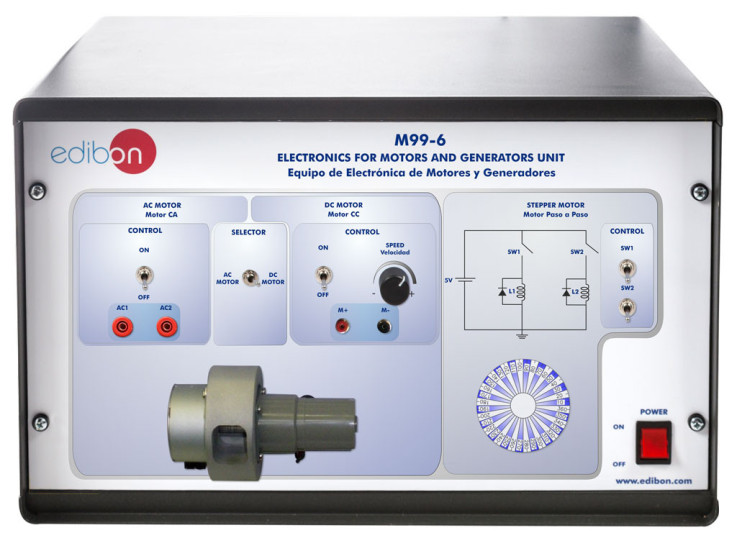

DC Motor. Includes a potentiometer to control the speed of the motor. There is a switch to enable the motor to run. The voltage internally applied to the motor or generated can be observe using the "M+" and "M-" terminals.
AC Motor. Includes a switch to enable the motor to run. The voltage internally applied to the motor or generated can be observe using the "AC1" and "AC2" terminals.
Stepper Motor. Includes two switches to control the rotation of the motor. To perform a rotation some determined steps must be carried out.

The unit is provided with a set of practices through which the user will understand how to work different electronics circuits.

Exercises and guided practices

GUIDED PRACTICAL EXERCISES INCLUDED IN THE MANUAL

DC Motor.
AC Motor.
DC Generator.
AC Generator.
Stepper motor.

SUPPLEMENTARY EQUIPMENT

BASIC ELECTRONICS AND ELECTRICITY LABORATORY - LIEBA

LIEBA

Available

14.2.1.6.- POWER ELECTRONICS

LIEBA

Basic Electronics and Electricity Laboratory

We present a flexible and modular-based system for learning basic electronics, basic electricity and circuit theory. The advantage given by this learning and teaching system is that the student establishes his own rhythm, thus rendering...

DIRECT CURRENT (DC) CIRCUITS MODULE - N-M1

N-M1

Available

14.2.1.1.- BASIC ELECTRICAL LAWS CONCEPTS

N-M1

Direct Current (DC) Circuits Module

For the correct understanding of electronics it is necessary to know some fundamental laws and theorems such as Ohm’s Law, Kirchhoff’s Laws and other simple theorems of initiation to D.C. circuits.With Direct Current (D.C.) Circuits Module,...

ALTERNATING CURRENT (AC) CIRCUITS MODULE - N-M2

N-M2

Available

14.2.1.1.- BASIC ELECTRICAL LAWS CONCEPTS

N-M2

Alternating Current (AC) Circuits Module

In contrast to DC, which always has the same direction and sense, in AC the flow of electrons changes direction periodically with a frequency of 50 or 60 Hz (depending on the country).With Alternating Current (AC) Circuits Module, "N-M2", designed...

N-M16

Available

14.2.1.1.- BASIC ELECTRICAL LAWS CONCEPTS

N-M16

Electric Networks Module

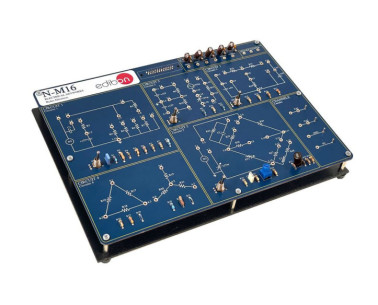

After studying the basic knowledge of electrical networks, we must understand and investigate the dependence between current and voltage applied to different electrical devices.With the Electric Networks Module, "N-M16", designed by EDIBON, it is...

N-M17

Available

14.2.1.1.- BASIC ELECTRICAL LAWS CONCEPTS

N-M17

Electromagnetism Module

Electromagnetism is the interaction between electric charges. It is described in terms of charges interacting between of electric and magnetic fields.With the Electromagnetism Module, "N-M17", designed by EDIBON, the operation of electromagnetic...

N-M18

Available

14.2.1.1.- BASIC ELECTRICAL LAWS CONCEPTS

N-M18

Three-phase Circuits Module

Three-phase voltage is essentially a system of three alternating voltages, coupled (all 3 are produced simultaneously in a generator) and 120º out of phase with each other (i.e. one third of the period).The Three-phase Circuits Module, "N-M18",...
