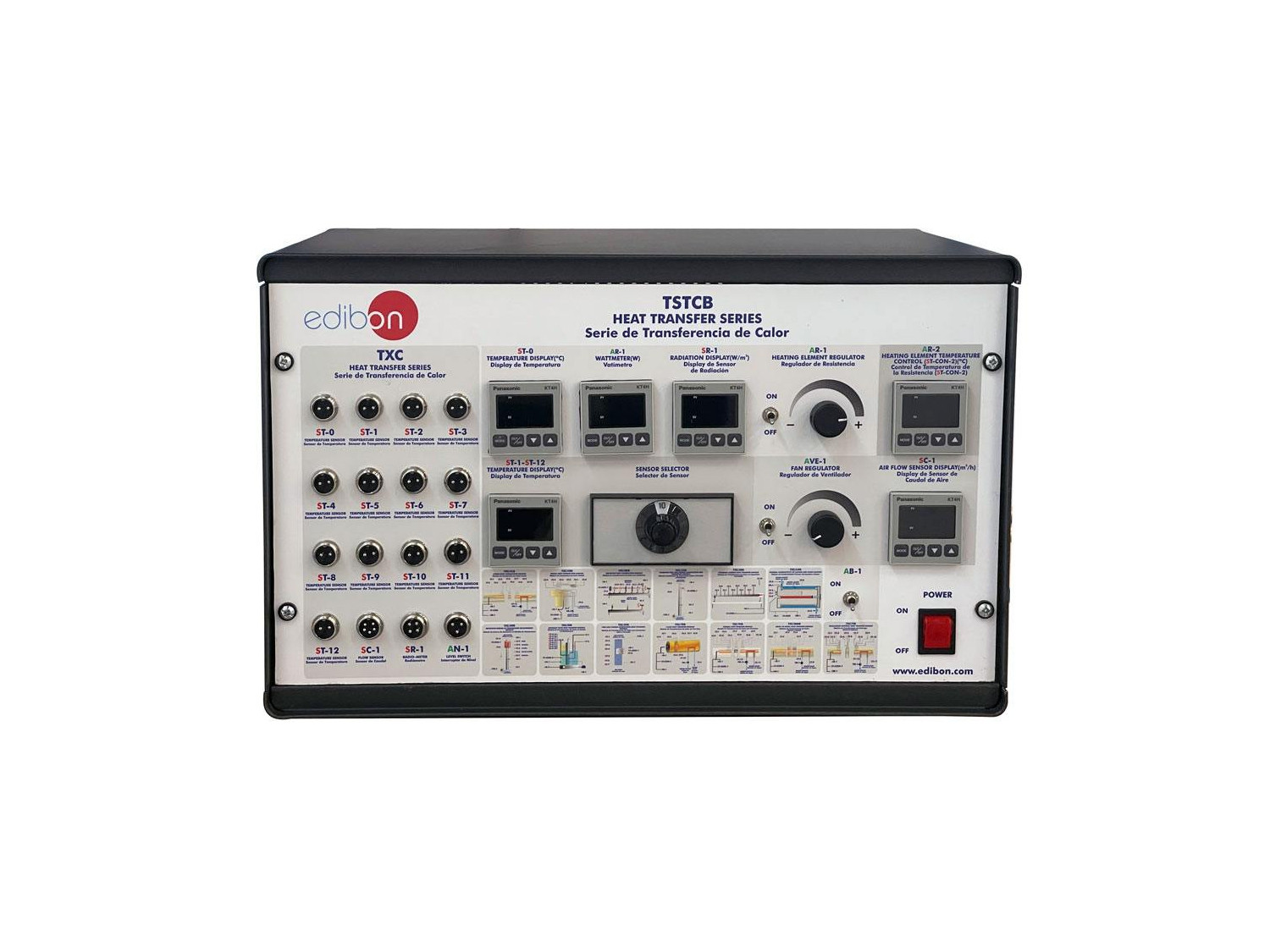

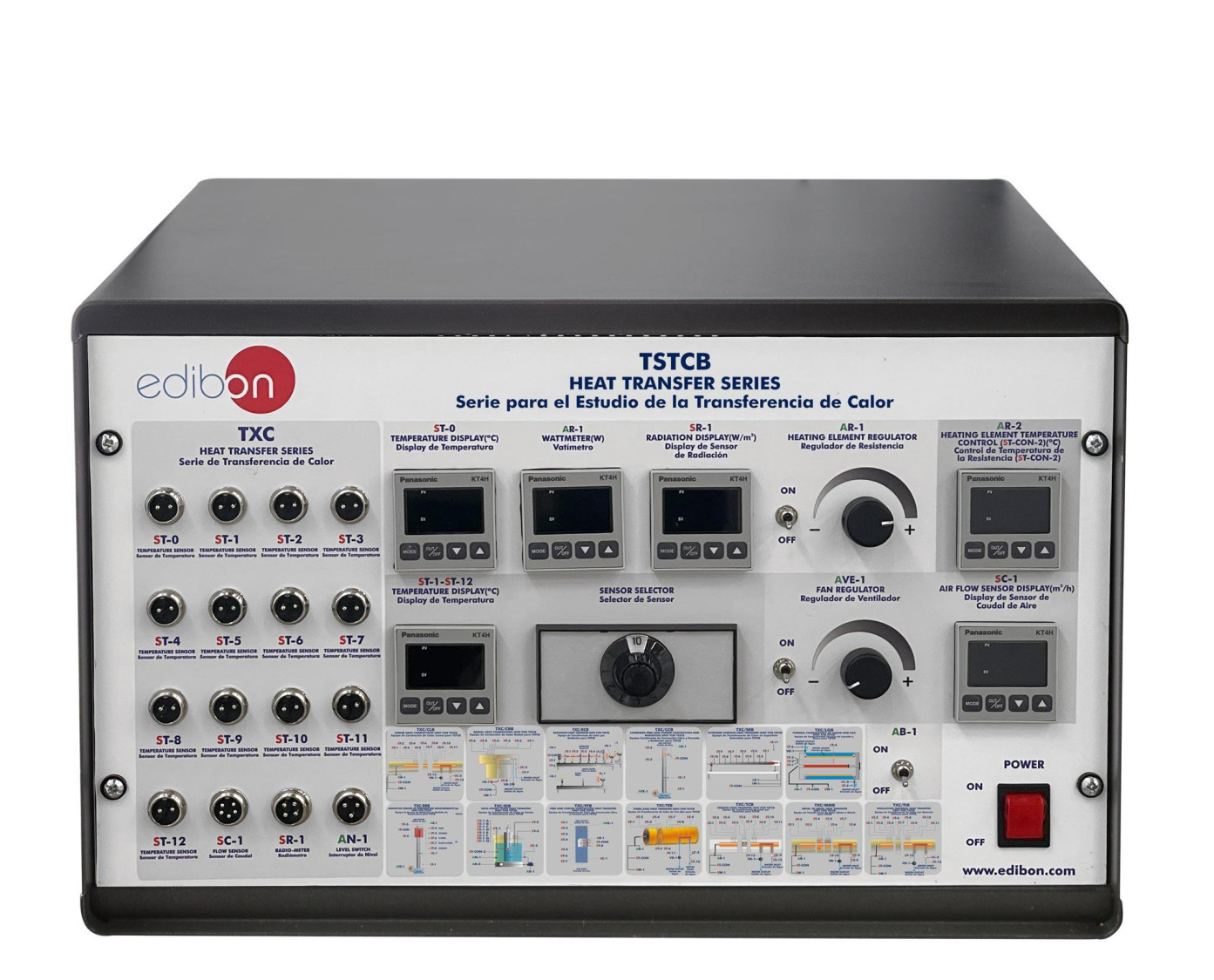

TSTCB/EC Electronic Console (Common for available Modules type "TXC/...B")

ELECTRONIC CONSOLE (COMMON FOR AVAILABLE MODULES TYPE "TXC/...B") - TSTCB/EC

INNOVATIVE SYSTEMS

The Heat Transfer Series, "TSTCB," has been designed by EDIBON to study and compare different types of heat transfer on a small scale. It allows a wide range of heat transfer demonstrations and study the factors affecting and problems associated with different types of heat transfer.

See general description

General Description

The Heat Transfer Series, "TSTCB," has been designed by EDIBON to study and compare different types of heat transfer on a small scale. It allows a wide range of heat transfer demonstrations and study the factors affecting and problems associated with different types of heat transfer.

The minimum supply consists of two main elements: Electronic Console for TSTCB (Common for all "TXC/..B" type modules), "TSTCB/EC", and at least one of the required elements described below.

Each heat transfer module can be individually connected to the Electronic Console for TSTCB (Common for all "TXC/..B" type modules) "TSTCB/EC", which provides the necessary electrical supply and instrumentation connections for the study of the different types of heat transfer.

Elements required (at least one) (Not included):

  • TXC/CLB. Linear Heat Conduction Module for TSTCB.
  • TXC/CRB. Radial Heat Conduction Module for TSTCB.
  • TXC/RCB. Radiation Heat Transfer Module for TSTCB.
  • TXC/CCB. Combined Free and Forced Convection and Radiation Module for TSTCB.
  • TXC/SEB. Extended Surface Heat Transfer Module for TSTCB.
  • TXC/ERB. Radiation Errors in Temperature Measurement Module for TSTCB.
  • TXC/EIB. Unsteady State Heat Transfer Module for TSTCB.
  • TXC/LGB. Thermal Conductivity of Liquids and Gases Module for TSTCB.
  • TXC/FFB. Free and Forced Convection Heat Transfer Module for TSTCB.
  • TXC/TEB. Three Axes Heat Transfer Module for TSTCB.
  • TXC/MMB. Metal to Metal Heat Transfer Module for TSTCB.
  • TXC/TCB. Ceramic Heat Transfer Module for TSTCB.
  • TXC/TIB. Insulating Material Heat Transfer Module for TSTCB.
