The Thermal Solar Energy Unit, "EEST", is a system that transforms solar energy into usable thermal energy.

See general description

General Description

The Thermal Solar Energy Unit, "EEST", is a system that transforms solar energy into usable thermal energy. It uses the thermosiphon solar system to heat water or the traditional pumping system. In both cases, the absorbed thermal energy is given by the simulated solar radiation, in our case, it is done using a panel with powerful luminous sources.

The EEST unit mainly consists of the following elements:

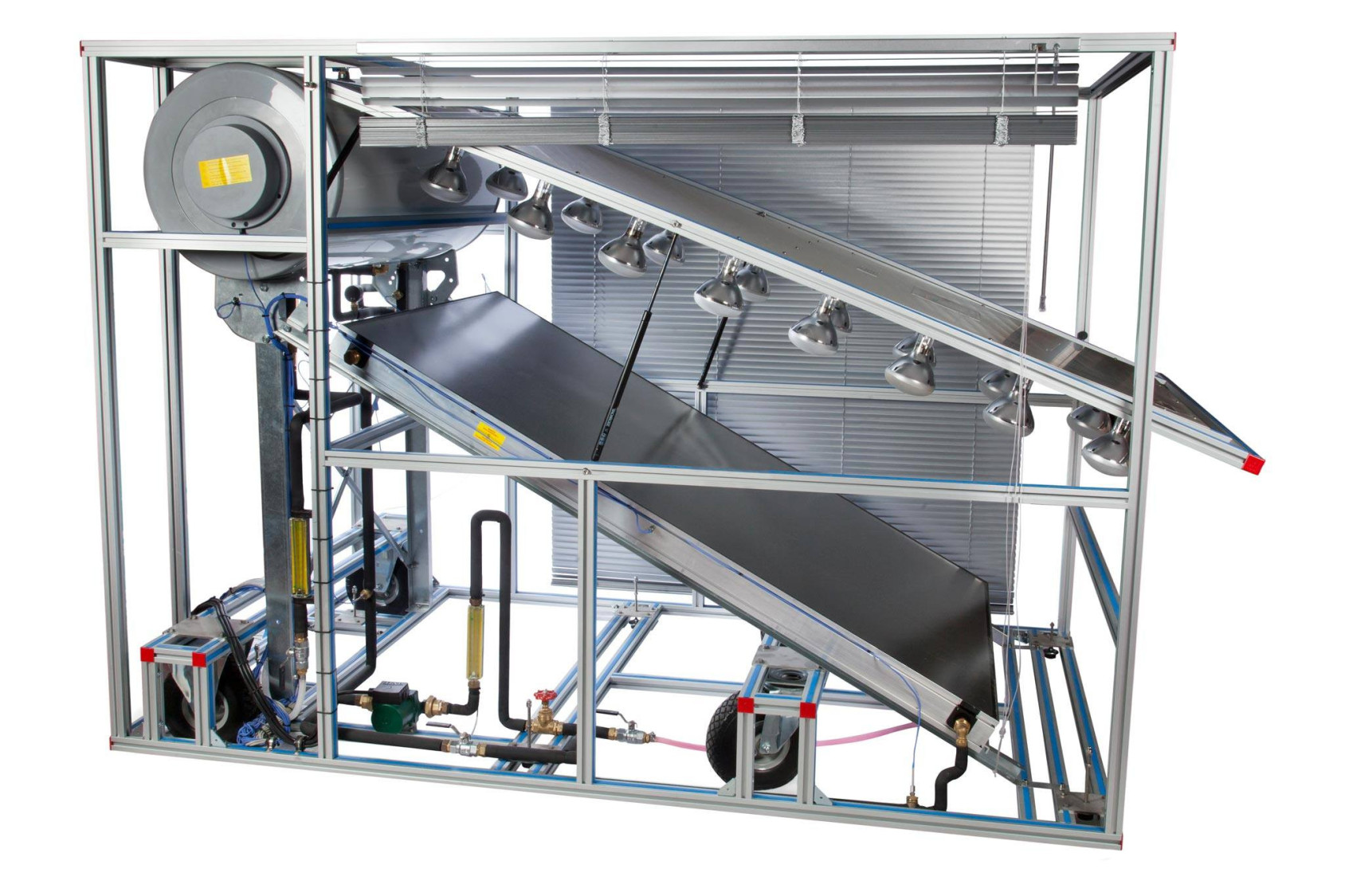

  • Thermal solar collector.
  • Accumulator tank.
  • Solar simulator.
  • Pumping system.

The solar collector is mounted on an aluminum frame and the fluid (water) flows through cooper tubes. It has been developed in such a way that the geometrical shape of the surface allows the most efficient absorption.

The accumulator tank is protected with an anti-corrosive material. It has a heating element with a safety device to prevent over-temperatures.

Lamps of the solar simulator emit radiation similar to the sun radiation and allows a range of exercises to be carried out in the laboratory.

The light is converted into heat in the solar collector and transferred to the heat transfer fluid. Three different configurations can be simulated with the solar simulator: all the lamps are turned on, half of the lamps are turned on in zigzag, or only one lamp is turned on.

Besides, the unit includes a pump to perform a forced convection of the heat transfer fluid through the accumulator tank.

The unit is fitted with sensors and meters to record the relevant parameters (temperature and flow) and are included safety valves for overpressure protection.

Exercises and guided practices

GUIDED PRACTICAL EXERCISES INCLUDED IN THE MANUAL

  1. Study of the thermosiphon operation.
  2. Study of the luminosity profile of the lamps.
  3. Study of the efficiency of the solar panel.
  4. Study of the influence of the tilt angle of the lamps panel on the unit efficiency.
  5. Study of relation between the flow and the temperature.
  6. Study of energy balance of the solar collector.
  7. Study of energy balance of the accumulator tank.
  8. Determination of the experimental efficiency.
  9. Study of the influence of the angle of incidence on the temperature.
