N-EM-CB Pump Control

6.2.2.1.- MANUFACTURING SYSTEMS
PUMP CONTROL - N-EM-CB

INNOVATIVE SYSTEMS

"N-EM-CB" represets the automatic control of four pumps that fills a tank.

See general description

Expansions

ICAI

Interactive Computer Aided Instruction Software

General Description

The "N-EM" are a series of emulators that provide the students the required hardware to emulate the most common automatic systems.

The "N-EM" modules are designed to work with the "AE-PLC" units to obtain the fundamental knowledge of PLC programing, PLC management, etc.

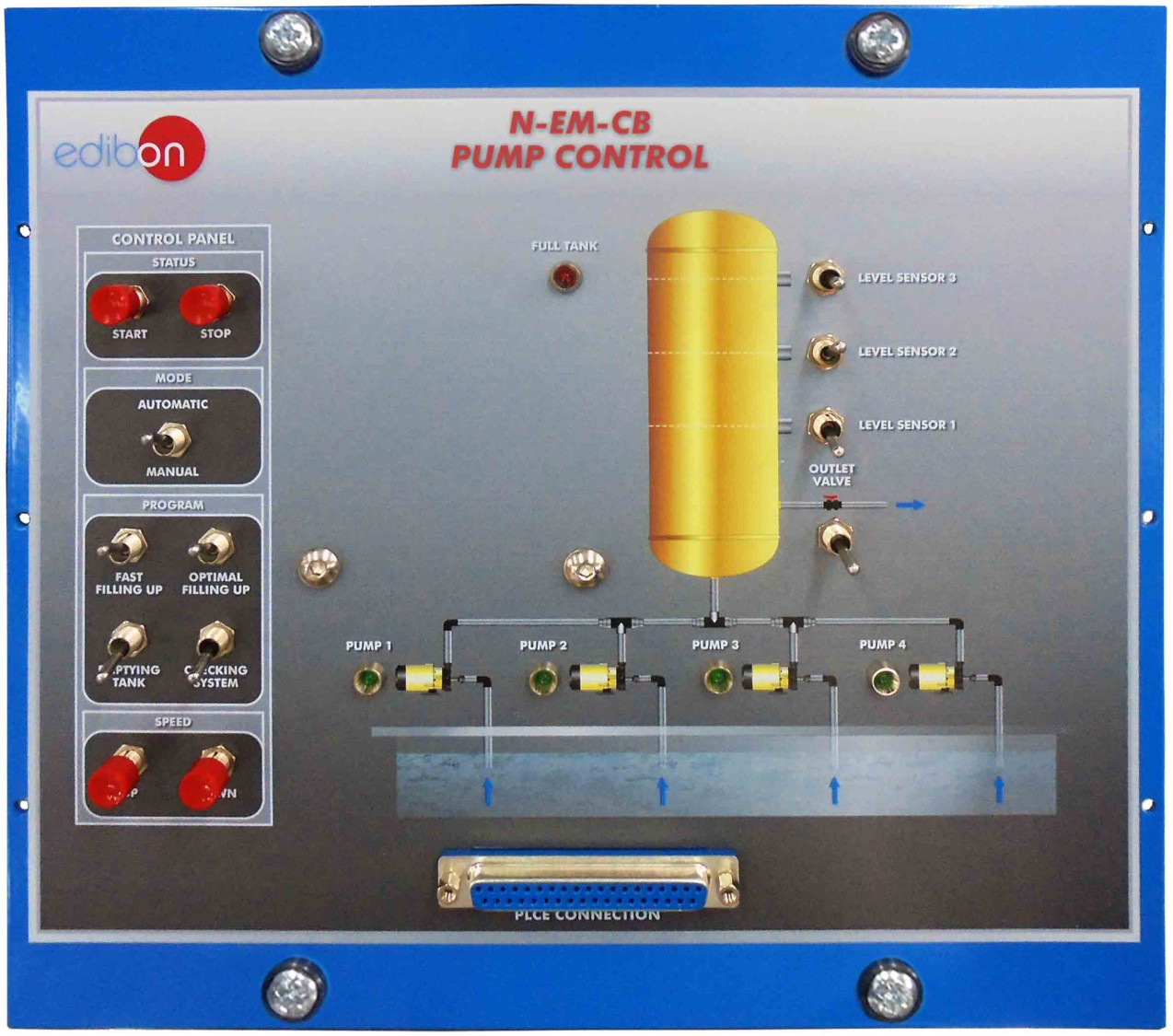

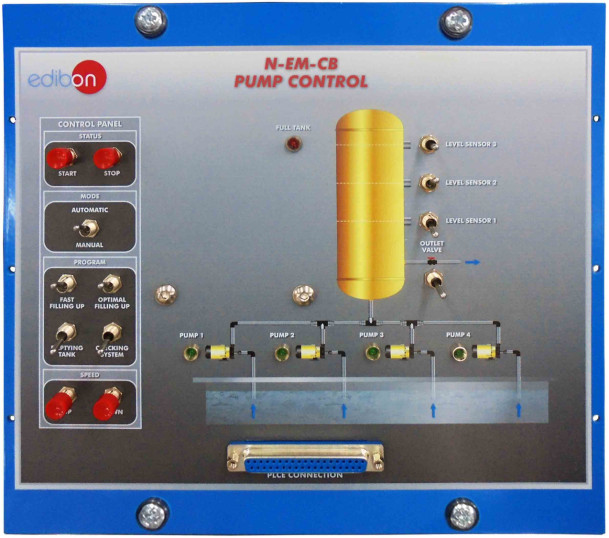

"N-EM-CB" represets the automatic control of four pumps that fills a tank.

The different switches and pushbuttons emulate the level of the tank, the filling speed of the tank selected, etc. It is possible to regulate the discharge rate with the output valve of the tank.

Exercises and guided practices

GUIDED PRACTICAL EXERCISES INCLUDED IN THE MANUAL

All "N-EM" modules allow to perform the following practical exercises:

  1. Temporization.
  2. Counting.
  3. Sequential counting.
  4. All the practical exercises include the diagrams and the flow charts of the example programs used.
