General Description

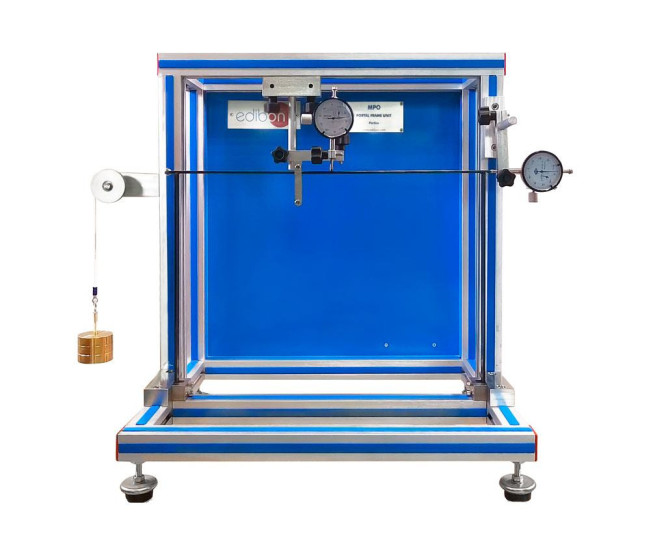

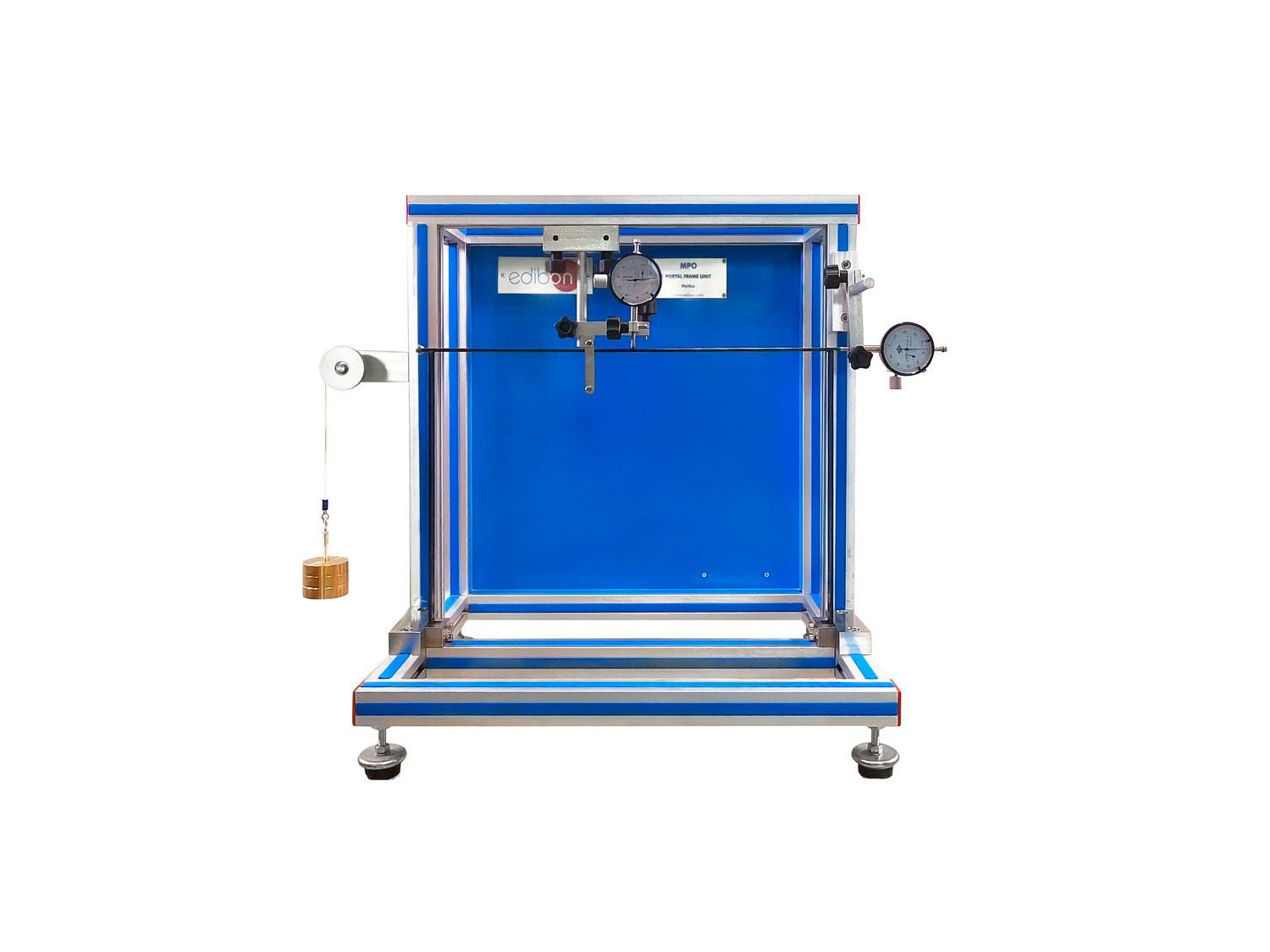

The Portal Frame Unit, "MPO", allows to perform vertical deflection and horizontal deflection measurements in a fixed rectangular portal frames.

To carry out the deflection tests, a series of loads with different weight must be applied to the rectangular portal frame. If the loads are applied on the central hook a vertical deflection will be generated, whereas if they are applied on the pulley included in the unit a horizontal deflection will be generated.

There are two dial gauges to measure the deflections generated.

Exercises and guided practices

GUIDED PRACTICAL EXERCISES INCLUDED IN THE MANUAL

To determine the experimental value of the vertical deflection in a point subjected to a vertical load in a rectangular portal frame.
To determine the experimental value of the horizontal deflection in a point subjected to a horizontal load in a rectangular portal frame.
To determine the experimental value of the vertical and horizontal deflection in two points subjected to two loads, a horizontal load and a vertical load in a rectangular portal frame.
To compare the theoretical and experimental results.
To determine the theoretical value of the bending moments and reactions when a vertical deflection is generated.
To determine the theoretical value of the bending moments and reactions when a horizontal deflection is generated.
