EDAS / VIS is the perfect union between the electronic modules and the computer (PC).
With the EDAS / VIS system, information travels from the modules to the computer, where it can be analyzed and represented.

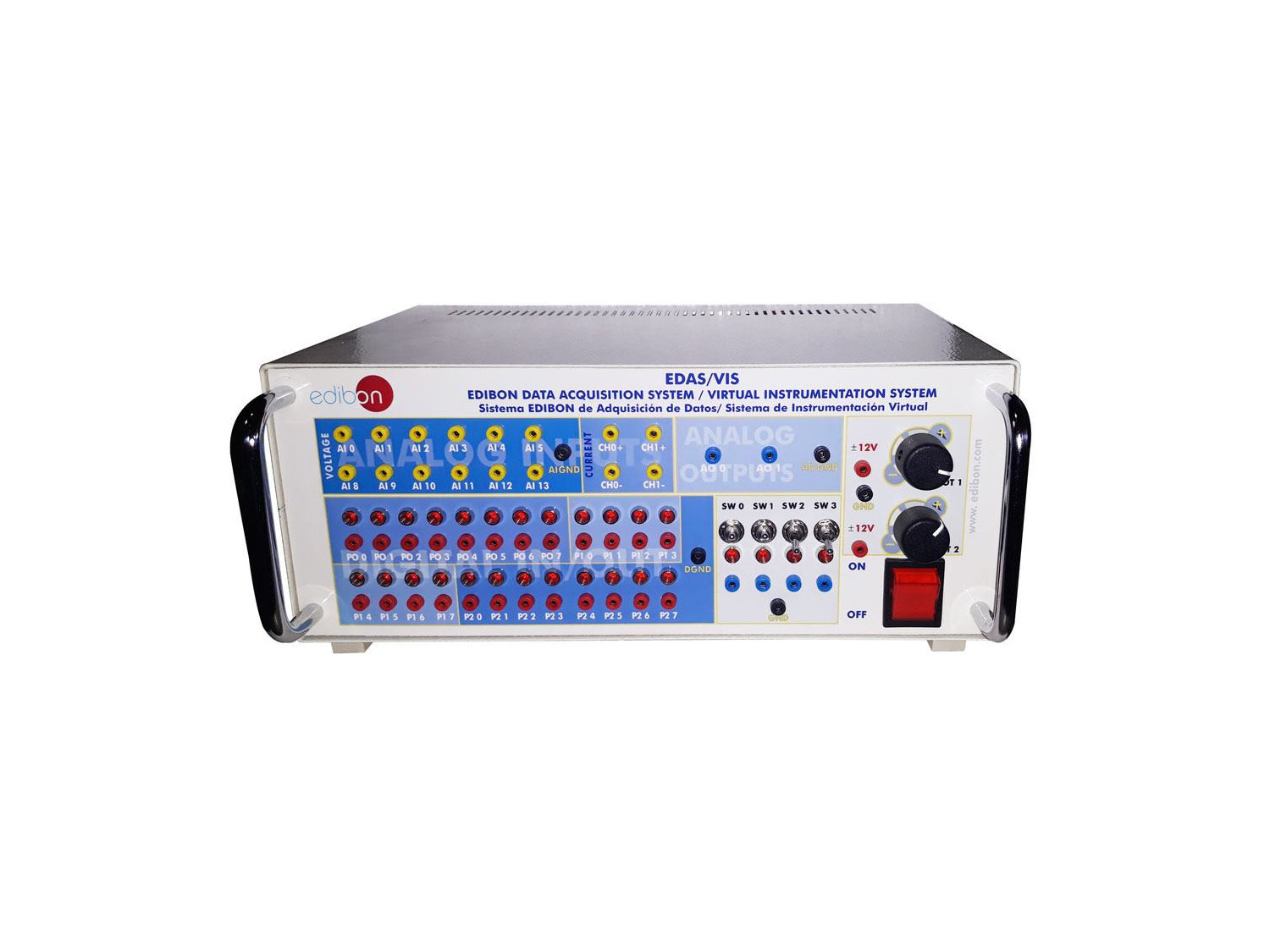

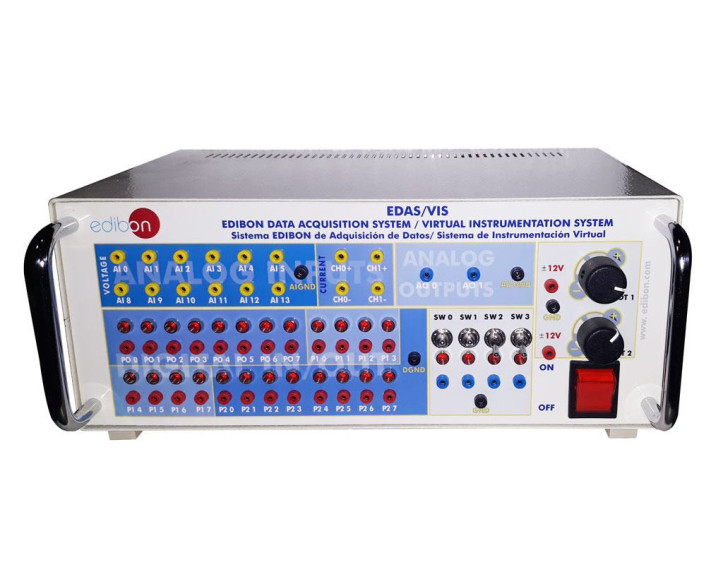

The data acquisition interface (DAIB) is easily connected to the modules with the supplied cables (the connection points are indicated on the modules). Like all hardware, the DAIB is connected to the computer (PC) with a data acquisition card (DAB), and by using the data acquisition and virtual instrumentation software the student can obtain results of the experiments / practices, see them in the screen and work with them.This EDAS / VIS System includes DAIB + DAB + EDAS / VIS-SOF:
- DAIB. Data Acquisition Interface Box
- DAB. Data Acquisition Card

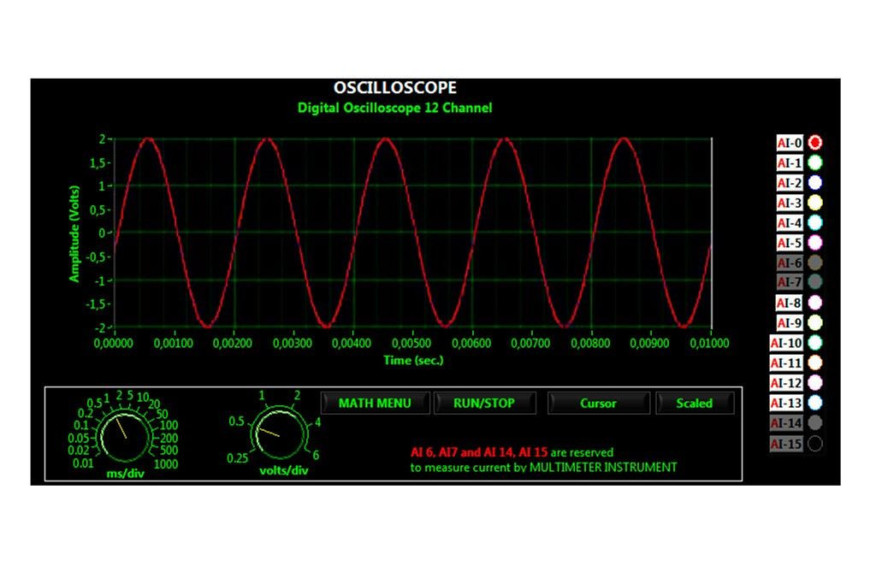

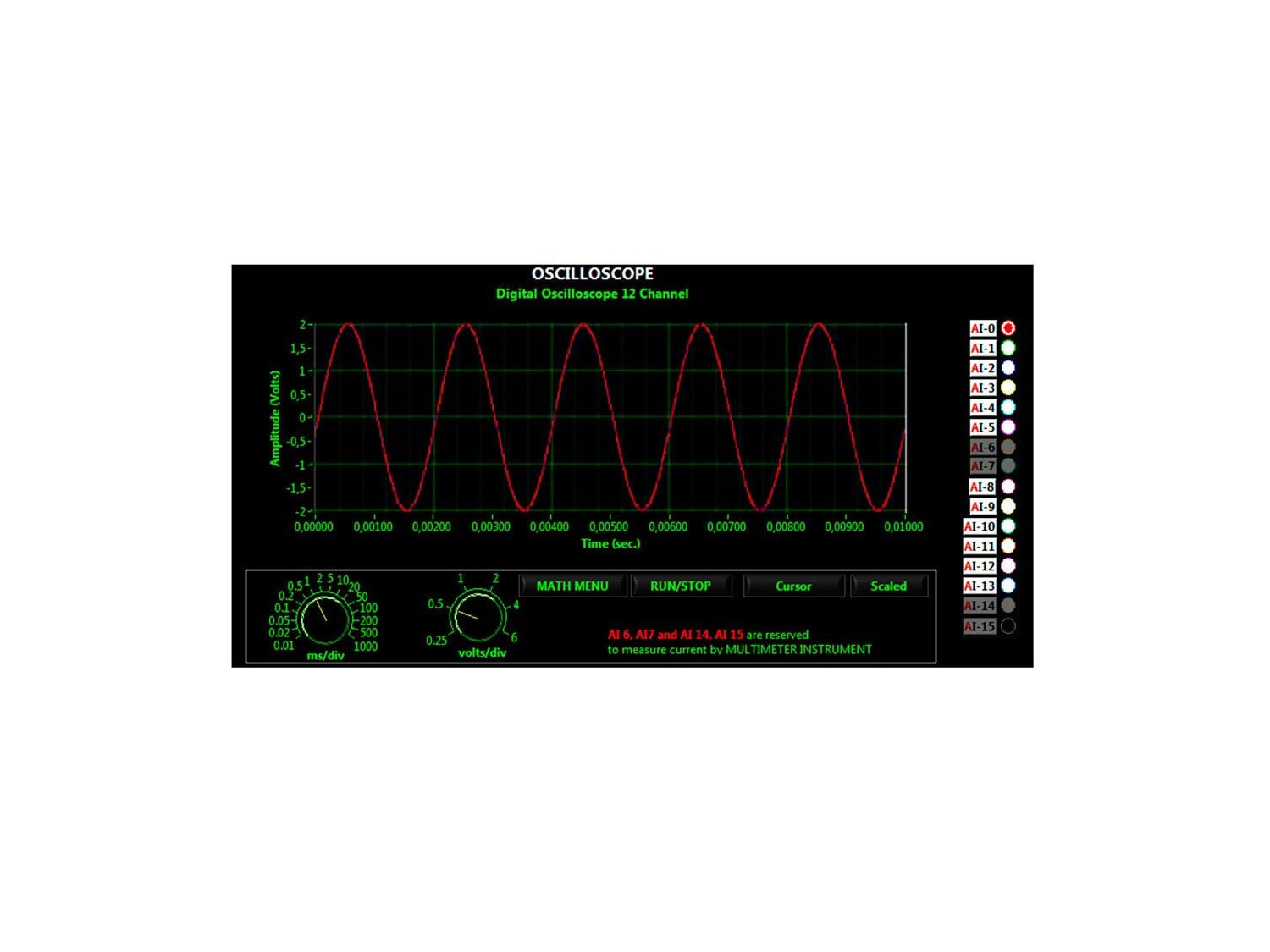

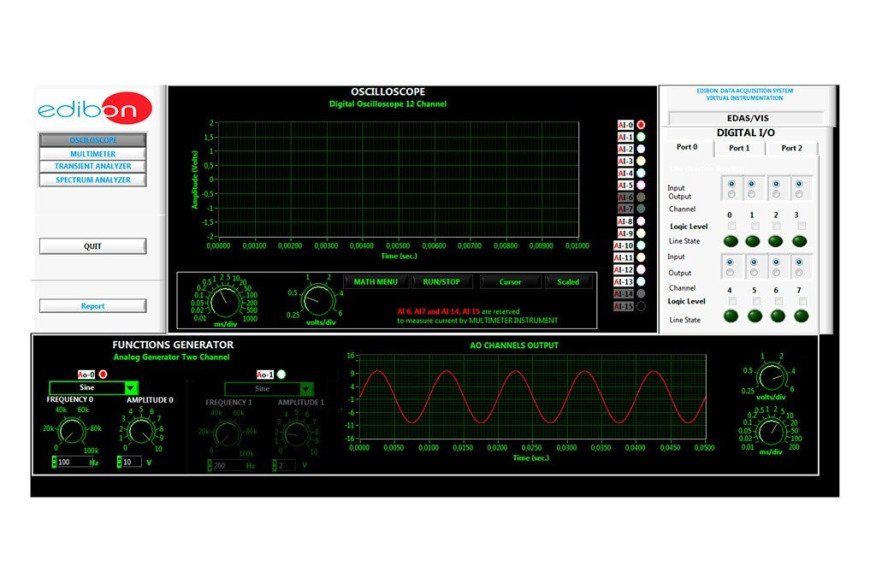

- EDAS/VIS-SOF. Data Acquisition and Virtual Instrumentation Software, Configurable software that allows the temporal / frequency representation of the different inputs / outputs. Visualization of a circuit voltage on the computer screen. It allows the storage of data in a file, prints screens and reports of the signals at any time. Measurement, analysis, visualization, representation, and results reports. Virtual Instrument Set:

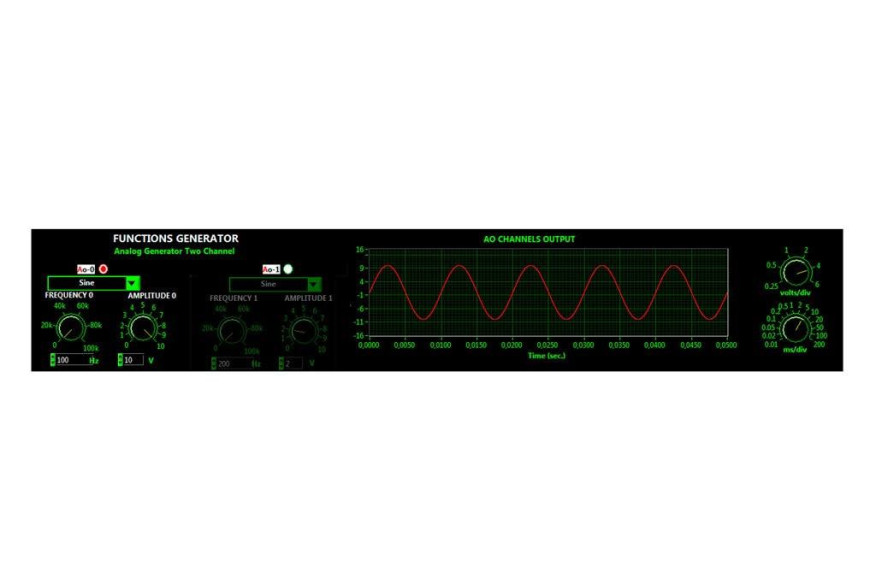

- Function Generator.

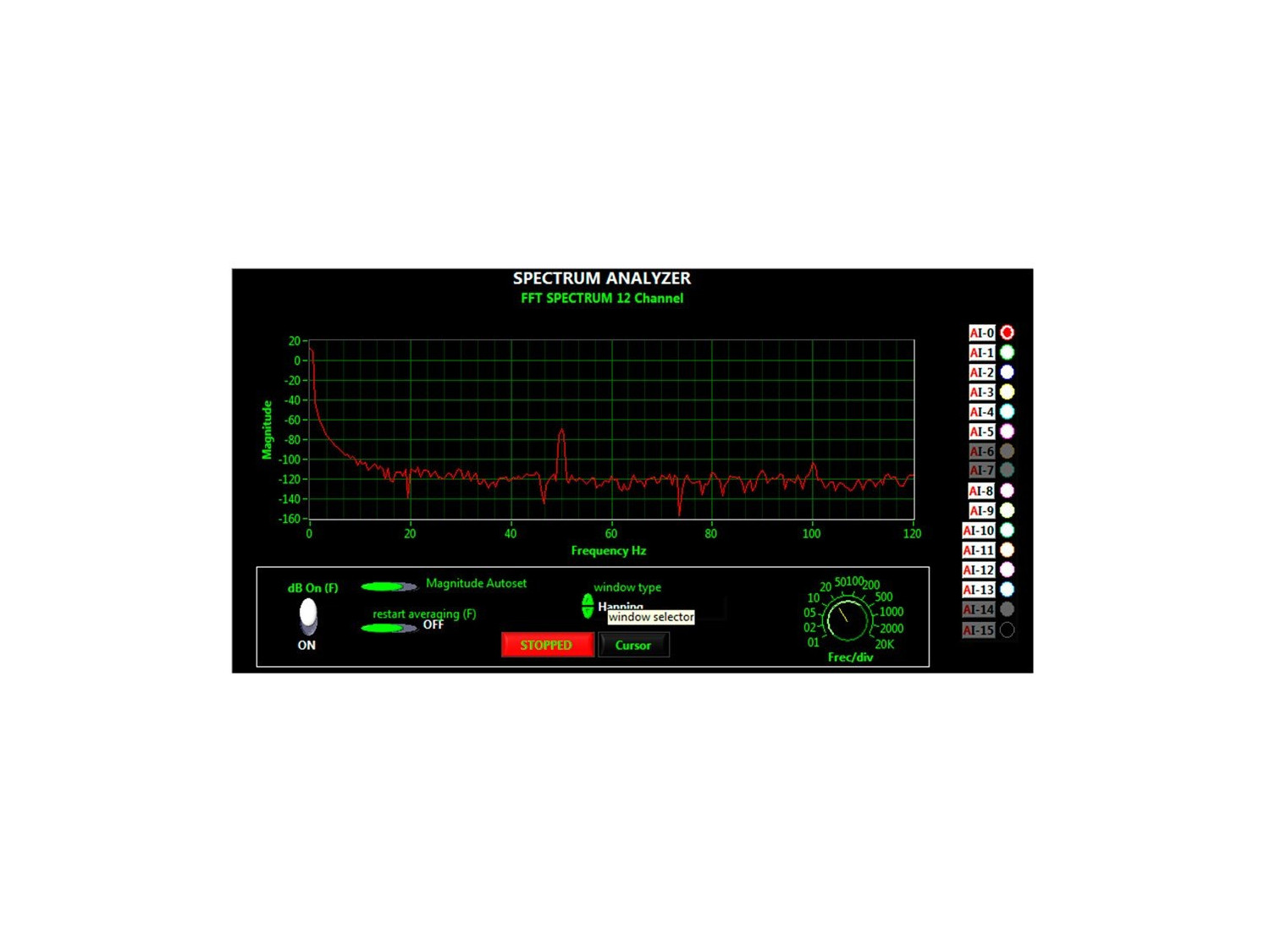

- Spectrum Analyzer.

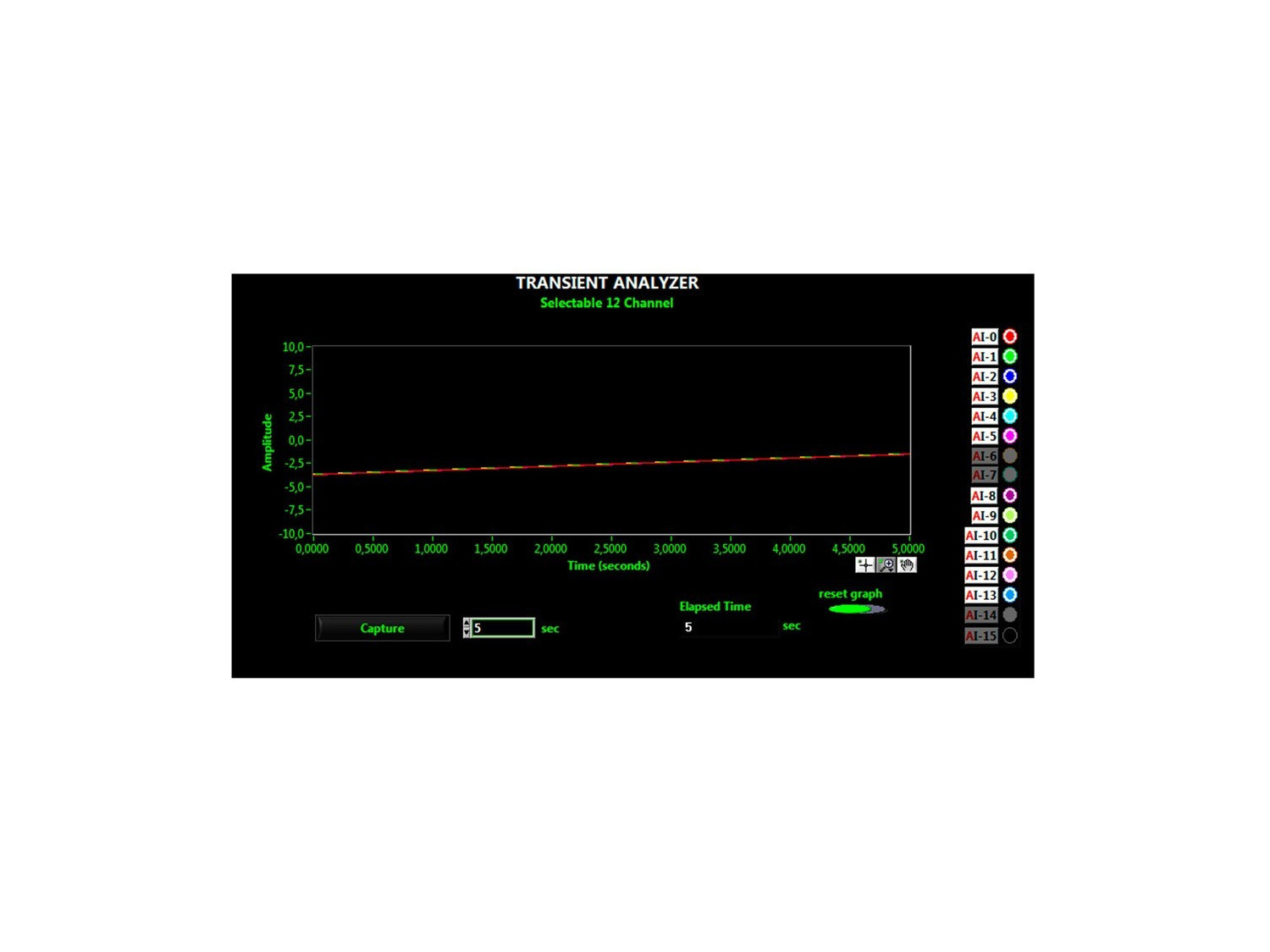

- Transient Analyzer.

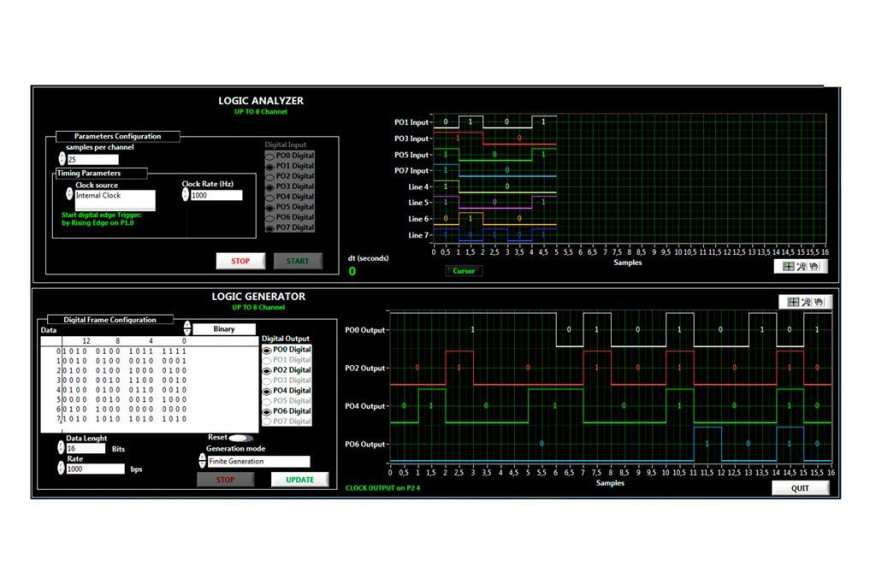

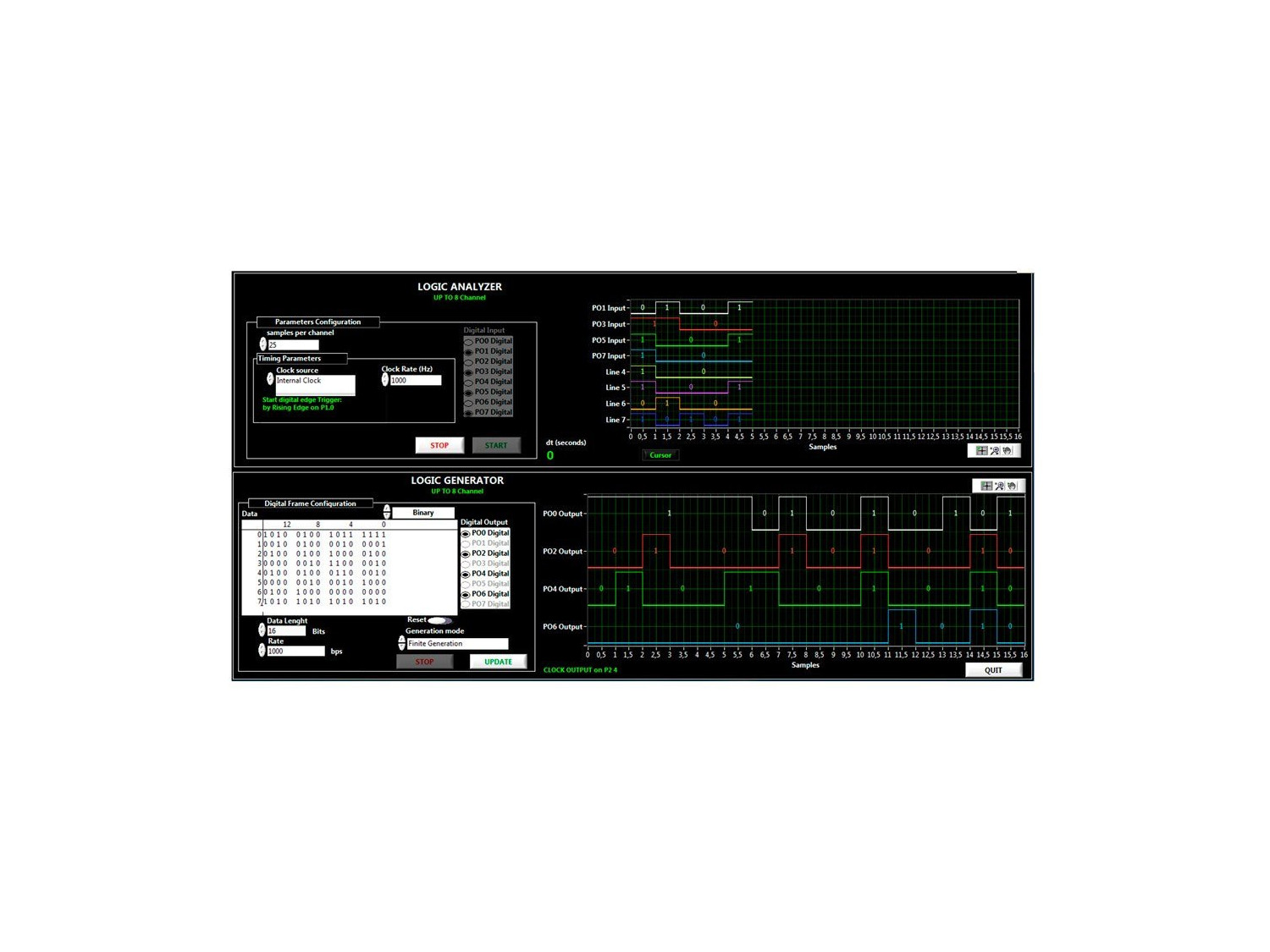

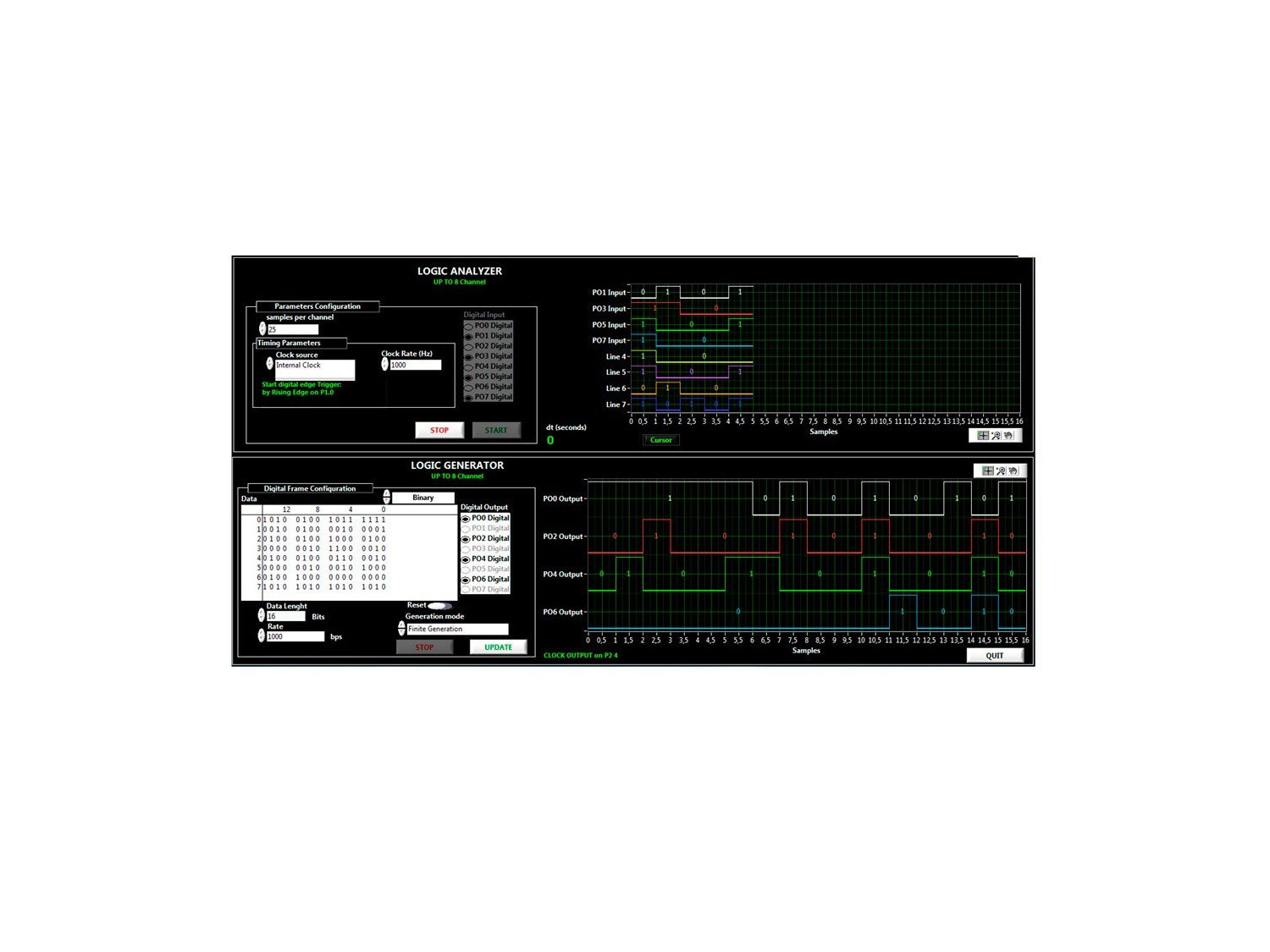

- Logic Analyzer.
- Logic Generator.
