N-EM-MB Drinks Machine

DRINKS MACHINE - N-EM-MB

INNOVATIVE SYSTEMS

"N-EM-MB" represents an automatic drinks machine, which emulates the sequence of actions carried out to provide beverage cans automatically.

See general description

General Description

The "N-EM" are a series of emulators that provide the students the required hardware to emulate the most common automatic systems.

The "N-EM" modules are designed to work with the "AE-PLC" units to obtain the fundamental knowledge of PLC programing, PLC management, etc.

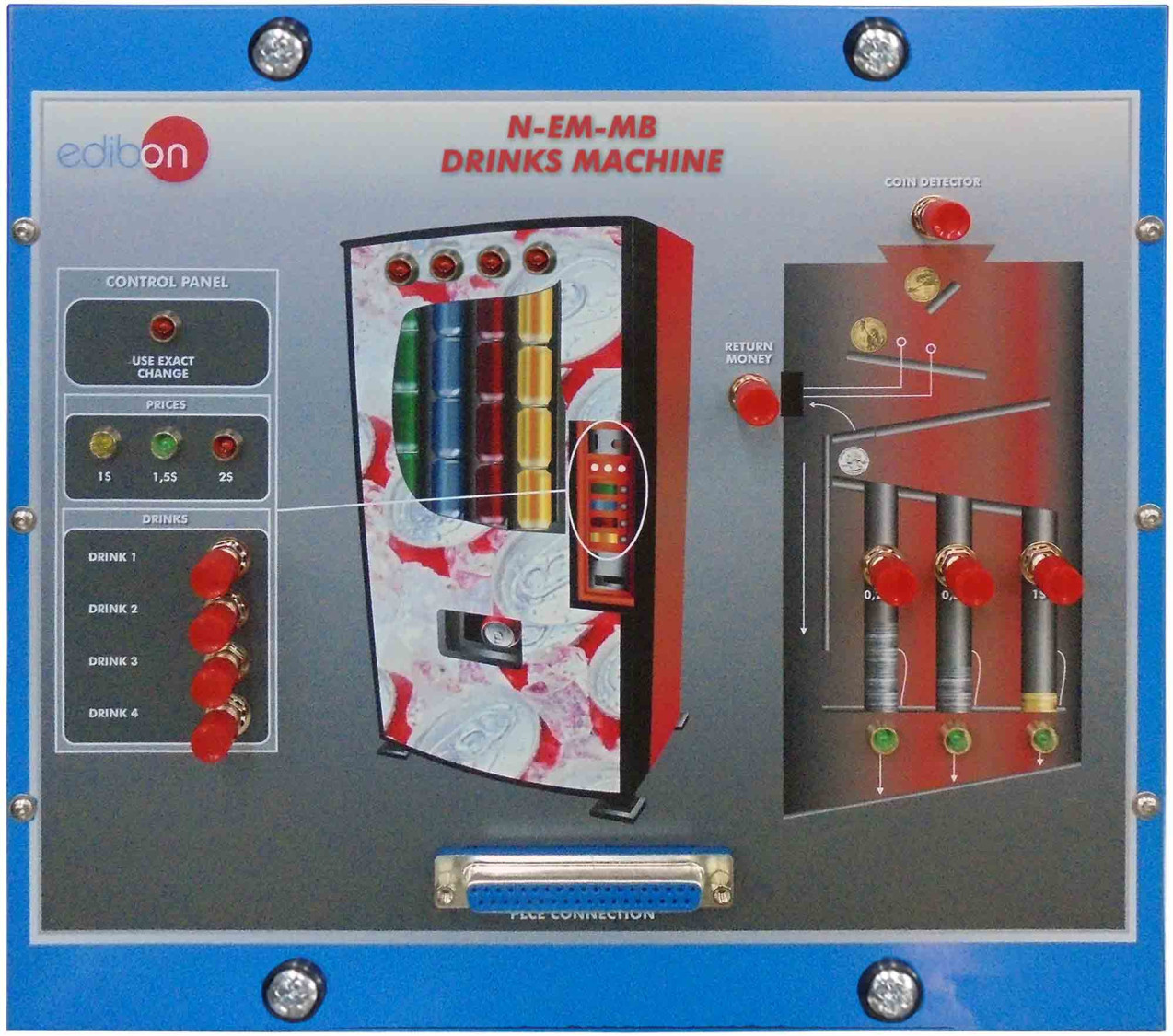

"N-EM-MB" represents an automatic drinks machine, which emulates the sequence of actions carried out to provide beverage cans automatically. The "N-EM-MB" also emulates the automatic coin machine to pay the beverage cans. The different pushbuttons emulates the coins introduced, the selection of the beverage type, if there is some beverage sold out, etc.

Exercises and guided practices

GUIDED PRACTICAL EXERCISES INCLUDED IN THE MANUAL

All "N-EM" modules allow to perform the following practical exercises:

  1. Temporization.
  2. Counting.
  3. Sequential counting.
  4. All the practical exercises include the diagrams and the flow charts of the example programs used.
