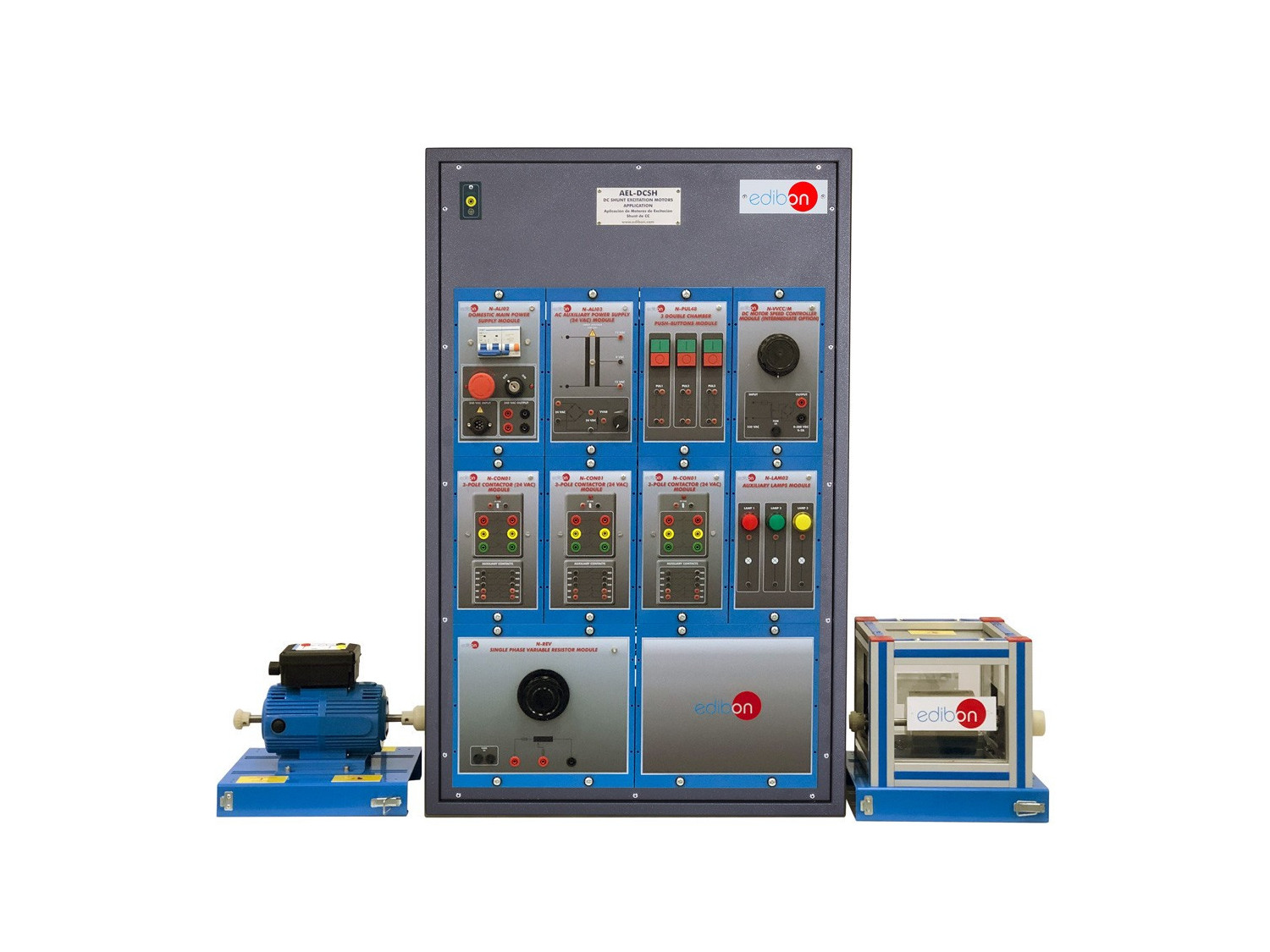

The DC Shunt Excitation Motors Application, "AEL-DCSH", has been designed by EDIBON to demonstrate the most important operations and manoeuvres carried out with DC Shunt Electrical Motors.
RELATED NEWS
General Description

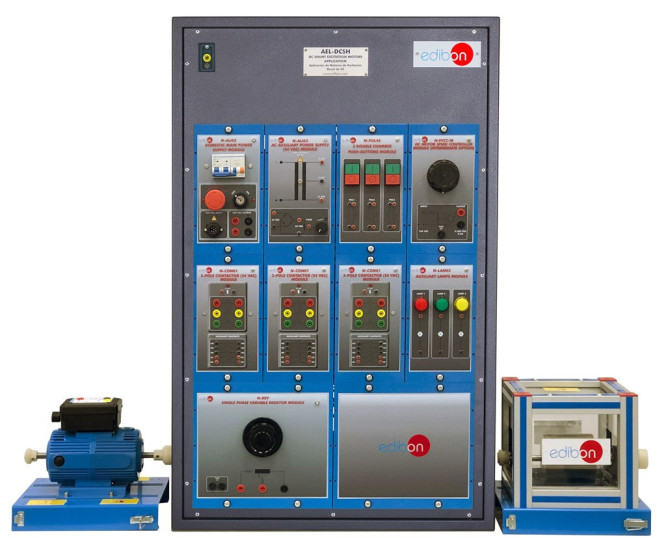

The DC Shunt Excitation Motors Application, "AEL-DCSH", has been designed by EDIBON to demonstrate the most important operations and manoeuvres carried out with DC Shunt Electrical Motors.
These operations are mainly the following: Start / Stop the DC Shunt Electrical Motor, speed control of the DC Shunt motor using a variable resistor and a DC variable source, and simulate an emergency stop system for DC shunt motor. The student will learn the most important operations of these electrical machines faithfully by using commutators and contactors.
Exercises and guided practices
GUIDED PRACTICAL EXERCISES INCLUDED IN THE MANUAL
- DC motor speed control.
- DC machine turning direction control.
- DC machine speed reading.
- Excitation current control.
- DC machine speed reading.
MORE PRACTICAL EXERCISES TO BE DONE WITH THE UNIT
Some possible practices with the recommended additional elements:
- Rotor current measurement and torque estimation.
- Measurement of armature voltage.
Several other exercises can be done and designed by the user.
SIMILAR UNITS AVAILABLE
4.3.2.2.- DC ELECTRICAL MOTORS AND GENERATORS
AEL-DCEMT
The DC Electrical Motors Applications, "AEL-DCEMT", has been designed by EDIBON to carry out electrical/mechanical tests for a great variety of DC motors. Such tests allow obtaining the most significant electrical and mechanical characteristics of...
4.3.2.2.- DC ELECTRICAL MOTORS AND GENERATORS
AEL-DCEMA
DC Electrical Motors Application
The DC Electrical Motors Application, "AEL-DCEMA", has been developed for theoretical and practical training on the most important operations carried out with different DC electric motors such as the DC motor with independent excitation, the DC...
SUPPLEMENTARY EQUIPMENT
4.3.2.2.- DC ELECTRICAL MOTORS AND GENERATORS
AEL-DCEMT
DC Electrical Motors Applications

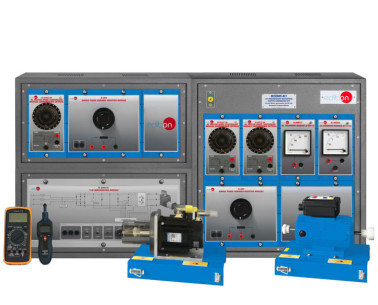

The DC Electrical Motors Applications, "AEL-DCEMT", has been designed by EDIBON to carry out electrical/mechanical tests for a great variety of DC motors. Such tests allow obtaining the most significant electrical and mechanical characteristics of...
