CONVEYOR CHARGING SYSTEM - N-EM-SCCT

INNOVATIVE SYSTEMS

"N-EM-SCCT" represents a conveyor charging system with four conveyor belts.

See general description

Expansions

ICAI

Interactive Computer Aided Instruction Software

General Description

The "N-EM" are a series of emulators that provide the students the required hardware to emulate the most common automatic systems.

The "N-EM" modules are designed to work with the "AE-PLC" units to obtain the fundamental knowledge of PLC programing, PLC management, etc.

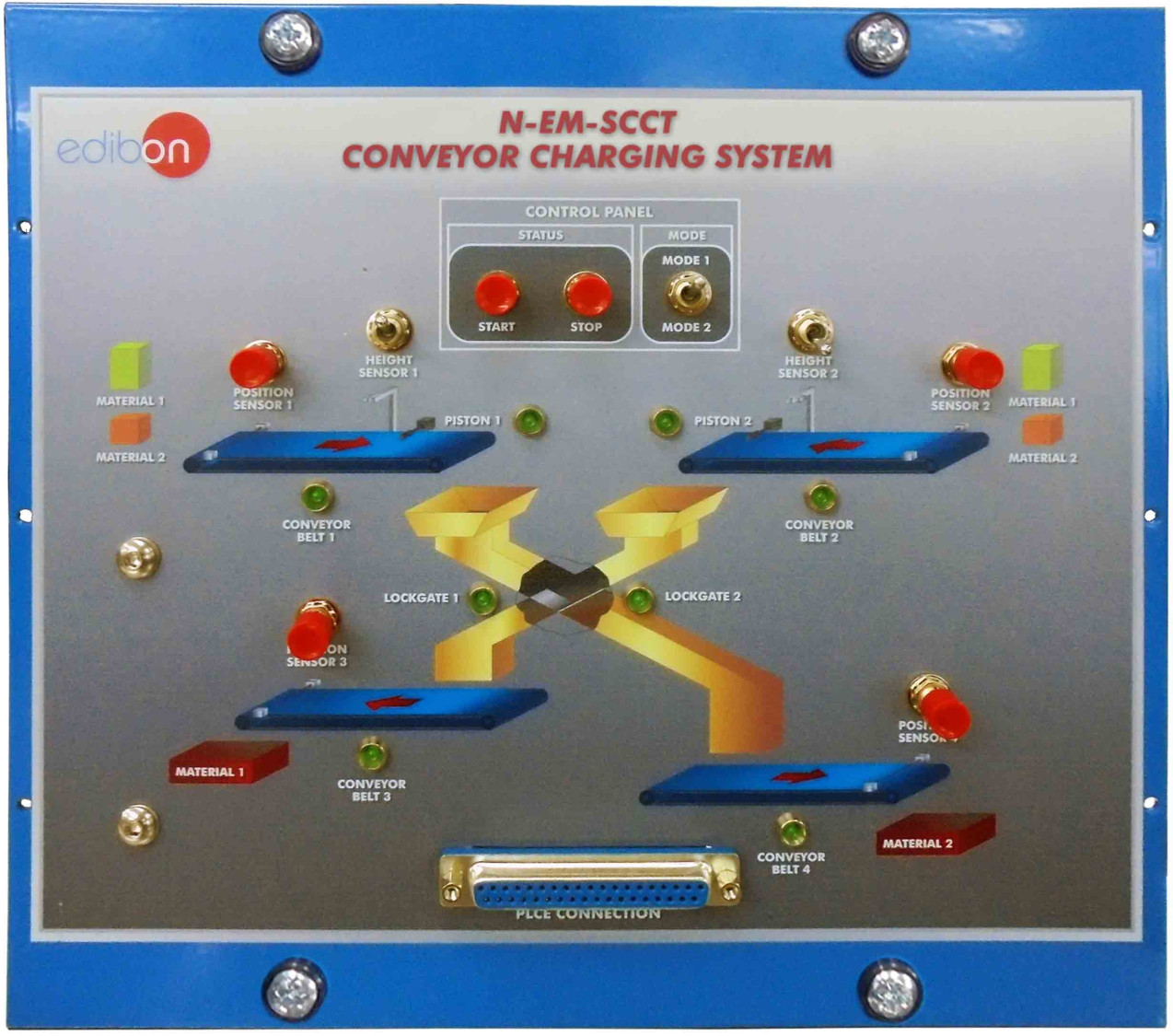

"N-EM-SCCT" represents a conveyor charging system with four conveyor belts. The conveyor system fills two different material boxes through different paths. The different switches and pushbuttons emulate the three phase motors, the position sensors, the lock gates, etc.

Exercises and guided practices

GUIDED PRACTICAL EXERCISES INCLUDED IN THE MANUAL

All "N-EM" modules allow to perform the following practical exercises:

  1. Temporization.
  2. Counting.
  3. Sequential counting.
  4. All the practical exercises include the diagrams and the flow charts of the example programs used.
