BS6 水位実験モジュール

2.4.1.- 計装と制御 6.1.2.1.- センサーと電子機器 14.2.2.- 計装と制御

革新的なシステム

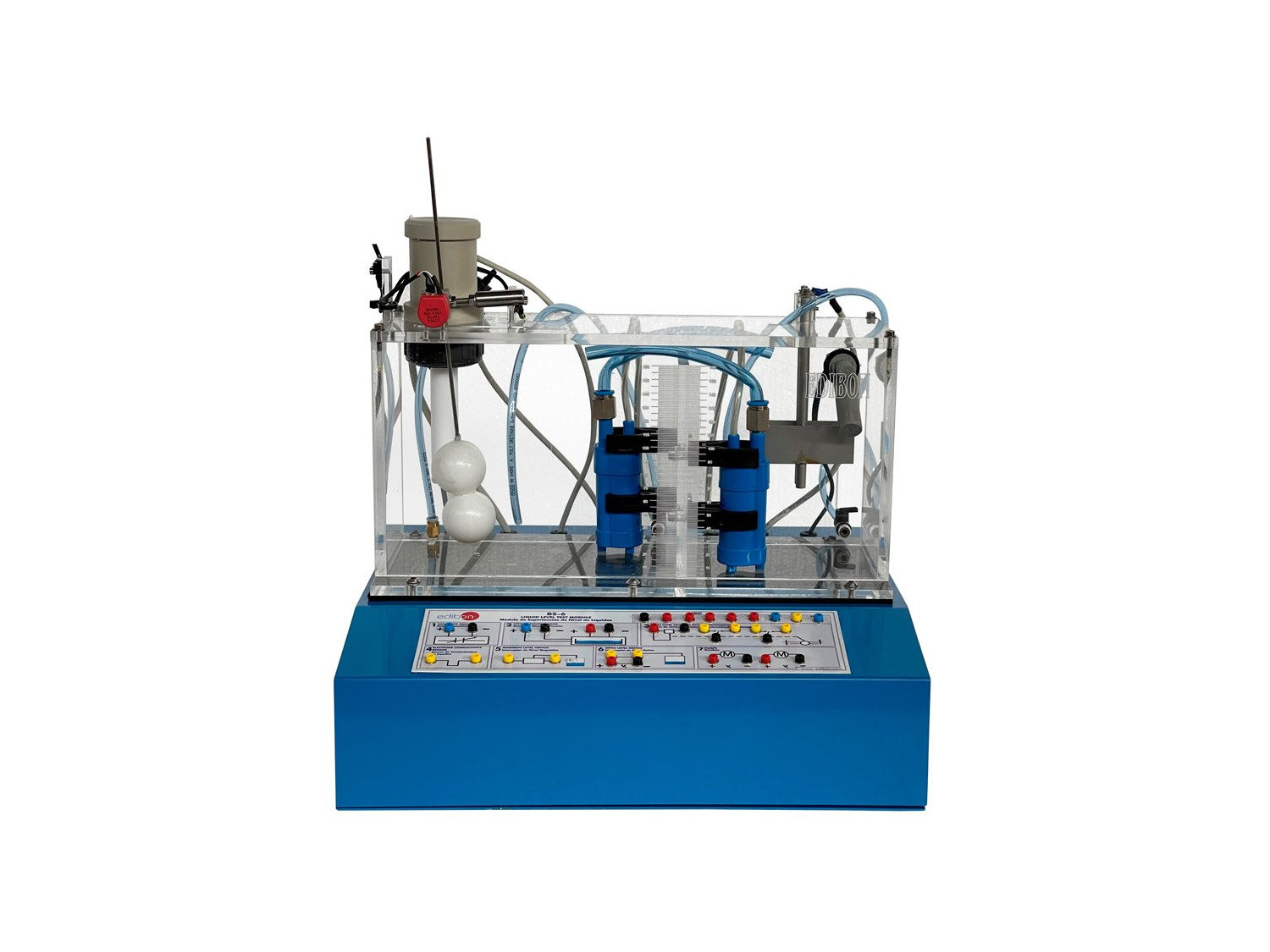

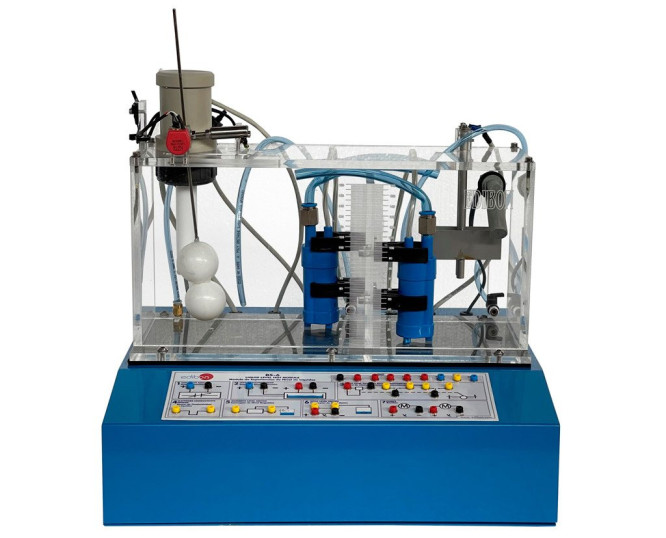

The Liquid Level Test Module "BS-6" has been designed to teach the use and applications of level sensors and their measurement systems. This module teaches techniques to measure and control the liquid level in a tank.

一般的な説明を表示

カタログ

拡張

ICAI

対話型コンピューター支援命令ソフトウェア

EMSK

NI LabVIEW™を搭載した回路シミュレーション用EDIBON開発キット

研究室

2TV

技術教育・職業教育のための電子実験室

2HE

高等教育電子工学研究室

11PTC

石油研修センター研究室

概要

On this there is a two tanks system whose aim is to pump the liquid (usually water) between both tanks. Both tanks have sensors of different technology so they can be used as liquid storage tanks or to study the level measurement sensors. Each tank has an individual pump.

Sensors:

Capacitive level sensor.
Level sensor by pressure.
Float level switches with potentiometer.
Conductivity level sensor (Electrodes).
Magnetic float level sensor.
Optical level sensor.

Two pumps fed through direct current that can be used to pump the liquid from one tank to the other.

All the connections of the different sensors and pump systems are done using the 2 mm. terminals available on the test module front panel, with diagrams describing their functions.

演習と指導の慣行

マニュアルに含まれるガイド付き実習

To use a capacitive sensor to measure the liquid level in the tank.
To use the differential pressure sensor as an element to determine the water level in a tank.
To use a changeable resistance fixed to a float system as a liquid level measurement element.
Conduction Sensor. Use of a sensor made up of to steel electrodes to measure the water level of a tank.
Magnetic float level sensor. It detects a precise liquid level in the tank with a magnetic contact.
Control of the module left tank liquid level using an optical level sensor.
