14.1.6.- 構造メカニズム

構造メカニズム UNITS
1-19 を表示中 合計 19 商品
SUSPENSION BRIDGE UNIT - MVS
  • MVS
Available
14.1.6.- 構造メカニズム
MVS

サスペンションブリッジ実験装置

The Suspension Bridge Unit, "MVS", consists of a deck and two parallel main cables that simulate a suspension bridge and allow the study of stress in the main cables. The deck of the bridge is simulated by a light alloy beam that is held by both...
PARABOLIC ARCH UNIT - MARP
  • MARP
Available
14.1.6.- 構造メカニズム
MARP

パラボラアーチ実験装置

The Parabolic Arch Unit "MARP" contains a pre-shaped articulated arch, which can be subjected to point or evenly distributed loads by means of seven uniformly distributed cables (cords) with hangers.One support of the arch is fixed whereas the...
THREE-HINGED ARCH UNIT - MART
  • MART
Available
14.1.6.- 構造メカニズム
MART

3ヒンジアーチ実験装置

The Three-Hinged Arch Unit "MART" allows the student to become familiar with three-hinged arches, to calculate the bearing forces (for point load, for uniformly distributed load and for moving load), to investigate the influence of the load on the...
UNIT FOR STUDYING DEFORMATION OF TRUSSES - MFCS3
  • MFCS3
Available
14.1.6.- 構造メカニズム
MFCS3

トラスひずみ測定実験装置

The Unit for studying Deformation of Trusses, "MFCS3", allows the measurement of the stresses in the bars in different types of trusses, and the study of the dependence of the external force and the comparison of the experimental forces in the...
TWO HINGED ARCH UNIT - MFL
  • MFL
Available
14.1.6.- 構造メカニズム
MFL

2ピンアーチ実験装置

The Two Hinged Arch Unit, "MFL", designed by EDIBON allows to study the response of an arched beam when an external load is applied on it.The arch is supported on two supports, a fixed one and a movable one. The displacement and horizontal...
PORTAL FRAME UNIT - MPO
  • MPO
Available
14.1.6.- 構造メカニズム
MPO

ポータルフレーム実験装置

The Portal Frame Unit "MPO" allows to perform vertical deflection and horizontal deflection measurements in a fixed rectangular portal frames. To carry out the deflection tests, a series of loads with different weight must be applied to the...
SIMPLE STABILITY PROBLEMS STUDY UNIT - MEPE
  • MEPE
Available
14.1.6.- 構造メカニズム
MEPE

単純安定性課題分析実験装置

The Simple Stability Problems Study Unit, "MEPE", has been designed to study the stability of a bar subjected to buckling by obtaining the critical load in different configurations.The unit consists of two bars of same length connected by a...

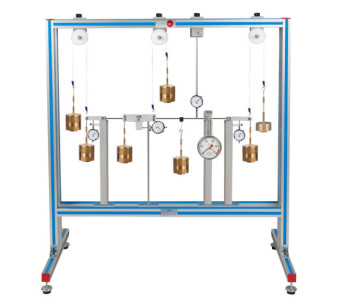

UNIT FOR STUDYING METHODS TO DETERMINE THE ELASTIC LINE - MDLE
  • MDLE
Available
14.1.6.- 構造メカニズム
MDLE

弾性ライン測定分析実験装置

The Unit for studying Methods to Determine the Elastic Line, "MDLE", consists of set of beams, several supports (with clamp fixing and dial gauges, and with force gauge), a device to generate a bending moment, fixed pulleys, dial gauges and a set...
THIN CYLINDER UNIT - MCD
  • MCD
Available
14.1.5.- 摩擦 (摩擦、 摩耗、 潤滑)
MCD

肉薄シリンダー実験装置

The Thin Cylinder Unit, "MCD", has been developed to enable the student to verify various analytical formulae with actual measured results. Strain gauges mounted in various positions and orientations on the cylinder provide an opportunity for...
UNSYMMETRICAL CANTILEVER UNIT - MVV
  • MVV
Available
14.1.6.- 構造メカニズム
MVV

非対称カンチレバー実験装置

The system consists of a vertical cantilever rigidly clamped at its lower end to the main column which is attached to a rigid structure. Beams of different sections may be used.A loading head, located at the upper end of the column, can rotate...
DEFLECTION OF CURVED BARS UNIT - MDB
  • MDB
Available
7.3.2.1.- 機械的試験
MDB

湾曲棒たわみ実験装置

The Deflection of Curved Bars Unit "MDB" consists of a structure of aluminum and steel that allows the incorporation of different curved bars to be studied. It allows tests with curved bars of different shape.The use of two dial gauges placed...
BEAM DEFLECTION UNIT - MFV
  • MFV
Available
7.3.2.1.- 機械的試験
MFV

梁たわみ実験装置

The Beam Deflection Unit, "MFV" has been designed to enable the students to observe and study the following phenomena in simply supported beams and cantilever beams:Relation between the deflections and the applied loads.Effect of the length and...
STRUT BUCKLING UNIT - MFLT
  • MFLT
Available
7.3.2.1.- 機械的試験
MFLT

支柱バックリング(座屈)実験装置

The Strut Buckling Unit "MFLT" allows the student to obtain experimentally the buckling critical load of slender struts subjected to compression.The unit allows to study the buckling of pieces of different lengths, ranging from 300 mm. to 625 mm.,...
