11.2.- 化学反応器

化学反応器とは、化学反応を起こすことができる装置のことです。これは、その中で導入された物質の化学組成の変化が生じることを意味します。

もっと見る

彼らは、可能な限り最高の変換と選択性、可能な限り最高の結果を得るような方法で設計されています。それらは、実施される反応に応じて、反応速度を向上させる化合物である触媒を含んでいてもよい。この触媒が精製された酵素または酵素を含む生物であれば、バイオリアクターといえます。

反応器にはいくつかの分類があります:相の数(均質相と不均質相)、熱領域(等温または断熱)、運転の種類(バッチ、連続またはフローと半連続)によって異なります。操作の種類にもよりますが

  • 連続的に。攪拌タンク/完全混合(CSTR)、管状反応器/ピストンフロー。
  • 不連続です。攪拌槽(バッチ)。

フェーズの数に応じて

  • ホモジニアス。単相。固定ベッド、移動ベッド、流動床など
  • 異質なもの。いくつかのフェーズ。それらは、触媒的または非触媒的であることができる。触媒式不均一系反応器の最も一般的な例としては、固定床と流動床があります。

これらが最も一般的な反応器であるが、直列の複合反応器、酵素触媒反応器、再循環反応器など他にも多くの反応器がある。

技術の進歩により、プロセスシミュレーションシステムを用いて化学反応の速度論や原子炉の設計を研究することが可能になりました。また、化学業界のある種の問題を解決するためのプロセス制御や、環境規制への対応も進んでいます。

化学業界では、環境への配慮と連動して、環境制約に適合した、より最適な新材料、新触媒などの適応・研究を進めています。

製品を見る
化学反応器 UNITS
1-30 を表示中 合計 30 商品

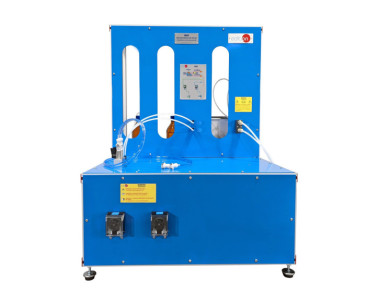

BASE-SERVICE UNIT - QRUBI
Available
11.2.- 化学反応器
QRUBI
基本サービスユニット
の付属品 QRQC
This unit is common for the Chemical Reactors and can work with one or several reactors. Installation and exchange system of the reactors quick and easy to handle. It supplies all the services for the operation of each reactor. Anodized aluminum...
CHEMICAL REACTORS - QR
  • QR
Available
11.2.- 化学反応器
QR
化学反応器演習装置:
The Chemical Reactors, "QR", has been designed by EDIBON for the study and comparison of different types of chemical reactors.The minimum supply consists of two main elements: the Service Unit for QR, "QUS", and at least one of the required...
COMPUTER CONTROLLED CATALYTIC REACTORS - QRCC
  • QRCC
Available
11.2.- 化学反応器
QRCC
コンピューター制御触媒反応器
The Computer Controlled Catalytic Reactors, "QRCC", is an unit designed to perform the saccharose hydrolysis reaction in a continuous way by using catalytic fixed-bed reactors.Saccharose hydrolysis is the industrial process to obtain glucose and...
COMPUTER CONTROLLED FLOW INJECTION ANALYSIS (FIA) UNIT - QRCC-IF
Available
11.2.- 化学反応器
QRCC-IF
流体注入分析(FIA)
の付属品 QRCC
This unit is a Flow Injection Analysis system, which we will use to measure the conversion degree of the saccharose hydrolysis in a continuous way.This unit provides an easy method for measuring the saccharose concentration of the final product in...
CATALYTIC REACTORS - QRCB
  • QRCB
Available
11.2.- 化学反応器
QRCB
触媒反応器
The Catalytic Reactors, "QRCB" is an unit designed to perform the saccharose hydrolysis reaction in a continuous way by using catalytic fixed-bed reactors. Saccharose hydrolysis is the industrial process to obtain glucose and frustose from...
FLOW INJECTION ANALYSIS (FIA) UNIT - QRCB-IF
Available
11.2.- 化学反応器
QRCB-IF
流体注入分析(FIA)装置
の付属品 QRCB
This unit is a Flow Injection Analysis system, which we will use to measure the conversion degree of the reaction of the saccharose hydrolysis in a continuous way.This unit provides an easy method for measuring the saccharose concentration of the...
