PDA 好気性消化槽
革新的なシステム
The objective of the Aerobic Digester, "PDA", is to study and understand aerobic digestion processes and to analyze their main parameters.
関連ニュース
概要
The objective of the Aerobic Digester, "PDA", is to study and understand aerobic digestion processes and to analyze their main parameters.
The unit consists of a 20 l capacity reactor vessel with a tubular membrane made of plastic inside to separate the sludge. Wastewater to be treated enters the vessels pumped by a peristaltic pump.
This unit includes a thermostatic bath to heat water up to 60ºC. That water is driven by a pump through a coil inside the reactor. A suitable temperature for the microorganisms population employed in the aerobic digestion will be obtained.
The greater amount of oxygen available in the environment in the aerobic digestion, the quicker the bacteria involved in the process will grow. Therefore, a compressor introduces a specific air flow into the reactor through a diffusion plate.
The aerobic reactor includes a portable temperature, pH and dissolved oxygen meter to monitor the digestion.
演習と指導の慣行
マニュアルに含まれるガイド付き実習
- Acclimation of biological samples.
- Study of the temperature effect on the effluent quality.
- Study of the detention time effect on the effluent quality.
- Study of the aireation effect on the effluent quality.
- Study of the pH effect on the effluent quality.
- Study of the mass load effect on the effluent quality.
- Study of the nutrients effect on the effluent quality.
- Study of the recirculation effect on the effluent quality.
- Establishing the stoichiometry of aerobic processes.
- Establishing the kinetics of aerobic processes.
- Gas/liquid mass transfer.
- Residence time distributions.
- Measurement of MLSS and COD changes as criteria of performance.
利用可能な類似の機器
13.3.- 廃水処理
PDAC
The objective of the Computer Controlled Aerobic Digester, "PDAC", unit is to study and understand aerobic digestion processes and to analyze their main parameters. The unit consists of a 20 l capacity reactor vessel with a tubular membrane made...
13.3.- 廃水処理
PDANC
コンピューター制御嫌気性消化槽
The objective of the Computer Controlled Anaerobic Digester, "PDANC", is to study and understand the stages of the anaerobic digestion, as well as the anaerobic digestion process itself. It is supplied with two packed anaerobic digesters. In this...
13.3.- 廃水処理
PDAN
嫌気性消化槽
The objective of the Anaerobic Digester, "PDAN", is to study and understand the stages of the anaerobic digestion, as well as the anaerobic digestion process itself. It is supplied with two packed anaerobic digesters. In this way, the user can...
補完的な機器
エネルギー
SCS/60/CTS
コンピューター(PC)およびタッチスクリーンで制御される60リットルの半連続遠心分離器
The Computer Controlled and Touch Screen 60 l Semicontinuous Centrifugal Separator, "SCS/60/CTS", is able to show, for further research and study, the obtaining of lignin from lignocellulosic biomass.The unit consists of a tubular centrifuge, a...
エネルギー
SCS/1000/CTS
コンピューター(PC)およびタッチスクリーンで制御される1000リットルの半連続遠心分離器
The Computer Controlled and Touch Screen 1000 l Semicontinuous Centrifugal Separator, "SCS/1000/CTS", is able to show, for further research and study, the obtaining of lignin from lignocellulosic biomass.The unit consists of a tubular centrifuge,...
13.3.- 廃水処理
PDAC
コンピューター制御好気性消化槽
The objective of the Computer Controlled Aerobic Digester, "PDAC", unit is to study and understand aerobic digestion processes and to analyze their main parameters. The unit consists of a 20 l capacity reactor vessel with a tubular membrane made...
13.3.- 廃水処理
PDANC
コンピューター制御嫌気性消化槽
The objective of the Computer Controlled Anaerobic Digester, "PDANC", is to study and understand the stages of the anaerobic digestion, as well as the anaerobic digestion process itself. It is supplied with two packed anaerobic digesters. In this...
13.3.- 廃水処理
PDAN
嫌気性消化槽
The objective of the Anaerobic Digester, "PDAN", is to study and understand the stages of the anaerobic digestion, as well as the anaerobic digestion process itself. It is supplied with two packed anaerobic digesters. In this way, the user can...

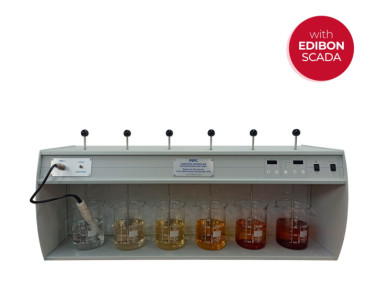

13.3.- 廃水処理
PEFC
コンピューター制御凝集試験装置
The Computer Controlled Flocculation Test Unit, "PEFC", shows the removal of dissolved substances by coagulation and flocculation.It has six beakers where water to be tested is poured. Each one has one adjustable speed paddle stirrer.The unit is...

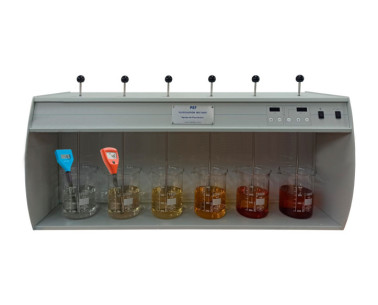

13.3.- 廃水処理
