PEAI 爆気処理装置

AERATION UNIT - PEAI

革新的なシステム

The Aeration Unit, "PEAI", designed by EDIBON, is a demonstration unit of the water aeration process to mainly eliminate odors and tastes from the water. It allows the study of the oxygen transfer characteristics by means of different air diffusion systems, as well as the study of the mixing process.

一般的な説明を表示

関連ニュース

概要

The Aeration Unit, "PEAI", allows the study of the oxygen transfer characteristics of diffused air systems and the physical and chemical parameters which influence oxygenation capacity and demonstrates the water aeration process which, mainly, eliminates smell and taste from water.

The "PEAI" unit also allows the study of the mixing and agitation processes in order to familiarize the student with the different types of agitators.

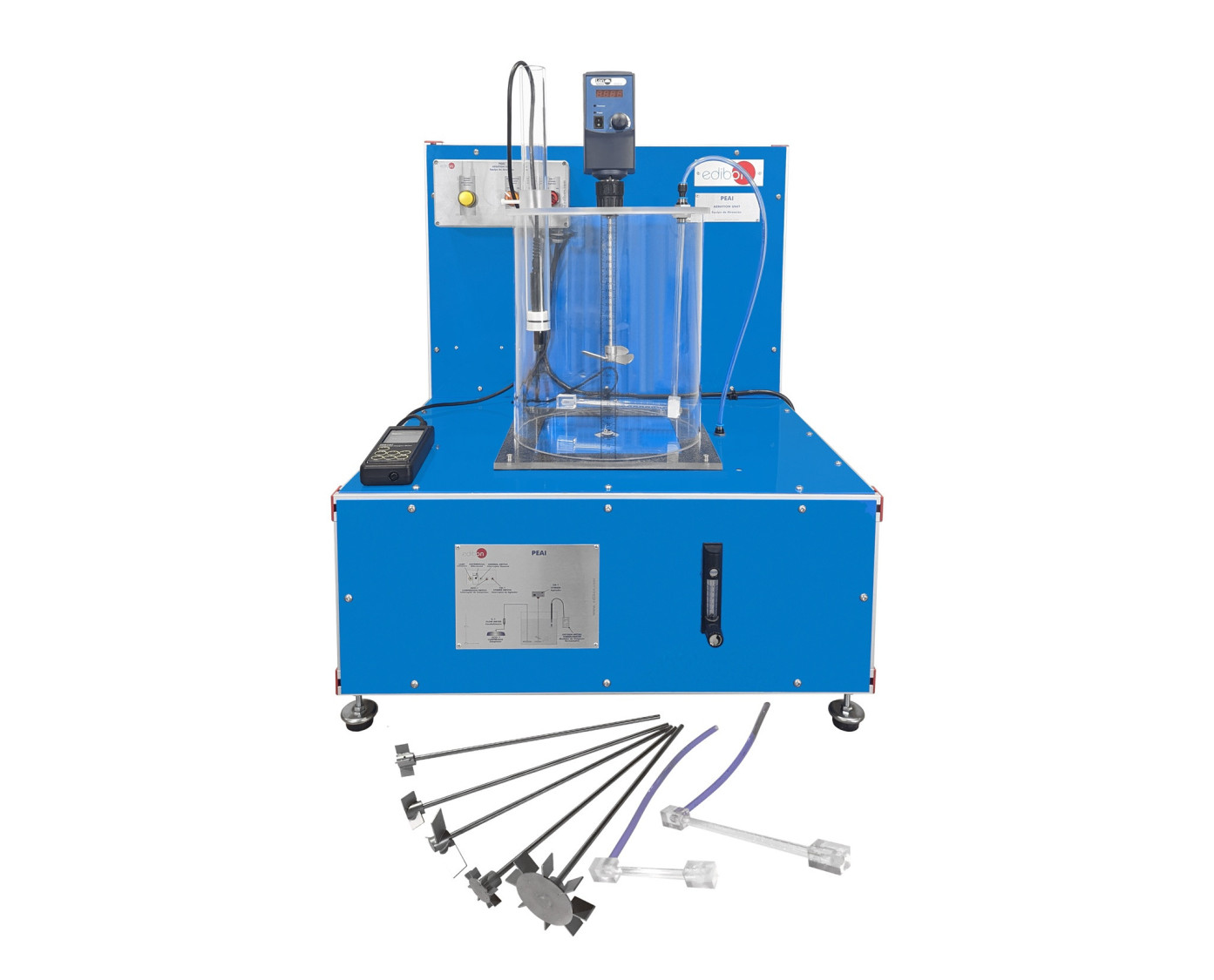

The main component of the unit is the central tank where the liquid subjected to study will be poured. An air pump, located underneath the tank, injects air in the tank. The air-injection tube passes previously traverses a device that measures and control the injected air, allowing the control of the volume of air that is allowed into the tank. After the air flow controller, the air is led through a flexible tube to the upper inlet of the tank. There, three different air outlets can be connected, in order to disperse the air in different ways (three type of diffusers are supplied).

On the other hand, there is a stirrer, with variable speed control, in the middle of the tank. The main part of the stirrer is a motor that makes it turn inside the tank. The unit includes different types of agitators of different size.

There is an oxygen meter to measure the oxygen dissolved in the water and a temperature meter.

The tank is made of a transparent material to facilitate the observation of the mixing process. There covers to avoid splashes.

演習と指導の慣行

マニュアルに含まれるガイド付き実習

  1. Determination of the aeration needs.
  2. Influence of the injected oxygen volume.
  3. Influence of the stirrer turning speed.
  4. Aeration with air injection and agitation.
  5. Influence of the temperature in the process.
  6. Influence of liquid level in the tank.
  7. Influence of the water composition.

より実用的な練習をして、ユニットを完成させる

  1. Measurement of the absorption coefficient K and the S oxygenation capacity R.
  2. Effects of oxygen transfer under non-steady state conditions.
