SCS/60/CTS Computer Controlled and Touch Screen 60 l Semicontinuous Centrifugal Separator
革新的なシステム
The Computer Controlled and Touch Screen 60 l Semicontinuous Centrifugal Separator, "SCS/60/CTS", is able to show, for further research and study, the obtaining of lignin from lignocellulosic biomass.
関連ニュース
概要
The Computer Controlled and Touch Screen 60 l Semicontinuous Centrifugal Separator, "SCS/60/CTS", is able to show, for further research and study, the obtaining of lignin from lignocellulosic biomass.

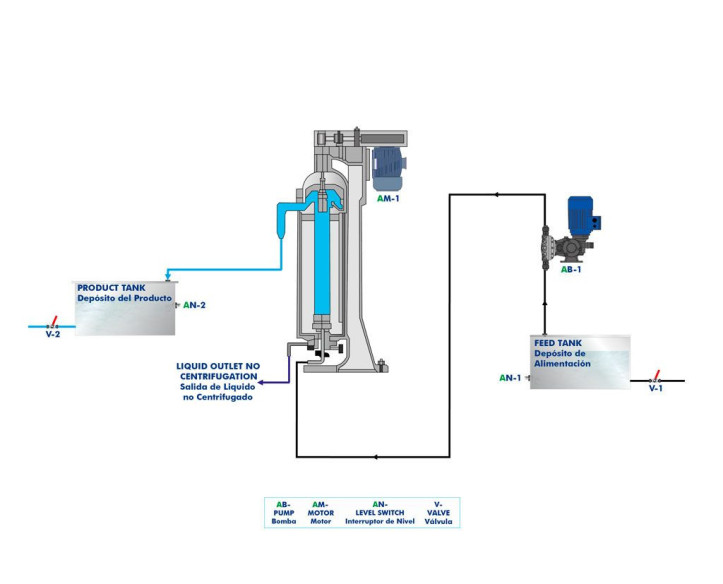

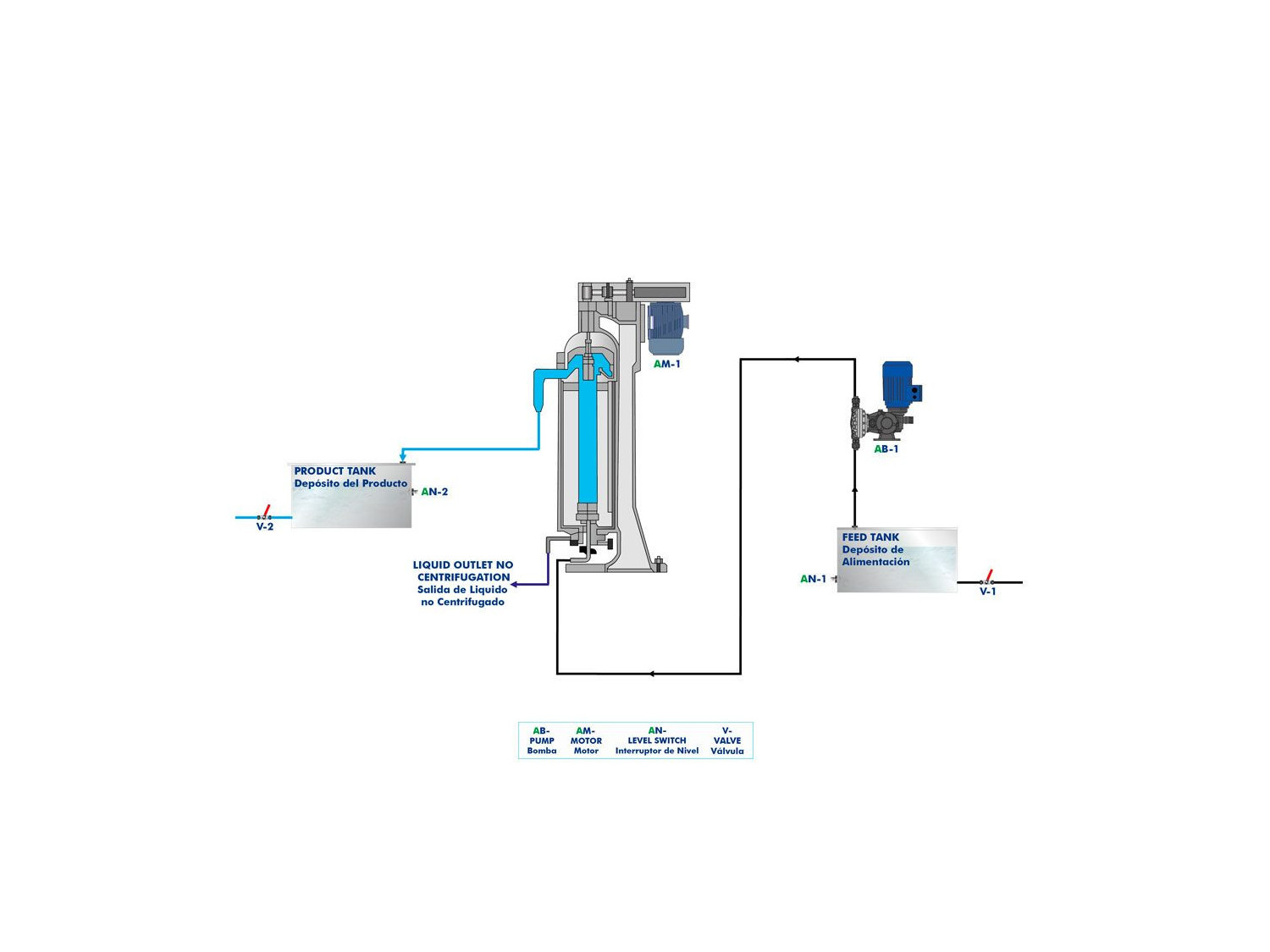

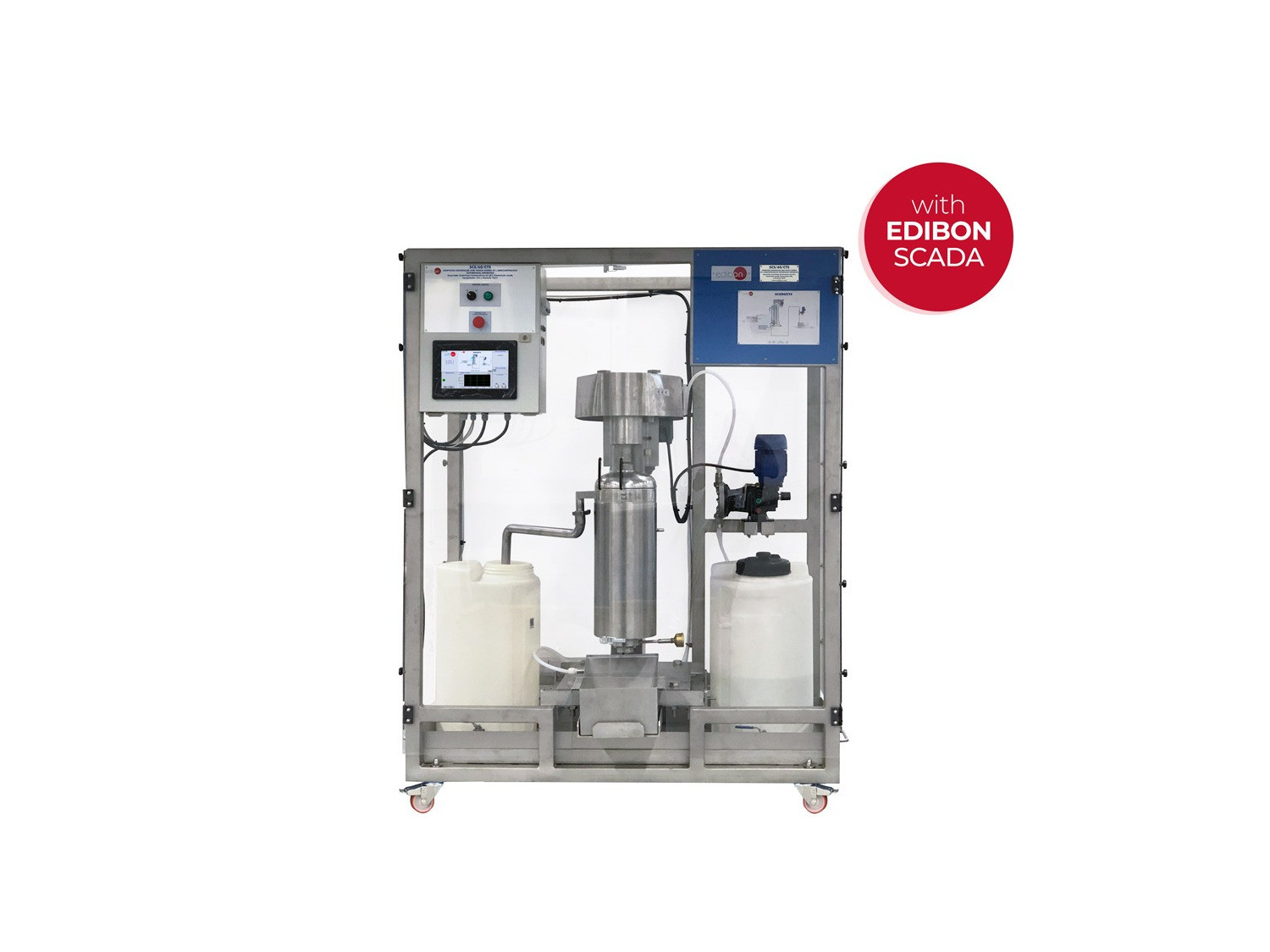

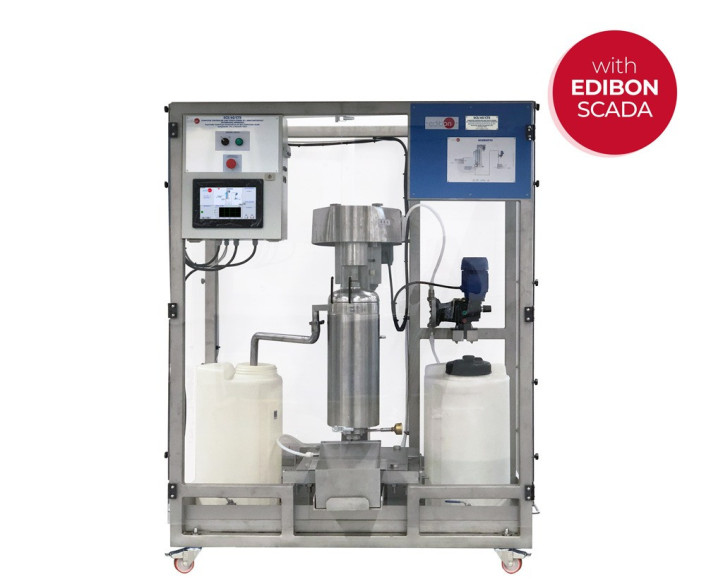

The unit consists of a tubular centrifuge, a pump and two storage tanks.
The mixture is introduced into the feed tank and pumped to the tubular centrifuge. The mixture, which is subjected to the
spinning and centrifugal force of the cylinder, will tend to carry the heavier phase to the outside of the cylinder (to the walls).
The mixture without solid (lignin) is extracted through the upper part of the unit, by means of overflow and is stored in a tank.
This process is carried out at ambient conditions, because lignin at high temperatures behaves like a rubber and makes separation difficult.

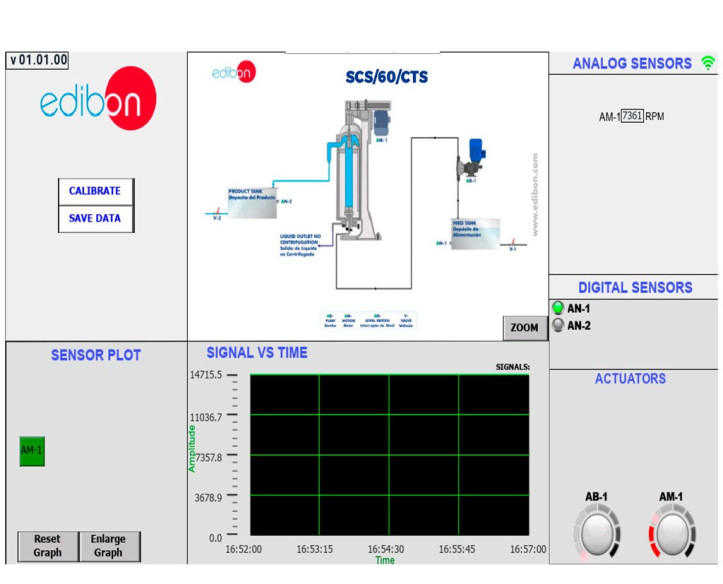

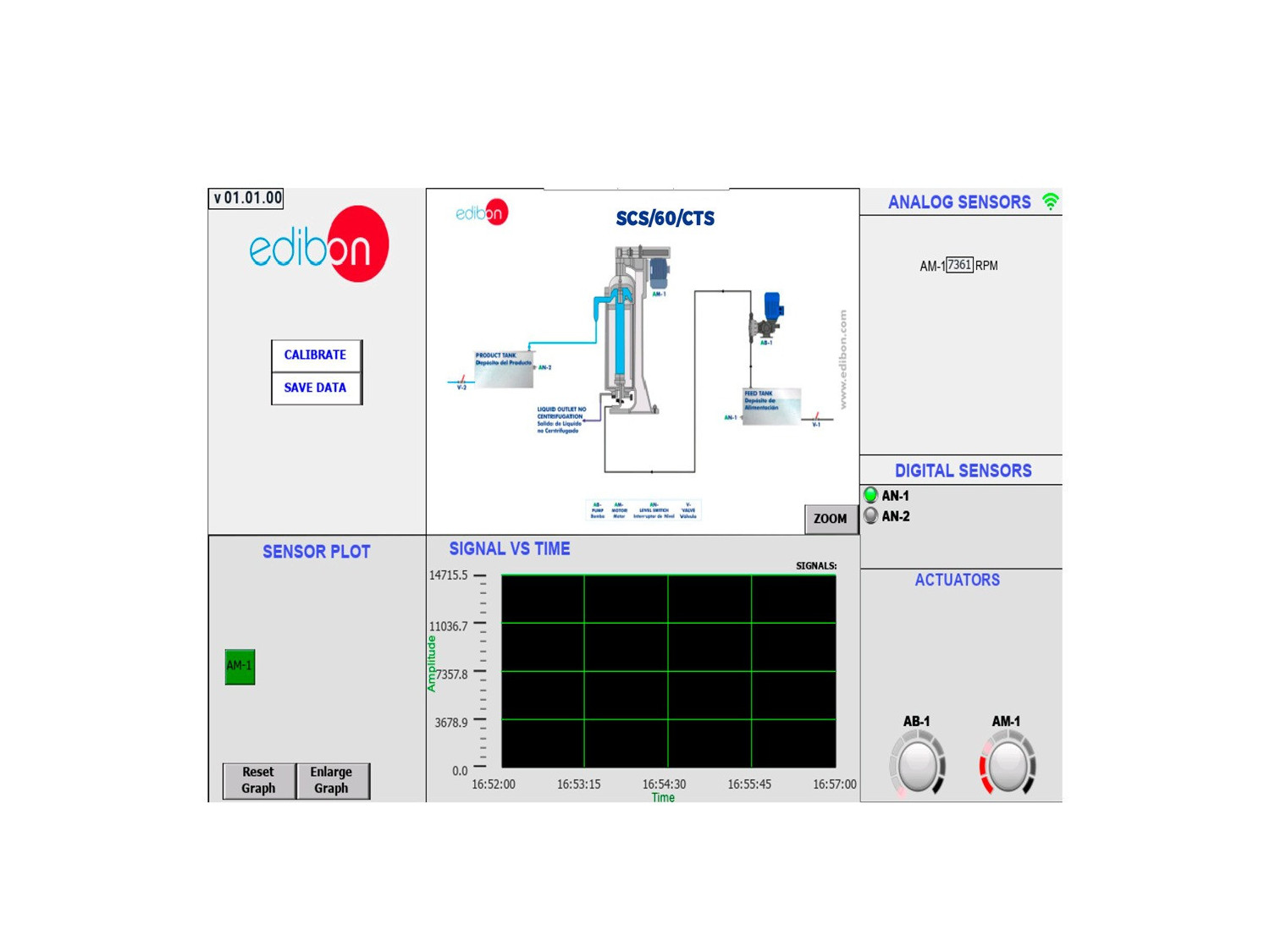

This Computer Controlled Unit is supplied with the EDIBON Computer Control System (SCADA), and includes: The unit itself + Computer Control, Data Acquisition and Data Management Software Packages, for controlling the process and all parameters involved in the process.
利用可能な類似の機器
11.1.11.- ろ過、 沈降および混合
EFLPC
The Computer Controlled Deep Bed Filter Unit, "EFLPC", allows us to filter a fluid in order to eliminate particles in suspension, to have it in more adequate conditions for its subsequent use or consumption.The pump takes raw water from one of the...
11.1.11.- ろ過、 沈降および混合
EFLP
深層ろ過実験装置
The Deep Bed Filter Unit, "EFLP", allows us to filter a fluid in order to eliminate particles in suspension, to have it in more adequate conditions for its subsequent use or consumption.The pump takes raw water from one of the reservoirs of the...
11.1.11.- ろ過、 沈降および混合
PFTC
コンピューター制御ドラムセルフィルター

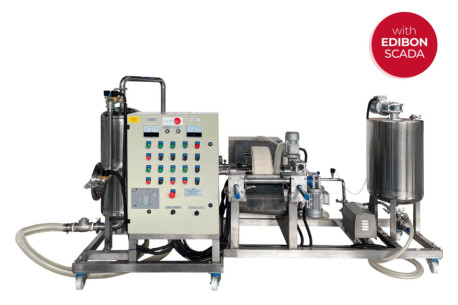

The Computer Controlled Drum Cell Filter, "PFTC", is a unit designed to observe the operation of a filtering drum that acts on a liquid with suspended solids. This drum cell filter allows investigate the filtration of multiple solutions with...
