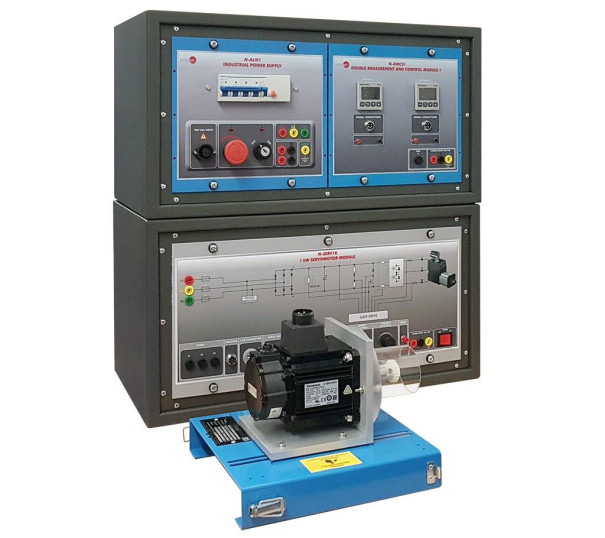

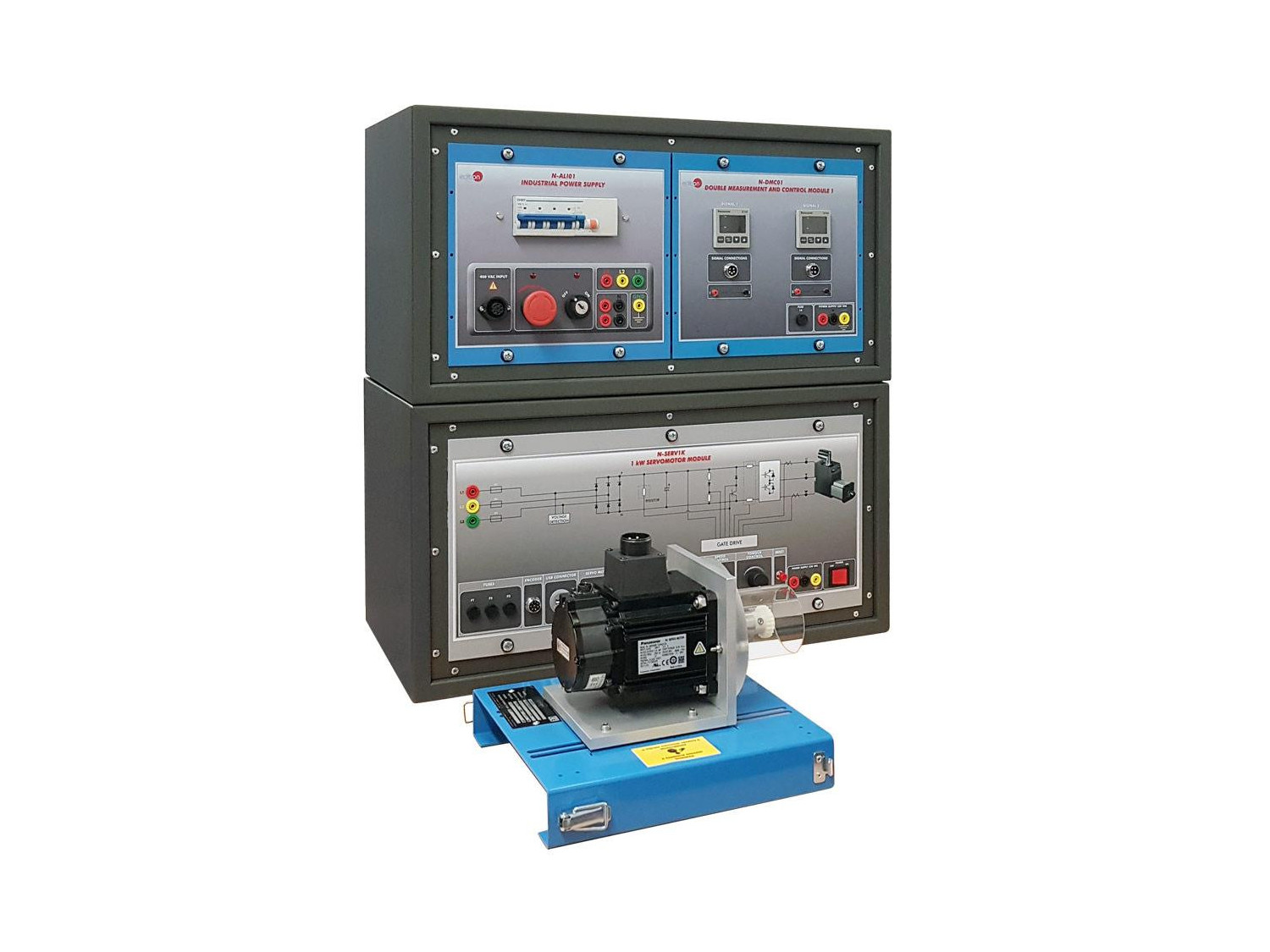

The 1 kW AC Industrial Servomotor Application, "AEL-SERIN/CA-1KW", has been designed to study the working principle and control of industrial servomotors.
関連ニュース
概要
The 1 kW AC Industrial Servomotor Application, "AEL-SERIN/CA-1KW", has been designed to study the working principle and control of industrial servomotors.
The "AEL-SERIN/CA-1KW" allows the user to acquire knowlegde and experience in the control of the mechanical parameters of a servomotor.For this purpose, the application includes a servomotor along with its control module and two digital meters to monitor speed and torque values throughout the whole process.
In addition, once this knowledge has been acquired the user will be able, if desired, to carry out manual tests for rotating electrical machines with the goal of setting different operating conditions to obtain its characteristic curves and parameters.
In order to carry out advanced electrodynamic tests for rotating electrical machines, it is recommended to acquire the Control and Data Acquisition System Software for Electrical Machines, "EM-SCADA". This advanced software allows monitoring waveforms for voltage, current, torque and speed for the in-depth study of the electrical machines to be tested.
演習と指導の慣行
マニュアルに含まれるガイド付き実習
- Wiring and starting up the AC servomotor.
- Start/Stop operations of the servomotor.
- Speed control operation.
- Torque control operation.
- Warnings through alarm.
より実用的な練習をして、ユニットを完成させる
Additional practical possibilities with the additional recommended elements:
- Real time torque monitoring (EM-SCADA is required).
- Real time speed monitoring (EM-SCADA is required).
- Real time monitoring of current and voltage RMS values (EM-SCADA is required).
- Real time monitoring of current and voltage waveforms (EM-SCADA is required).
- Advanced electrodynamic study of the machine (EM-SCADA is required).
- Automatic braking test and monitoring of the results (EM-SCADA is required).
- Obtaining the characteristic curves of the machine (torquespeed, torque-current, etc) (EM-SCADA is required).
- Saving and comparison of results (EM-SCADA is required).
- Start-up of the electrical machine coupled to the servomotor (AEL-DCEMA and/or AEL-ACEM is required (at least one)).
- Introducing the braking torque (AEL-DCEMA and/or AEL-ACEM is required (at least one)).
- Monitoring of the electrical and mechanical parameters of the rotating machine under different operating conditions (AEL-DCEMA and/or AEL-ACEM is required (at least one)).
- Electrodynamic study of the machine (AEL-DCEMA and/or AEL-ACEM is required (at least one)).
- Obtaining the characteristic curves of the machine by means of manually controlled braking tests (torque-speed, torquecurrent, etc.) (AEL-DCEMA and/or AEL-ACEM is required (at least one)).
