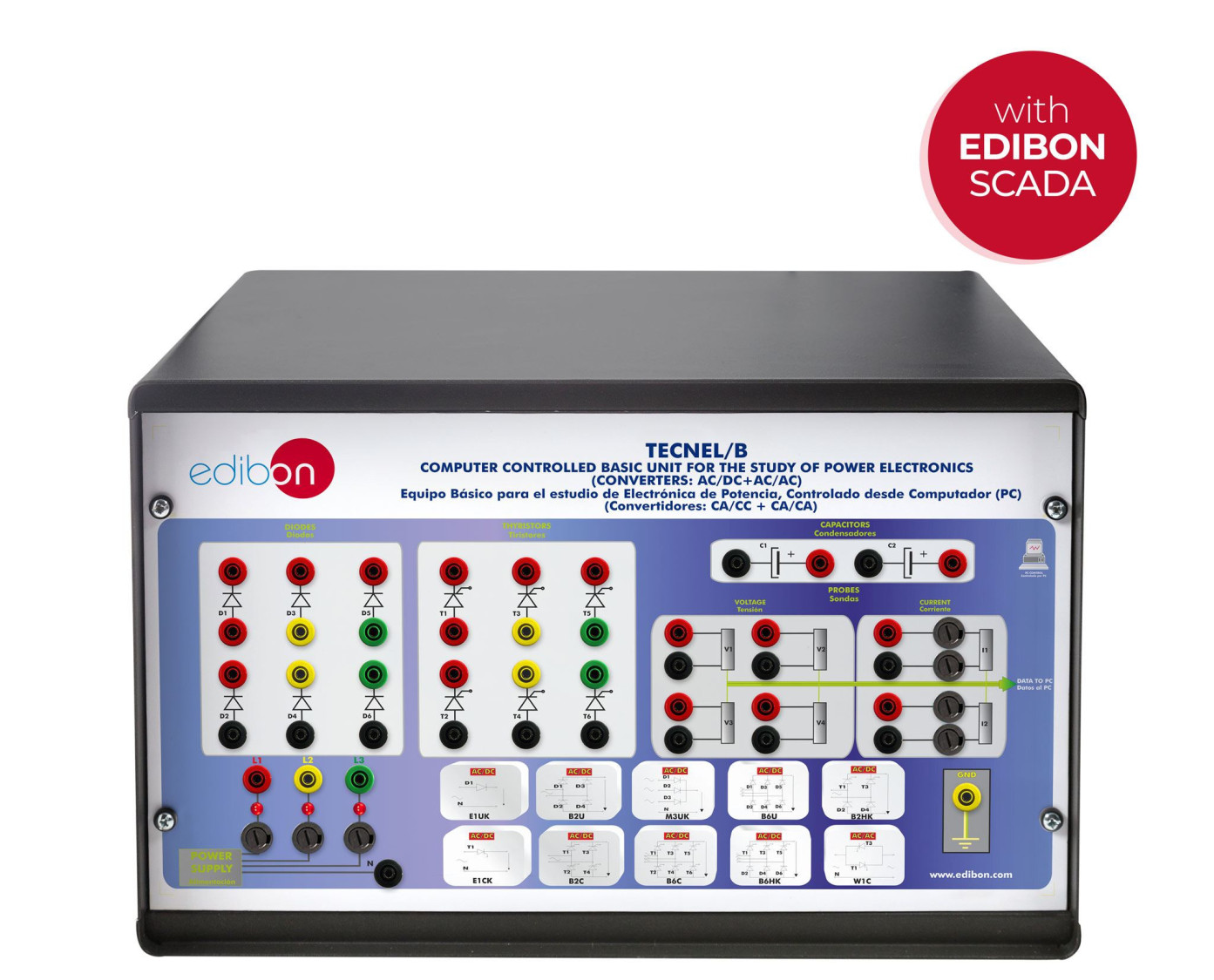

The TECNEL/B is a Unit with Computer Control and Data Acquisition System designed to study the basis of Power Electronics.
関連ニュース
概要

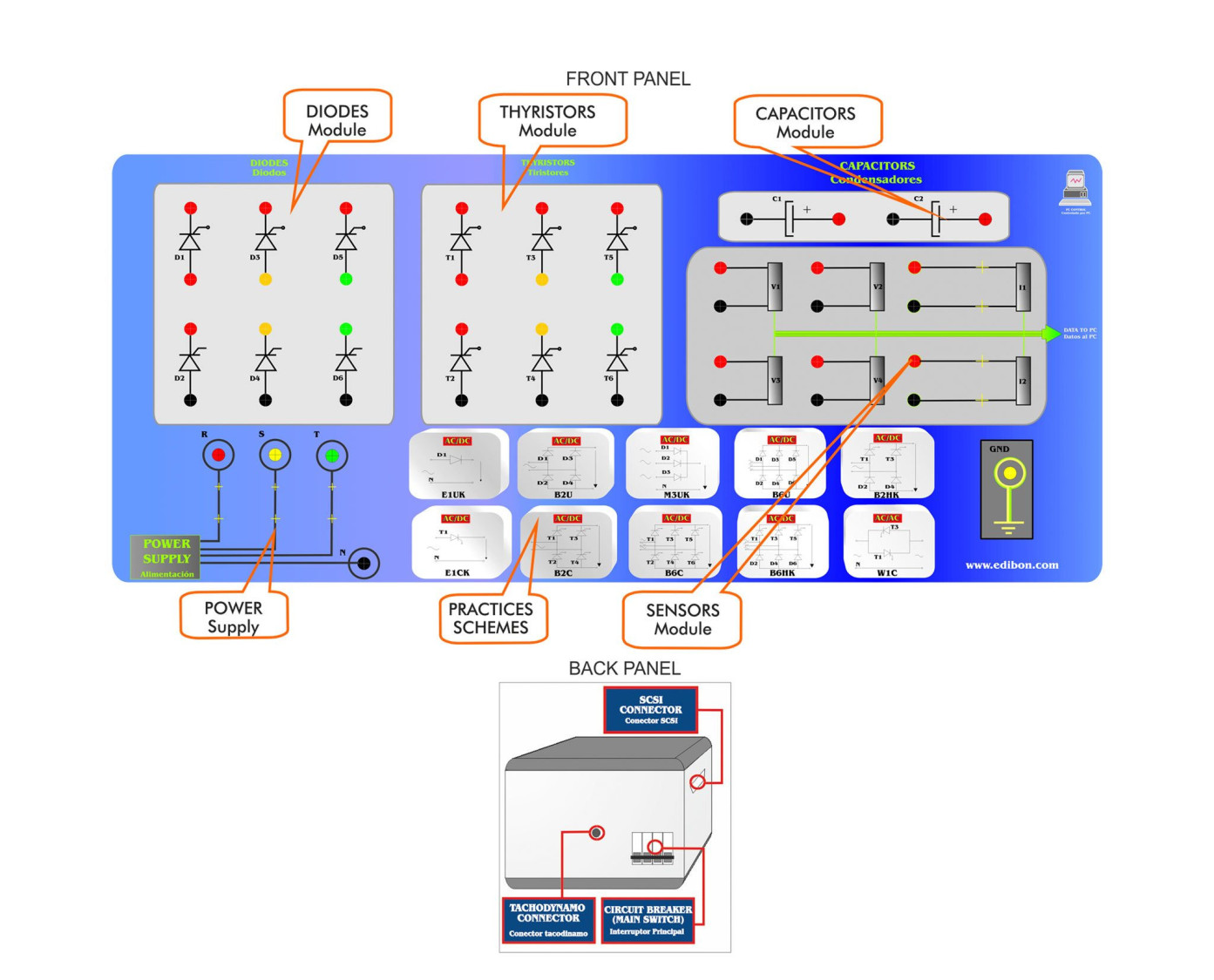

The Computer Controlled Basic Teaching Unit for the Study of Power Electronics (no IGBTS). (Converters: AC/DC+AC/AC), "TECNEL/B", is a unit with Computer Control and Data Acquisition System designed to study the basis of Power Electronics. It allows students to study AC/DC, AC/AC converters.

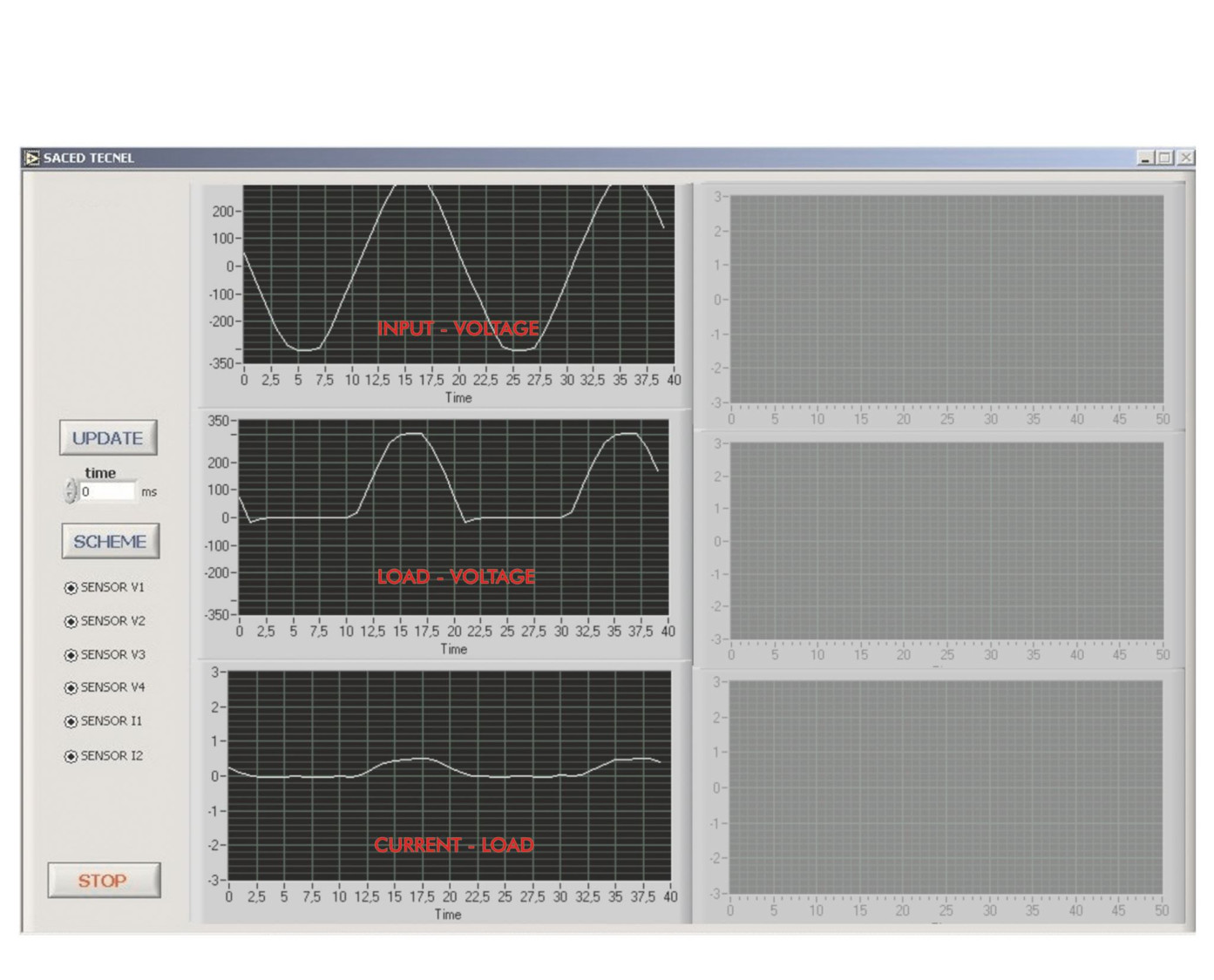

This Computer Controlled Unit is supplied with the EDIBON Computer Control System (SCADA), and includes: The unit itself + a Data Acquisition Board + Computer Control, Data Acquisition and Data Management Software Packages, for controlling the process and all parameters involved in the process.
演習と指導の慣行
マニュアルに含まれるガイド付き実習
- Single phase half-wave rectifier with load R.
- Single phase half-wave rectifier with load R-L.
- Single-phase half-wave rectifier with R-L load with free wheeling diode (FWD).
- Single-phase full-wave rectifier.
- Three-phase half-wave uncontrolled rectifier.
- Three-phase full-wave uncontrolled rectifier.
- Single-phase half-wave controlled rectifier.
- Single-phase full-wave controlled rectifier.
- Single-phase full-wave controlled rectifier with a DC motor.
- Three-phase full-wave completely controlled.
- Single-phase semi-controlled rectifier.
- Three-phase full-wave semi-controlled rectifier.
- Alternating regulators: R and R-L load.
より実用的な練習をして、ユニットを完成させる
- Many students view results simultaneously. To view all results in real time in the classroom by means of a projector or an electronic whiteboard.
- Open Control, Multicontrol and Real Time Control. This unit allows intrinsically and/or extrinsically to change the span, gains, proportional, integral, derivative parameters, etc. in real time.
- The Computer Control System with SCADA allows a real industrial simulation.
- This unit is totally safe as uses mechanical, electrical/electronic, and software safety devices.
- This unit can be used for doing applied research.
- This unit can be used for giving training courses to Industries even to other Technical Education Institutions.
- Several other exercises can be done and designed by the user.
