The Computer Controlled Power Plants Regulation and Control Unit, "SCE", has been designed by EDIBON to study the modeling and simulation process of power generation in a plant, as well as to validate the model’s behavior against the real system in a safe and controlled way.
扩展
化验室
相關新聞
一般說明
The Computer Controlled Power Plants Regulation and Control Unit, "SCE", has been designed by EDIBON to simulate and analyze the behavior of a power plant through two operating modes.
- Real mode: allows the analysis and data acquisition of the hardware under steadystate or transient conditions.
- Simulated mode: enables comparison with real operating data from power plants.
This dual functionality allows students and instructors to work with both realistic conditions and predefined models, facilitating a comprehensive study of regulation and control dynamics in electric power systems.

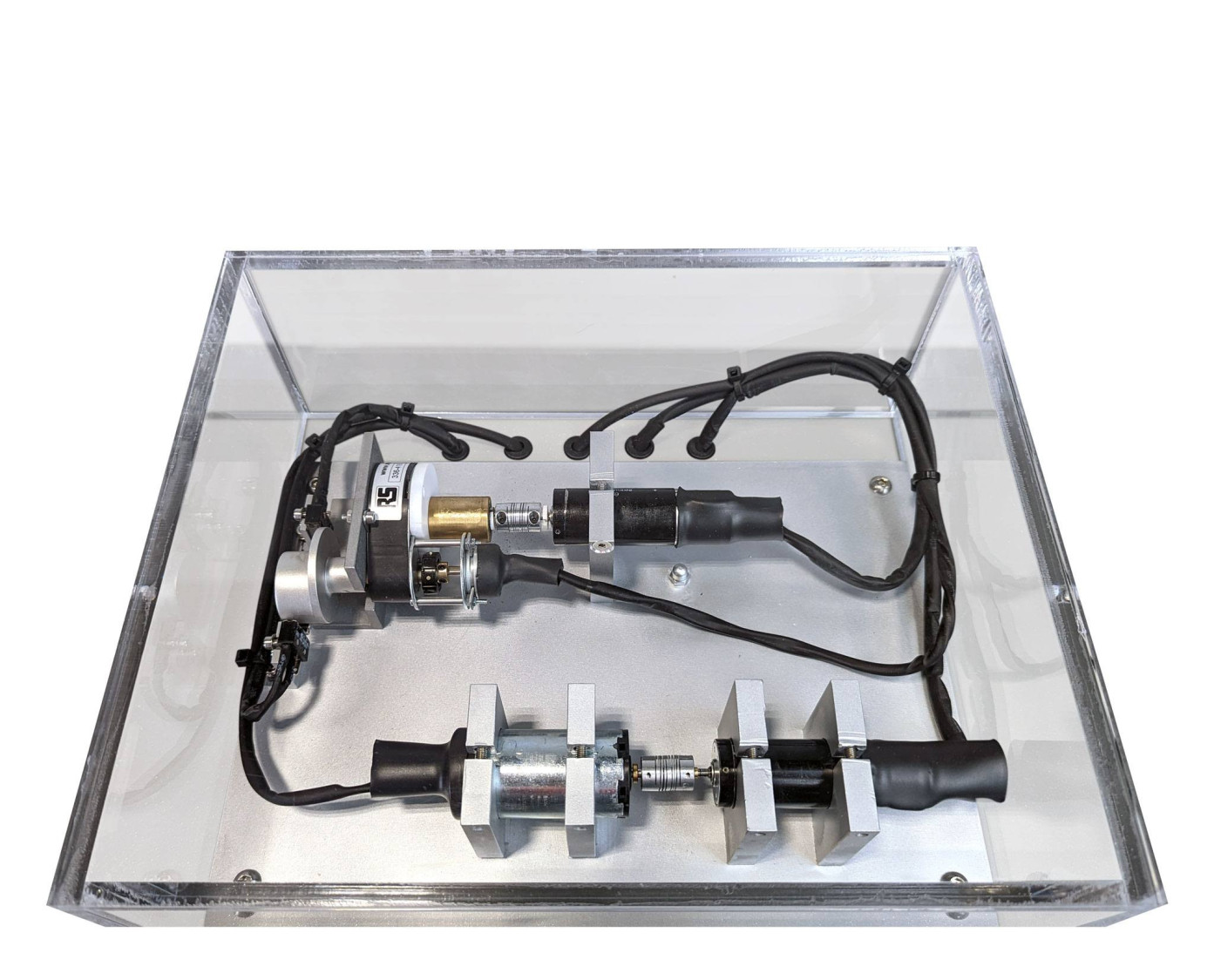

- Gate subsystem: Located at the top of the unit, it consists of a gate controlled by a motor. It regulates the simulated flow by adjusting the gate opening. A tachodynamo measures the motor speed, and a potentiometer records the gate position. The user can monitor key variables such as the control signal, motor speed, and gate position, simulating flow regulation in a real power plant. This subsystem is designed to directly control the flow toward the second subsystem, allowing analysis of its impact on power generation.
- Turbine-generator subsystem: Located at the bottom of the unit, this subsystem simulates the behavior of a turbine coupled to a generator. It can be connected to the gate subsystem via a switch that simulates their coupling. In this mode, the turbine speed depends on the gate opening, which in turn influences the generated electrical power. The subsystem can also operate independently for direct control analysis. It includes three types of electrical loads—resistive, inductive, and capacitive—each of which can be enabled or disabled via switches, allowing the study of system response under various load scenarios.

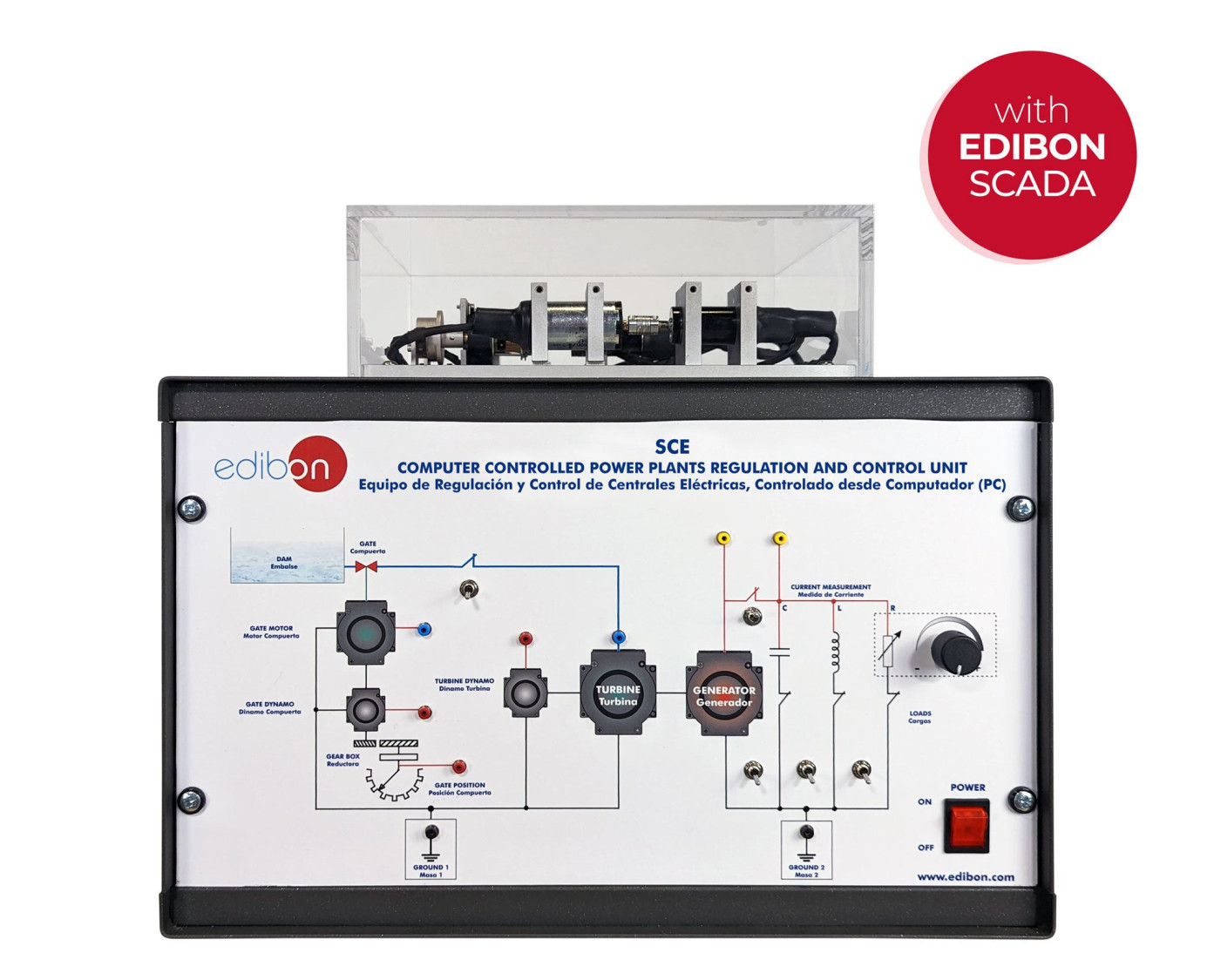

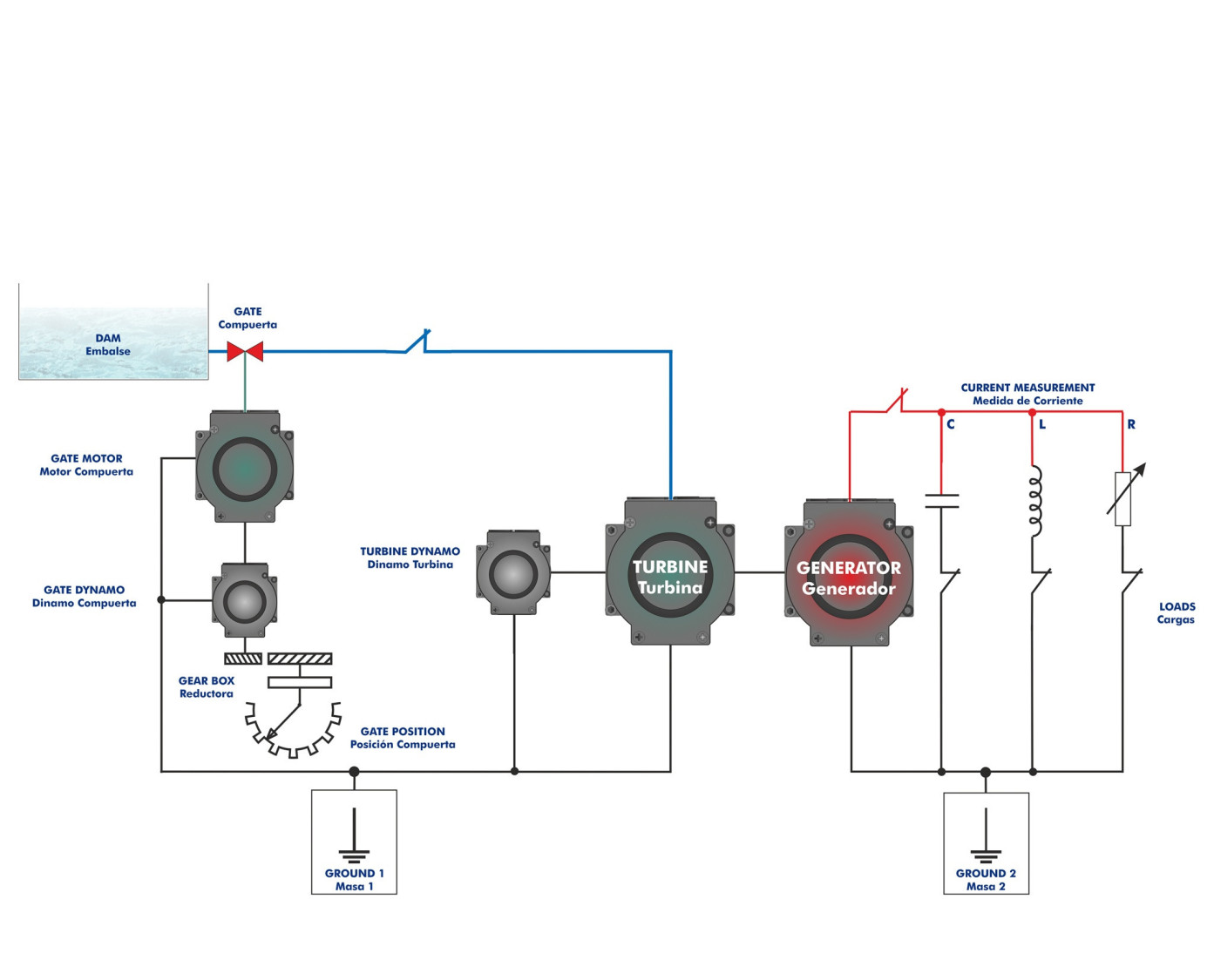

The front panel includes a unit diagram, test terminals for direct measurements, and switches to modify system operation. This setup supports both theoretical and practical analysis. The unit allows measurement of voltage, current, and turbine speed in an interactive and safe environment, with internally connected ground terminals across both subsystems.

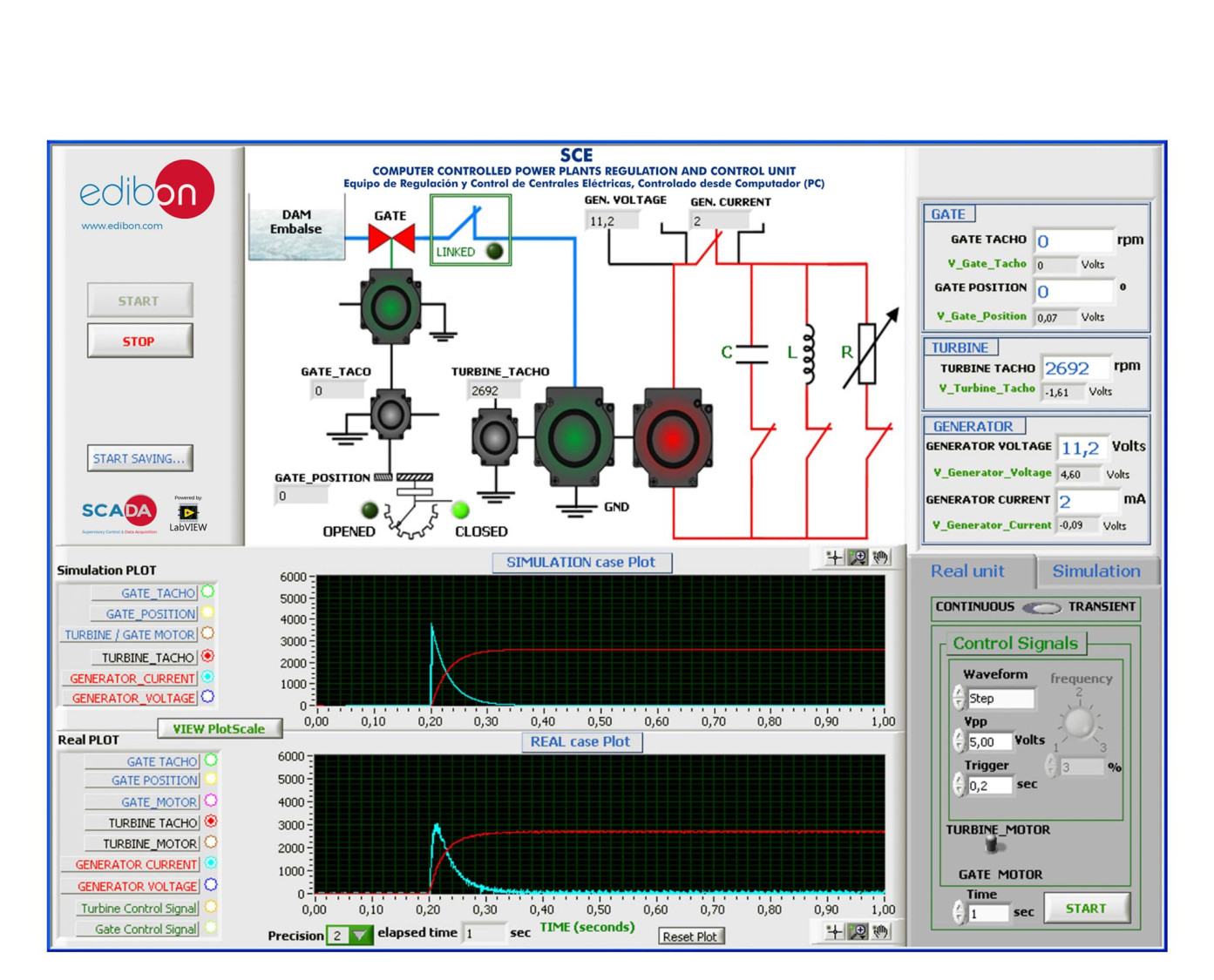

This Computer Controlled Unit is supplied with the EDIBON Computer Control System (SCADA), and includes: The unit itself + a Data Acquisition Board + Computer Control, Data Acquisition and Data Management Software Packages, for controlling the process and all parameters involved in the process.
練習和指導練習
手册中包含的指导实践练习
- Comparison of the real gate motor response vs. the simulated gate motor response under control signals.
- Acquisition of the transient response of the gate and turbine motors.
- Acquisition of the simulated transient response of the gate and turbine motors.
- Comparison of the real turbine motor vs. the simulated motor under resistive, capacitive, and inductive loads.
- Comparison of sinusoidal, square, and triangular control signals on the gate motor (real vs. simulated).
- Step response comparison between real and simulated motors (gate or turbine).
与该单位进行更多实际操作
- Modelization of the motor as a standard motor.
- Modelization of the motor with the constants corrections of the mathematical model.
- Calculation of the dynamos speed constant.
- Obtaining of the transient responses of the gate motor.
- Obtaining of the transient response of the turbine motor.
- Obtaining of the transient response of the gate simulated motor.
- Obtaining of the transient response of the turbine simulated motor.
- Comparative analysis of the response of the gate real motor vs the response of the gate simulated motor for continuous (manually from the computer) control signals.
- Comparative analysis of the response of the gate real motor vs the response of the gate simulated motor for sinusoidal control signals.
- Comparative analysis of the response of the gate real motor vs the response of the gate simulated motor for square control signals.
- Comparative analysis of the response of the gate real motor vs the response of the gate simulated motor for triangular control signals.
- Comparative analysis of step response between real motor and simulated motor (gate or turbine).
Other possibilities to be done with this unit:
- Many students view results simultaneously. To view all results in real time in the classroom by means of a projector or an electronic whiteboard.
- Open Control, Multicontrol and Real Time Control. This unit allows intrinsically and/or extrinsically to change the span, gains, proportional, integral, derivative parameters, etc, in real time.
- The Computer Control System with SCADA allows a real industrial simulation.
- This unit is totally safe as uses mechanical, electrical/electronic, and software safety devices.
- This unit can be used for doing applied research.
- This unit can be used for giving training courses to Industries even to other Technical Education Institutions.
- Several other exercises can be done and designed by the user.
